Description

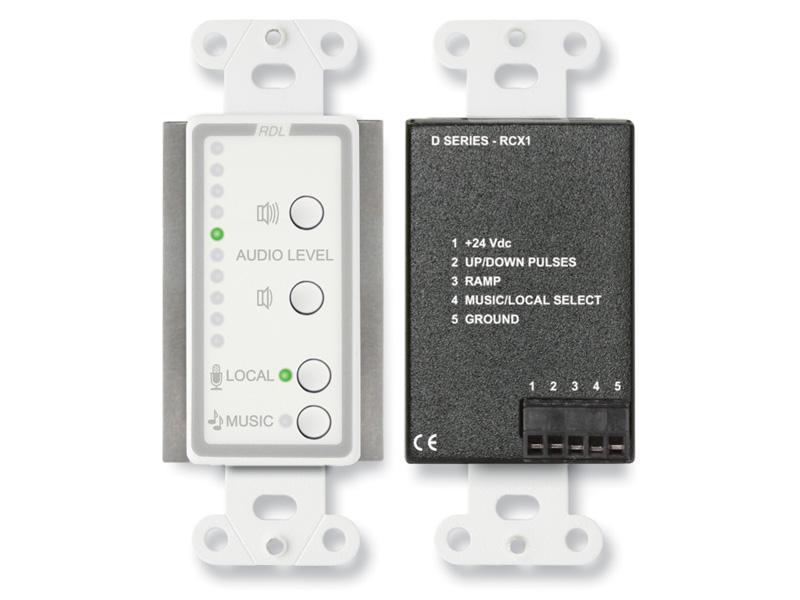

The D-RCX1 Decora wall control provides simple room-level source selection and volume control for RDL RCX series room combiners. It is designed to mount in an RDL WB-1U wall box and presents a clean Decora style steel faceplate. The control is optimized for local user access to source and level adjustments.
The control features dedicated pushbuttons for MUSIC and LOCAL selection plus up/down pushbuttons for level adjustment. An integrated LED level readout gives clear visual feedback of relative output level. Long-life pushbuttons ensure reliable operation in high-traffic rooms.
Technically, the unit implements pushbutton up/down volume control and pushbutton source selection between music and local microphone or line inputs. Multiple RCX-1 controls may be connected within a single room to provide distributed control points. The assembly uses an all-steel panel and rear enclosure for durable field use.
Connectivity supports MUSIC source selection and LOCAL selection for microphones and/or line-level inputs as used with RCX room combiners and local audio systems. Multiple controls on a room bus allow synchronized control behavior. The D-RCX1 installs into standard RDL WB-1U wall boxes for straightforward integration.
Typical applications include classrooms, meeting rooms, retail areas, and houses of worship where room-level source selection and volume control are required. The simple control layout minimizes user training and streamlines operation across spaces. Its Decora appearance blends with common wallplate aesthetics.
Installation is straightforward – the unit mounts in an RDL WB-1U wall box and connects to the RCX control bus and audio system wiring. The rugged steel panel and rear enclosure provide mechanical protection and consistent alignment. Overall the D-RCX1 delivers dependable source select and level control in a compact Decora form factor.
