Description

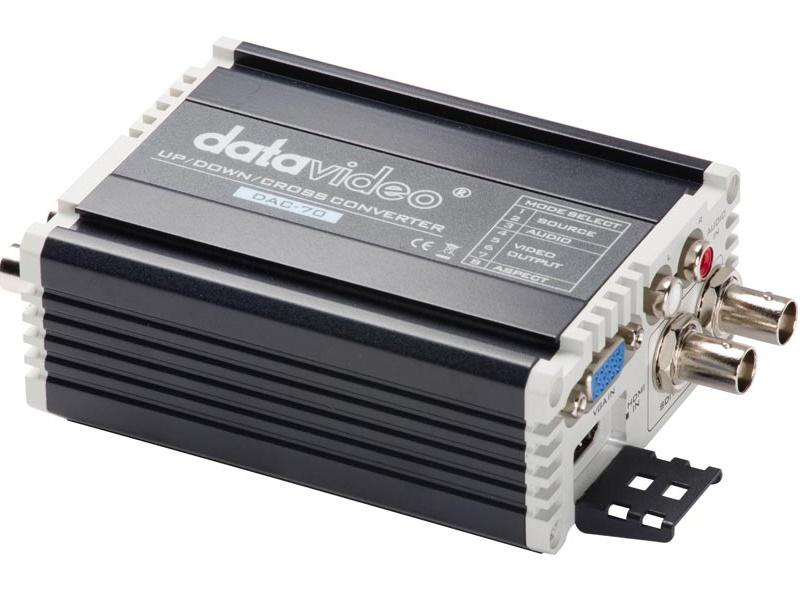

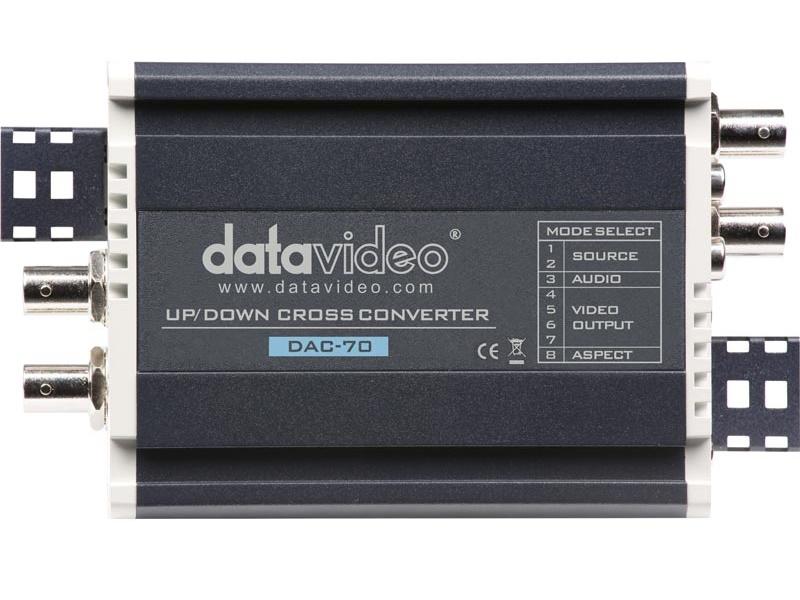

Download Manual Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.
Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.
Features:
- 3G/HD/SD Up/Down/Cross convert
- Audio/HDMI/SDI/VGA input
- 3G/HD/SD SDI and HDMI output
- Can be rackmounted using optional RMK-2 2RU Rack solution
- DC 12V, 3.6 watts

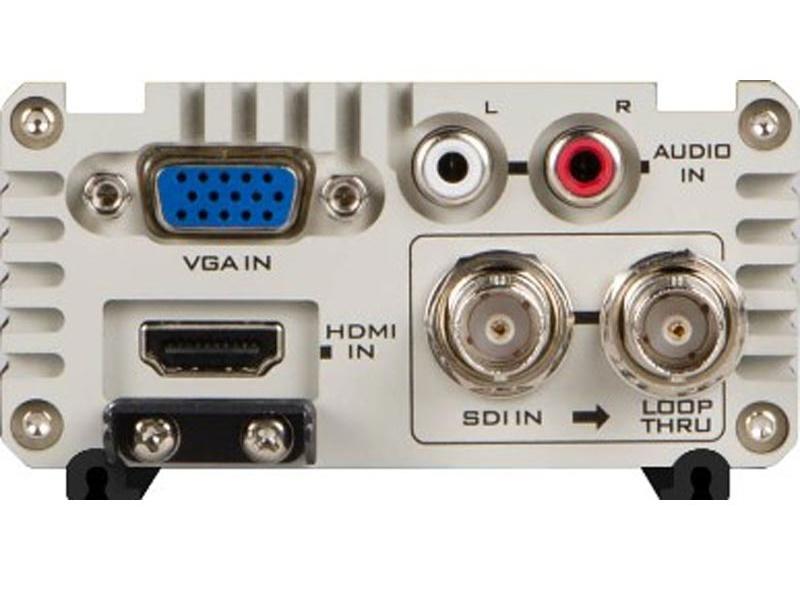

Video Inputs (VGA x 1, HDMI x 1 , HD/SD-SDI x 1)
- SDI (YUV): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/ 29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i
- HDMI (YUV / RGB): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p, 576p, 480i, 576i, 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz
- VGA (RGB): 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz, 1280×720@60Hz, 1920×1080@60Hz

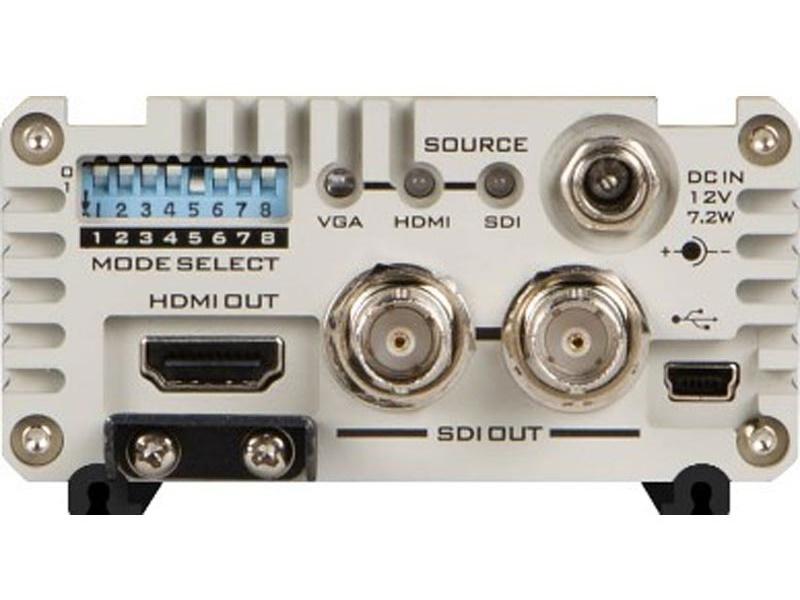

Video Outputs (SDI x 2, HDMI x 1, SDI Loop thru BNC (front panel))
- SDI / HDMI : 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080i60/ 59.94/50, 720p60/59.94/50, 525i, 625i
Audio Format (Input)
- Analog Audio L/R : stereo audio
- SDI / HDMI embedded audio up to 8CH, 48KHz, PCM audio
- HDMI embedded audio up to 8CH, 44.1/48/96KHz, PCM audio
Audio Format (Output)
- SDI embedded audio up to 8CH, 48KHz, PCM audio
- HDMI embedded audio up to 8CH, 48KHz, PCM audio
Operating Humidity
- 10% to 80%
* USB interface for firmware upgrade
