Description

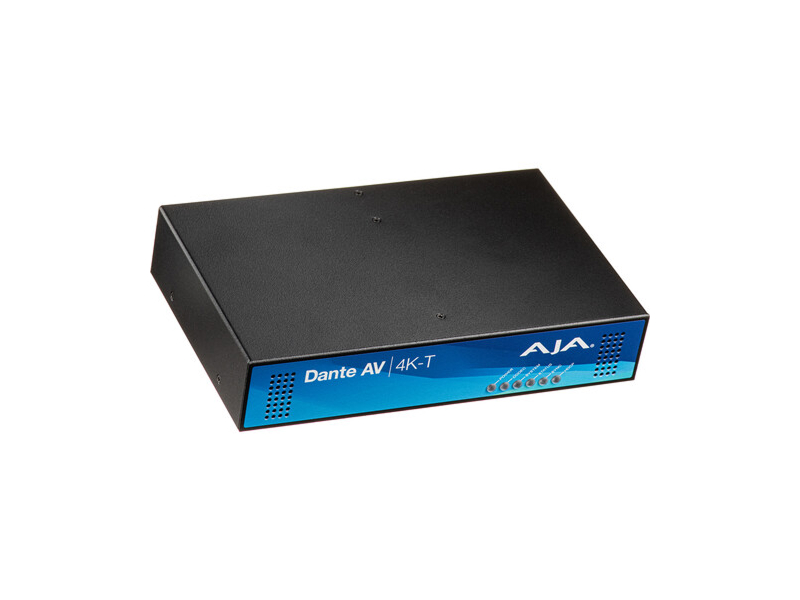

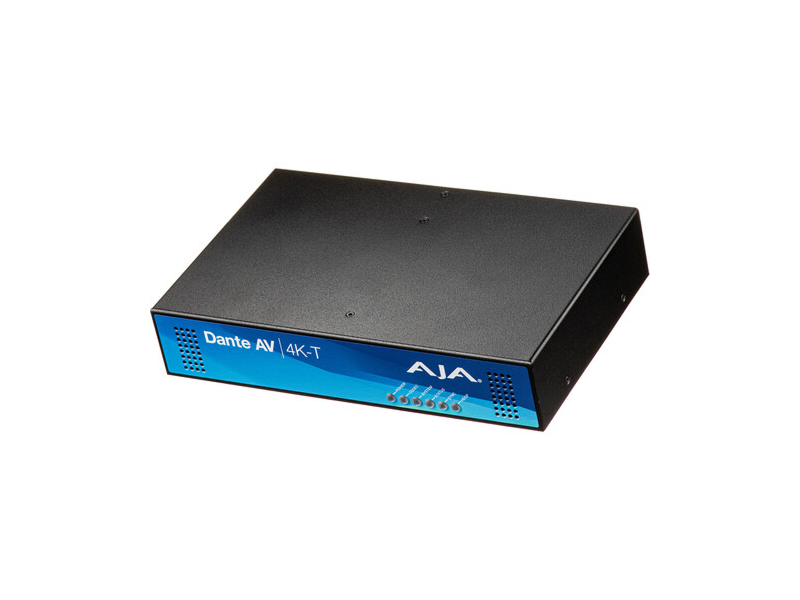

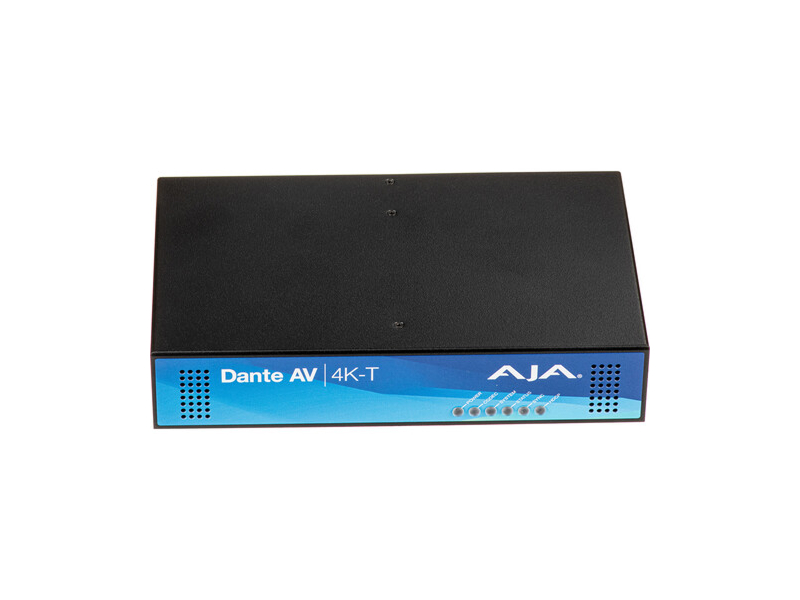

The AJA Dante AV Ultra 12G-SDI / HDMI 2.0 4K60 Transmitter, model DANTE-AV-4K-T-2, is designed to encode professional video, audio, USB, IR, and serial control for transport over a standard Gigabit Ethernet network. It supports Dante AV Ultra delivery up to UHD 4K60 with low 0.5-frame latency, making it well suited to AV-over-IP systems that need responsive performance.
With one 12G-SDI input and one HDMI 2.0 input, this transmitter accepts broadcast and presentation sources at resolutions up to 4096 x 2160 and 3840 x 2160 at up to 60 fps. Embedded 8-channel PCM audio at 48 kHz can be carried across the network, while Dante Controller compatibility provides centralized routing for video, audio, KVM, VISCA, and IR paths.
AJA built DANTE-AV-4K-T-2 for installations where efficient cabling and dependable control matter. PoE+ support reduces local power requirements, while RS-422, USB, IR, reference output, and analog audio output help integrate the unit into conference rooms, lecture spaces, live event systems, and other professional networked video environments.
Key Features:- Dante AV Ultra Transport: Encodes video and audio for 1 GigE network distribution up to UHD 4K60 with 0.5-frame latency, helping maintain fast source-to-display response in AV-over-IP workflows.
- 12G-SDI and HDMI 2.0 Inputs: Accepts professional broadcast and presentation sources, supporting formats up to 4096 x 2160 and 3840 x 2160 at up to 60 fps for mixed-system integration.
- 8-Channel Embedded PCM Audio: Carries up to 8 channels of 48 kHz embedded audio from SDI or HDMI sources, allowing video and audio routing across the Dante network from a single endpoint.
- PoE+ and 12 VDC Power Options: Supports PoE+ 802.3at through the primary RJ45 port or local 12 VDC input, giving installers more flexibility when planning rack, wall, or furniture-mounted deployments.

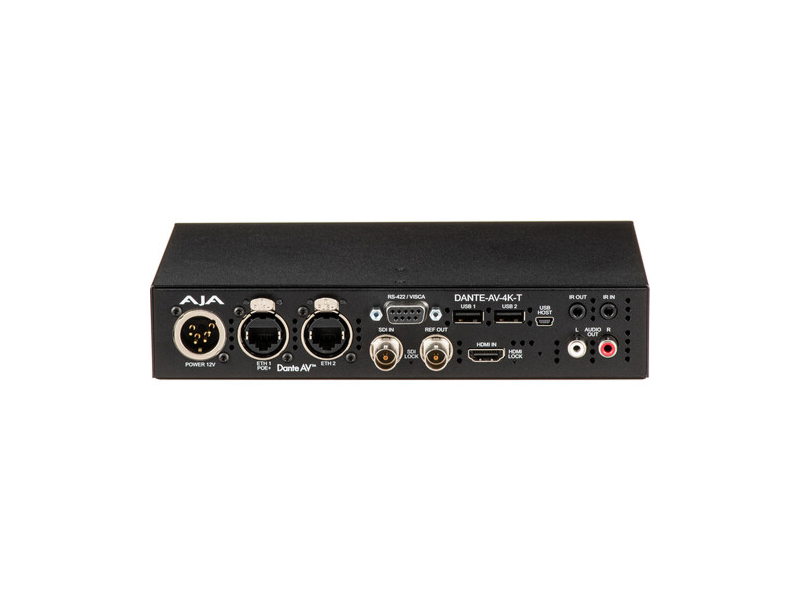

- USB, IR, and RS-422 Connectivity: Adds control and peripheral extension with two USB-A 2.0 ports, mini-USB host, 3.5 mm IR input/output, and DB-9 RS-422 for integrated room control and device communication.
- HDCP 2.2 Support: Enables handling of protected HDMI content where required, helping the transmitter fit more easily into commercial presentation and conferencing systems.
- Dante Controller Compatibility: Works with Windows and macOS Dante Controller software for network-based routing and system management, simplifying endpoint assignment and signal distribution.
- Conference Room AV-over-IP: Transmit HDMI or 12G-SDI sources over a Gigabit network with USB and control extension for connected meeting spaces.
- Lecture Hall Distribution: Route presenter video and embedded multichannel audio across campus or building networks to remote displays and recording endpoints.
- Live Event Technical Systems: Encode 4K60 camera or playback feeds for low-latency transport in event production environments using standard Ethernet infrastructure.
- Broadcast and Control Integration: Combine SDI video, RS-422 serial control, IR, and reference connectivity in facilities that need centralized routing and device management.
