Description

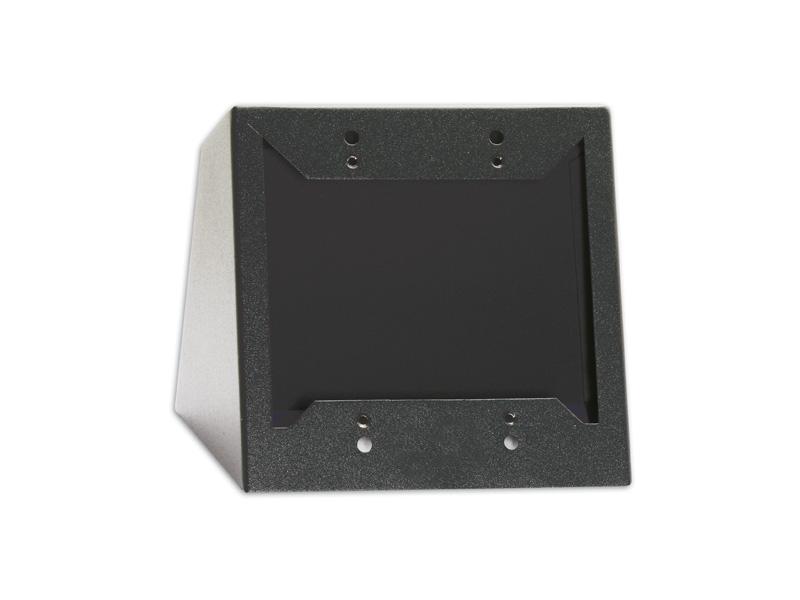

The DC-2B desktop chassis provides a compact enclosure to house one or two Decora-style modules. It is designed to accept Decora-format remote controls and connector plates and secures them in a low-profile desktop or wall-mounted installation. The chassis is finished in black to match AV furniture and control surfaces.
This chassis includes a precision mounting plate that permits tabletop mounting or attachment to a vertical surface such as a cabinet or wall. Once the mounting plate is secured the chassis slides into a locked position and is fastened with screws for added security. Model suffixes identify finish options: W for white, B for black, G for gray to coordinate with stainless controls and plates.
Construction is welded steel with a durable powder coated finish that resists wear and abrasion. The robust metal body provides reliable mechanical protection for installed control modules and connector plates. The product ships with a listed weight of l.3 lbs and is classified under tariff code 8518.90.3000.
The DC-2B accepts standard Decora-style devices including RDL remote controls and Decora connector plates. It supports single-module and dual-module Decora assemblies and maintains the standard faceplate footprint used in professional AV installations. This makes it compatible with a broad range of Decora-format accessories and panels.
Typical applications include conference room tables, lecterns, credenzas, equipment cabinets and shallow wall pockets where a neat finished appearance is required. It is also well suited for broadcast and studio environments where secure mounting and clean signal panel presentation are important. The chassis helps centralize control and connector placement while maintaining an unobtrusive profile.
Installation is straightforward – mount the included plate to the chosen surface, position the chassis and slide it into the locked orientation, then secure with the supplied screws. The welded-steel construction and powder coat finish provide long-term durability in commercial AV environments. Color options allow visual coordination with existing control hardware and room finishes.
