Description

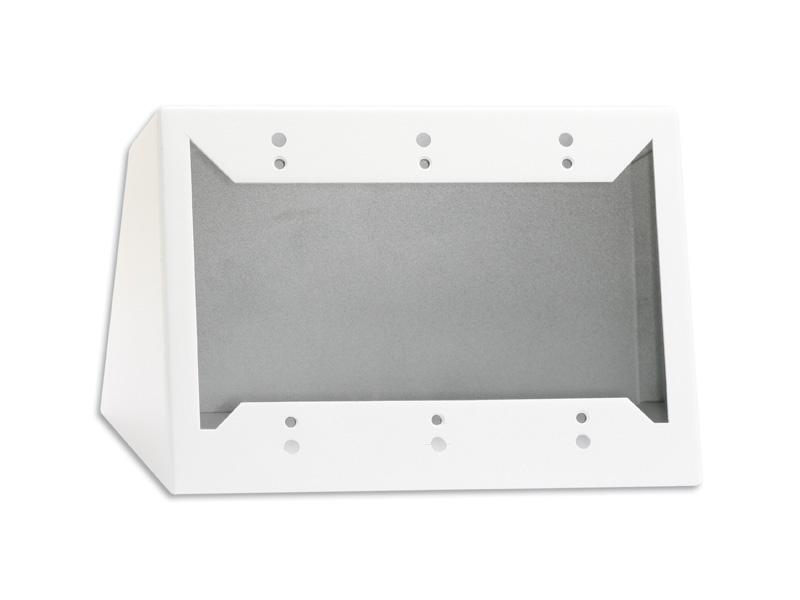

The DC-3W is a triple-capacity desktop and wall chassis designed to accept one, two or three Decora-style modules. It provides a compact, finished enclosure for remote controls and connector plates. The chassis is intended to present Decora-style products neatly on horizontal or vertical surfaces.
Key features include support for one to three Decora-style devices, an included mounting plate, and a slide-in locking chassis design. Model suffixes identify finish options as W white, B black, and G gray. The enclosure is compatible with common Decora-form remotes and connector plates used in AV installations.
Construction is welded steel with a high-quality powder coated finish to resist wear and appearance degradation. The unit ships with a mounting plate that secures to tabletops or vertical surfaces, then accepts the chassis which locks into position. The chassis is secured in place using standard screws for a reliable mechanical connection.
Connectivity is determined by the Decora-style modules installed in the chassis rather than the chassis itself. The DC-3W accepts Decora-form remotes, connector plates, and RDL Decora-style controls and plates. This makes the chassis compatible with a wide range of AV control and connector products that follow the Decora form factor.
Typical applications include conference room desktops, lecterns, control furniture, and wall-mounted control panels where a tidy, finished appearance is required. The chassis provides a clean installation option for integrators who need 1-3 Decora modules mounted together. It is also suitable for AV furniture and equipment cabinet fronts where compact, modular control access is needed.
Installation is straightforward – mount the included plate to the surface, position the chassis and slide it into the locked position, then secure with screws. The welded steel construction and powder coat finish deliver durable long-term service in installed environments. The DC-3W offers a simple, robust mounting solution for Decora-style AV controls and plates.
