Description

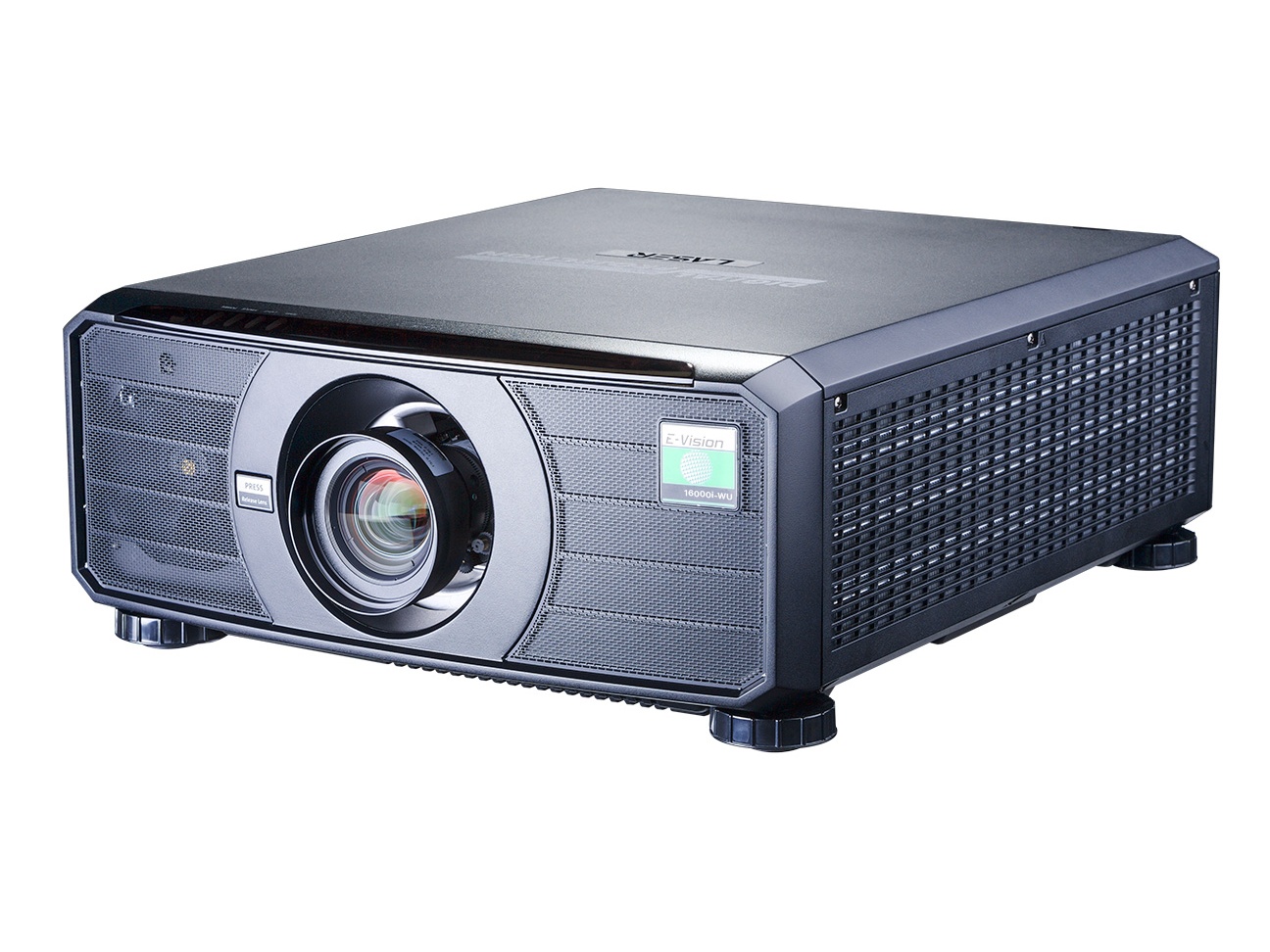

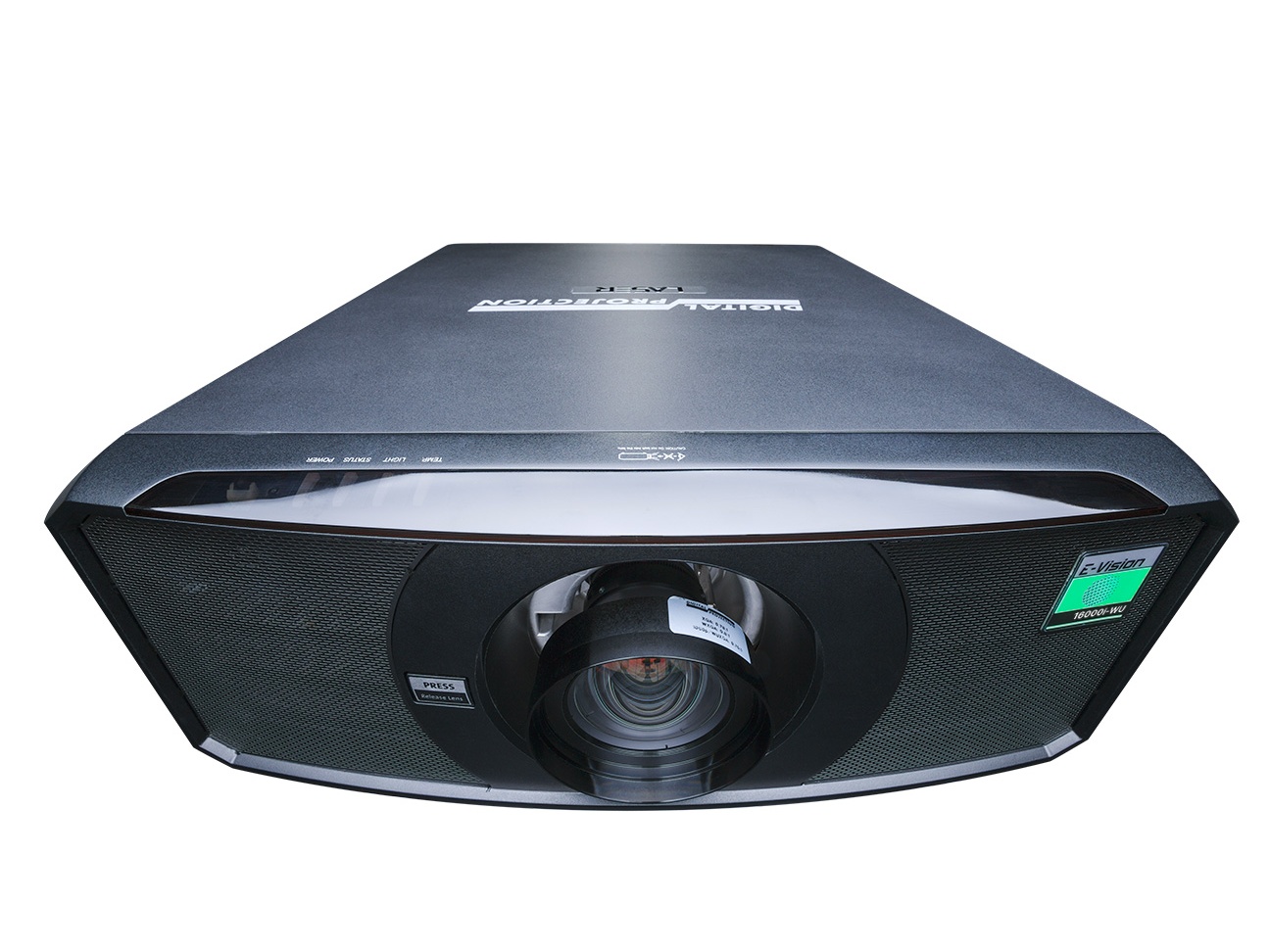

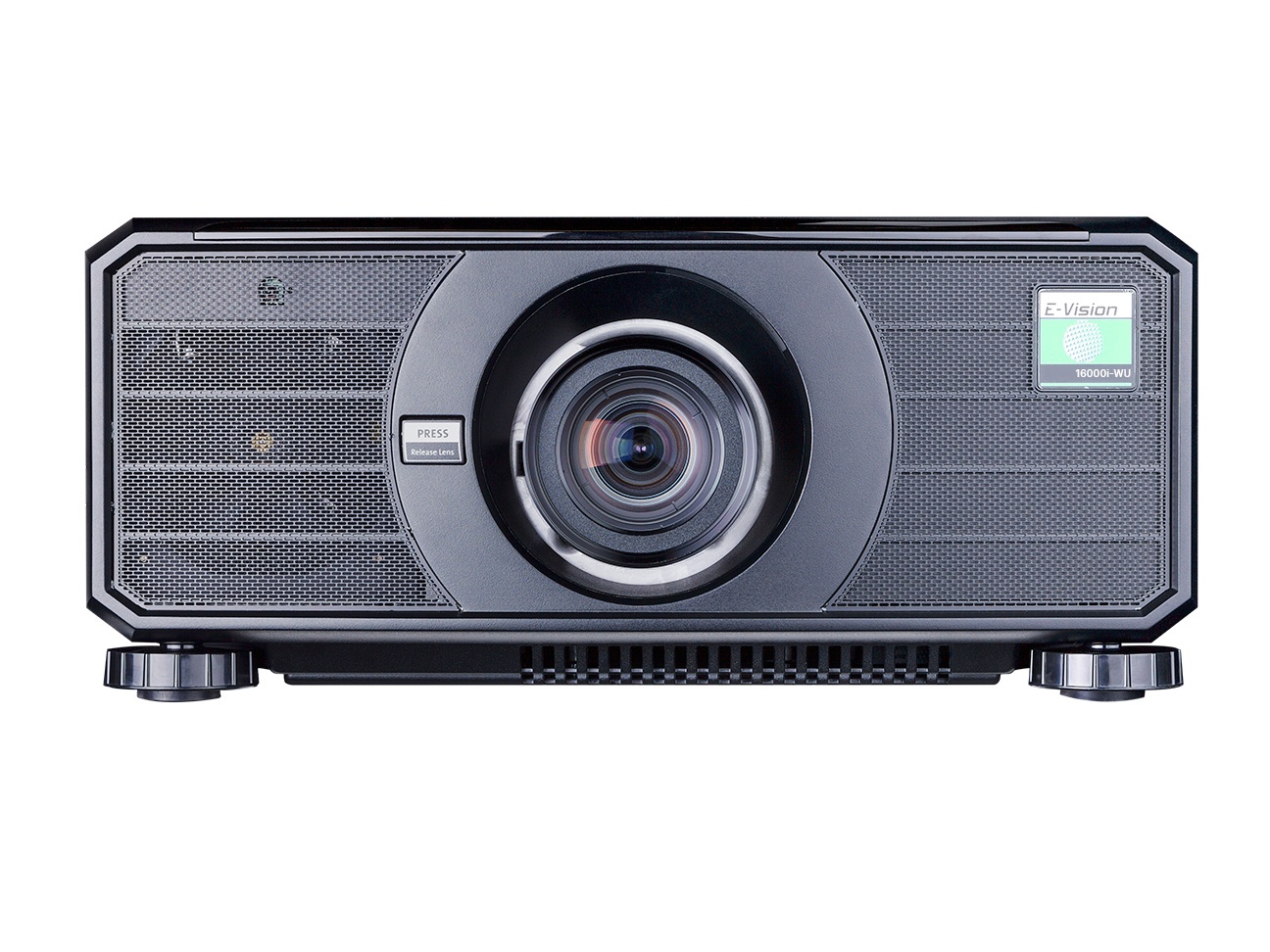

The E-Vision 10000i 4K+ RGB is a single-chip DLP projector that uses direct RGB laser illumination to deliver high-brightness, high-colour fidelity imagery. It produces 4K+ resolution through 4-way pixel shift and is engineered for professional live events, simulation, and permanent installations. The sealed optical path and liquid cooling provide consistent performance and reduced maintenance.
Key features include an all-new 0.8″ HEP DMD optimized for colour performance, native 1920 x 1200 DMD with 4-way pixel shift for 3840 x 2400 effective resolution, and RGB laser light source that removes colour-wheel artifacts. The projector offers 10,000 ISO / 9,000 ANSI lumens of output, HDR support, and a dynamic contrast ratio of 10,000:1. IP6x sealed optics prevent dust ingress and preserve light output and colour accuracy over time.
Technically the E-Vision 10000i 4K+ RGB supports 10-bit colour processing, DisplayPort 1.2, HDMI 2.0b, and 12G-SDI for high-bandwidth sources. It supports graphics up to WUXGA at 120Hz RB and WQXGA at 60Hz RB and video standards including 1080p and 4K-UHD at 60Hz. The projector also includes HDR handling, selectable dynamic black, DICOM simulation mode, and a range of aspect ratio and geometry correction options.
Connectivity options include dual HDMI 2.0b, dual DisplayPort 1.2, 12G SDI input and output, HDBaseT with Ethernet and RS232/IR control, and comprehensive control ports such as RS232, LAN, wired remote, and 12V trigger. The Nexus electronics platform provides advanced image processing and integrates with Projector Control II software for network monitoring and management. Art-Net support and source redundancy add reliability for critical events.
Typical applications for the E-Vision 10000i 4K+ RGB include large venue staging, fixed-install museum and simulation environments, rental and staging systems that require high brightness and accurate colour, and multi-projector blended video walls. The projector supports built-in edge blending and custom warp for seamless multi-projector installations. Its 24/7-rated design supports continuous operation where required.
Installation and operation are simplified by motorised lens options, intelligent lens memory for preset focus/zoom/shift positions, and multi-axis orientation capability. The projector is filterless and liquid cooled which reduces onsite maintenance. Backed by a five year / 20,000 hour EMEA warranty, the E-Vision 10000i 4K+ RGB combines long-term reliability with advanced imaging technology.
