Description
The Ashly EcoTour 1000.2 is a two-channel Class-D power amplifier that delivers up to 1000W per channel and 2000W in bridged mode. Ashly EcoTour 1000.2 combines dynamic power factor correction and D-MAX silicon-carbide switching to reduce power draw while maintaining clean output.

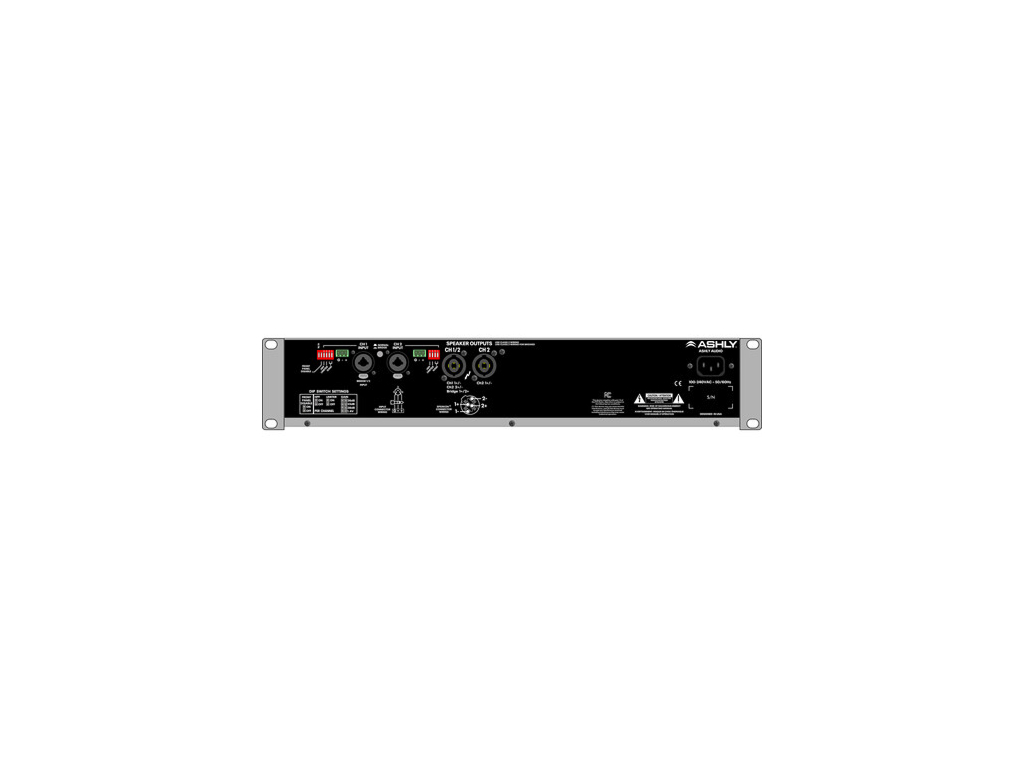

The amplifier supports low-impedance loads (2/4/8 Ohm) and direct high-impedance outputs (70V/100V). Inputs include Neutrik combo XLR-1/4″ and Euroblock connectors and NL4 speakON speaker outputs, all mounted in a 2U rack chassis.
Built-in protections, switchable 80 Hz HPF and per-channel clip limiters, defeatable front-panel controls, and SailFlow directed cooling deliver reliable operation under heavy loads and in touring or installed audio systems.
Key Features:- D-MAX Switching Supply: Silicon-Carbide semiconductors and dynamic PFC for improved efficiency and lower AC current draw
- Power Output: Up to 1000W per channel and 2000W bridged to drive large PA systems
- Flexible Outputs: Low-Z 2/4/8 Ohm support plus direct 70V/100V high-impedance outputs for distributed systems
- Input Connectivity: Neutrik combo XLR-1/4″ and Euroblock inputs for balanced/unbalanced sources
- Protection Suite: Inrush limitation, overtemperature, short circuit, DC output protection, mains fuse

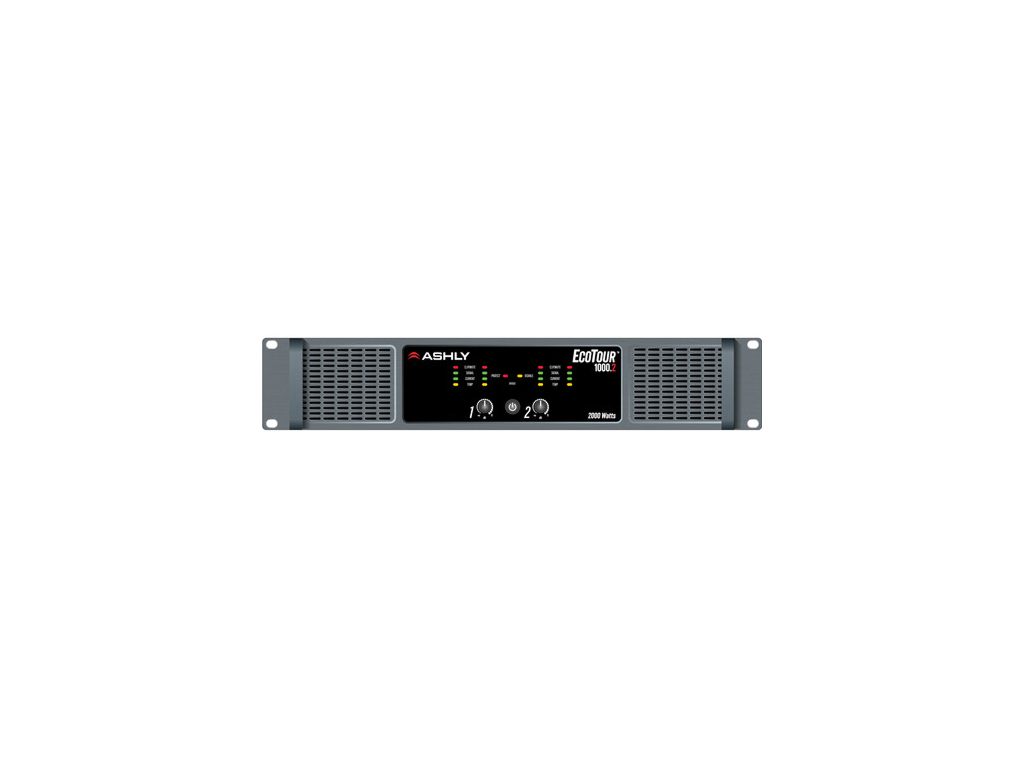

- Operational Control: Front-panel level knobs, soft-power switch, LEDs for clip/mute/signal/current/temperature/bridge/protect
- Touring PA: High-output touring systems requiring lightweight efficient amplification
- Installed Sound: Fixed installations using low-Z speakers or 70V/100V distributed lines
- Houses of Worship: Multi-zone setups needing thermostable operation and protection
- Corporate Events: Portable rack systems for conferences and presentations
