Description
The Electro-Voice EVC-1152-64PIW is a high-performance 15-inch two-way loudspeaker designed for a multitude of audio applications. Engineered for superior sound quality, it combines a 1¼-inch pure titanium dome compression driver with a rotatable constant directivity waveguide, allowing for 60° x 45° coverage. This ensures a consistent audio experience across various environments, whether indoor or outdoor.
One of the key features of this loudspeaker is its high-output woofer, which utilizes advanced computer-aided optimization techniques for enhanced sound clarity and low distortion. The passive crossover with a modified fourth-order design delivers smooth off-axis response and exceptional definition, particularly in the critical vocal range. With a continuous power handling of 350 watts and a peak capacity of 1400 watts, this loudspeaker is built to handle high sound pressure levels with ease.
In terms of performance, the EVC-1152-64PIW boasts a frequency response range from 70 Hz to 20 kHz, making it suitable for a wide array of audio frequencies. The axial sensitivity rating of 98 dB indicates its efficiency in converting power to sound, while the maximum calculated SPL of 129 dB demonstrates its capability to produce loud volumes without compromising audio quality. This makes it an excellent choice for both live sound reinforcement and fixed installations.

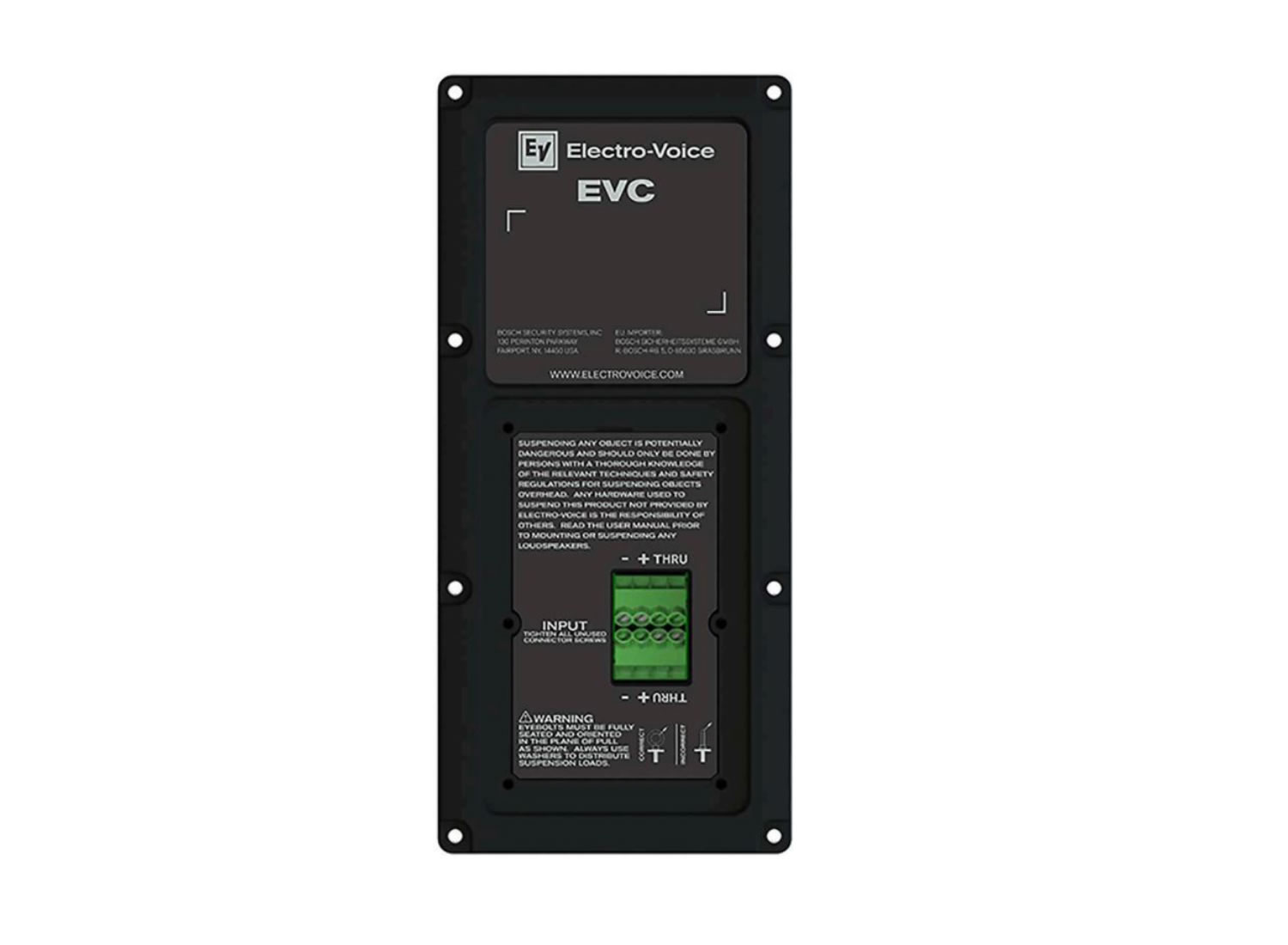

Connectivity options are versatile, featuring dual four-pin 10 AWG Phoenix/Euro block screw-terminals that accommodate various wire gauges. Additionally, the input panel can accept optional covers with NL4-type connectors or weatherized gland-nuts, enhancing its adaptability. For installations requiring 70V/100V operation, the internal landing pad allows for the addition of EV’s TK-150 audio transformer, which integrates Automatic Saturation Compensation (ASC) to maintain low-frequency performance across multiple speakers.
The EVC series loudspeakers are designed with ease of installation in mind, featuring multiple M10 suspension points and optional mounting brackets for flexibility in positioning. The robust 15-mm plywood enclosure, finished with EVCoat, ensures durability and longevity in various environmental conditions. Rated IP44 for environmental protection, the EVC-1152-64PIW can withstand outdoor elements, making it a reliable choice for outdoor events and installations.
In summary, the Electro-Voice EVC-1152-64PIW loudspeaker is an exceptional blend of performance, durability, and installation flexibility. Its advanced design and engineering make it an ideal choice for audio professionals seeking high-quality sound reproduction across a range of applications. With its impressive specifications and robust build, this loudspeaker promises to deliver reliable audio performance for years to come.
