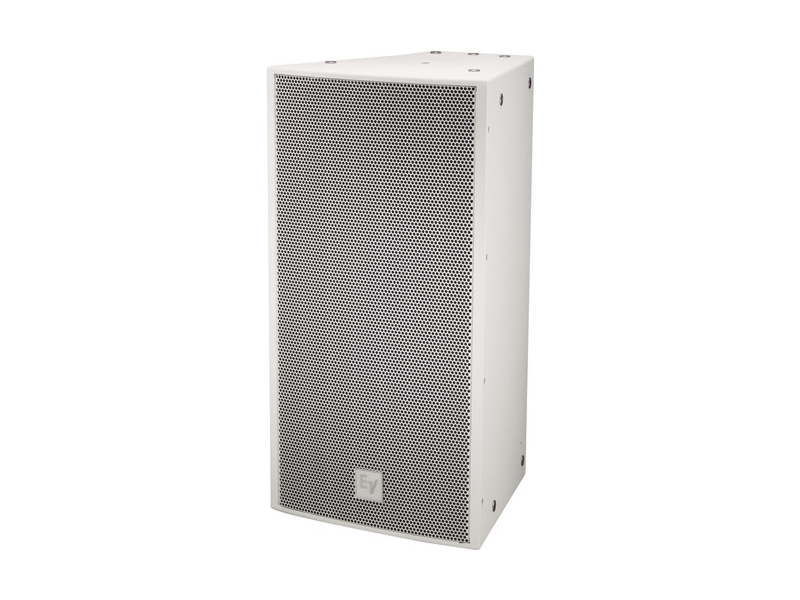

Download Manual The EVF-1122D/126-WHT is a compact two-way point-source loudspeaker designed to deliver clear, high-SPL audio in fixed-install environments. It combines a 12″ low-frequency transducer and a high-output 3″ titanium compression driver to provide wideband coverage and vocal clarity. The trapezoidal, weather-resistant enclosure is finished in EVCoat white for exterior durability and aesthetic integration.
Key features include a rotatable 12″ x 12″ constant-directivity waveguide with a 120×60 coverage pattern and a 3″ DH7N compression driver for high-frequency detail. The DVX3121A 12″ woofer uses FEA-optimized design to reduce distortion and increase efficiency. An integrated 4th-order crossover with 24 dB/octave slopes and HF protection ensures smooth response and long-term reliability.
Frequency response is very linear from 49 Hz to 21 kHz (–10 dB) with a nominal response of 57 Hz to 18 kHz (–3 dB). System power handling is specified as 600 W continuous, 1200 W program, and 2400 W peak, delivering calculated max SPL of 131 dB at 1 m. Nominal impedance is 8 ohms and the recommended high-pass frequency is 65 Hz for protected installations.
Connectivity and control are handled via an input panel that accepts a Phoenix-style connector and supports easy external selection between passive and bi-amp operation. A transformer kit for 70.7/100 V distributed systems can be mounted to the input panel for installs needing line-voltage distribution. The cabinet meets ANSI/IEC 60529 IP44 ratings for basic weather resistance in outdoor or semi-exposed locations.
This loudspeaker is appropriate for houses of worship, performing arts spaces, corporate auditoria, and outdoor covered areas where predictable directivity and high speech intelligibility are required. The rotatable horn and compatible rigging permit vertical or horizontal arraying with other EVF or EVH series cabinets. Its combination of power handling and pattern control supports both mains and fill roles in multi-zone systems.
Installation is simplified by 22 M10 suspension points and optional flying hardware for permanent mounts. The cabinet uses 13-ply weather-resistant birch and a galvanneal grille with hydrophobic cloth to resist corrosion and moisture. External switches and accessible jumpers allow rapid mode changes during commissioning or maintenance.
Overall, the EVF-1122D/126-WHT offers a robust, specification-driven solution for integrators needing a compact, arrayable 12″ two-way loudspeaker with controlled coverage and weather-protected construction. Its combination of FEA-optimized LF transducer, titanium HF driver, and adjustable rigging reduces system complexity while maintaining performance and reliability. The result is a product that supports precise coverage control and long-term installed operation.
