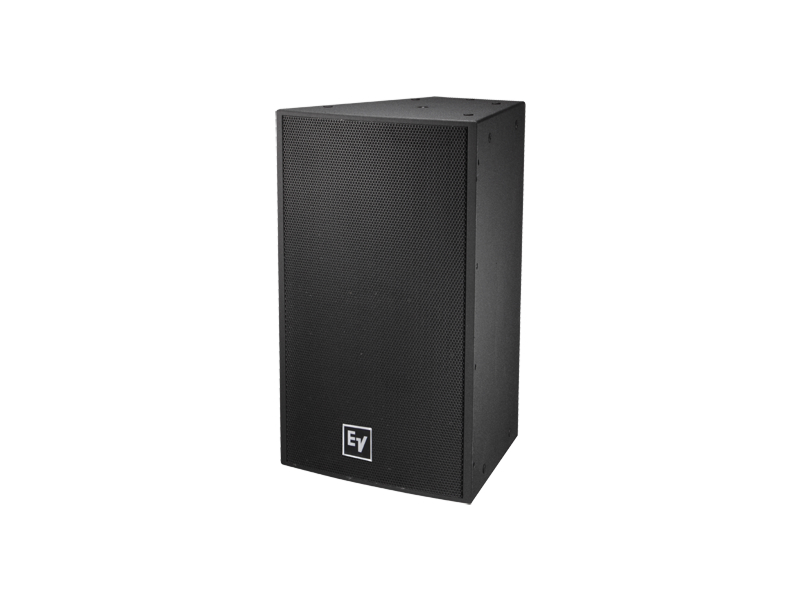

Download Manual The EVF-1152D/96-FGB is a weatherized two-way loudspeaker designed to deliver focused mid-near field coverage with high output and clarity. It combines a 15 in low-frequency transducer and a 3 in titanium compression driver on a rotatable 90 x 60 waveguide to shape coverage. The fiberglass-coated enclosure and stainless steel hardware allow direct exposure to outdoor elements while maintaining consistent audio performance.
Key features include a rotatable constant directivity waveguide, FEA-optimized LF transducer, and a high-output DH7N compression driver. The passive crossover uses steep 24 dB/octave slopes with HF protection and an acoustic crossover at 1300 Hz to maintain smooth vocal range response. A dynamic protection circuit safeguards both driver sections against thermal overload for long-term reliability.
Performance specifications show wide bandwidth and high sensitivity for compact enclosures. Frequency response extends into the subrange with a -3 dB band centered in the vocal range and a -10 dB range reaching upper frequencies. Calculated maximum SPL and system power handling support sustained high-SPL operation in installed systems.
Connectivity and operation are flexible with dual four-pin 10 AWG Phoenix/Euroblock inputs, an externally accessible passive/active operation switch, and an optional transformer kit for 70.7/100 V distributed systems. A CDG dual-gland-nut input cover is included for weatherized installations to maintain ingress protection. The input assembly accepts large-gauge wiring suitable for long runs in professional installations.
The EVF-1152D/96-FGB suits a wide range of installed applications where weather exposure and focused coverage are required. Typical uses include outdoor kiosks, amphitheater fill, canopy-mounted reinforcement, and permanent waterfront or coastal installations. The combination of rotatable horn choices and compatible EVF/EVH series cabinets simplifies array and system design across projects.

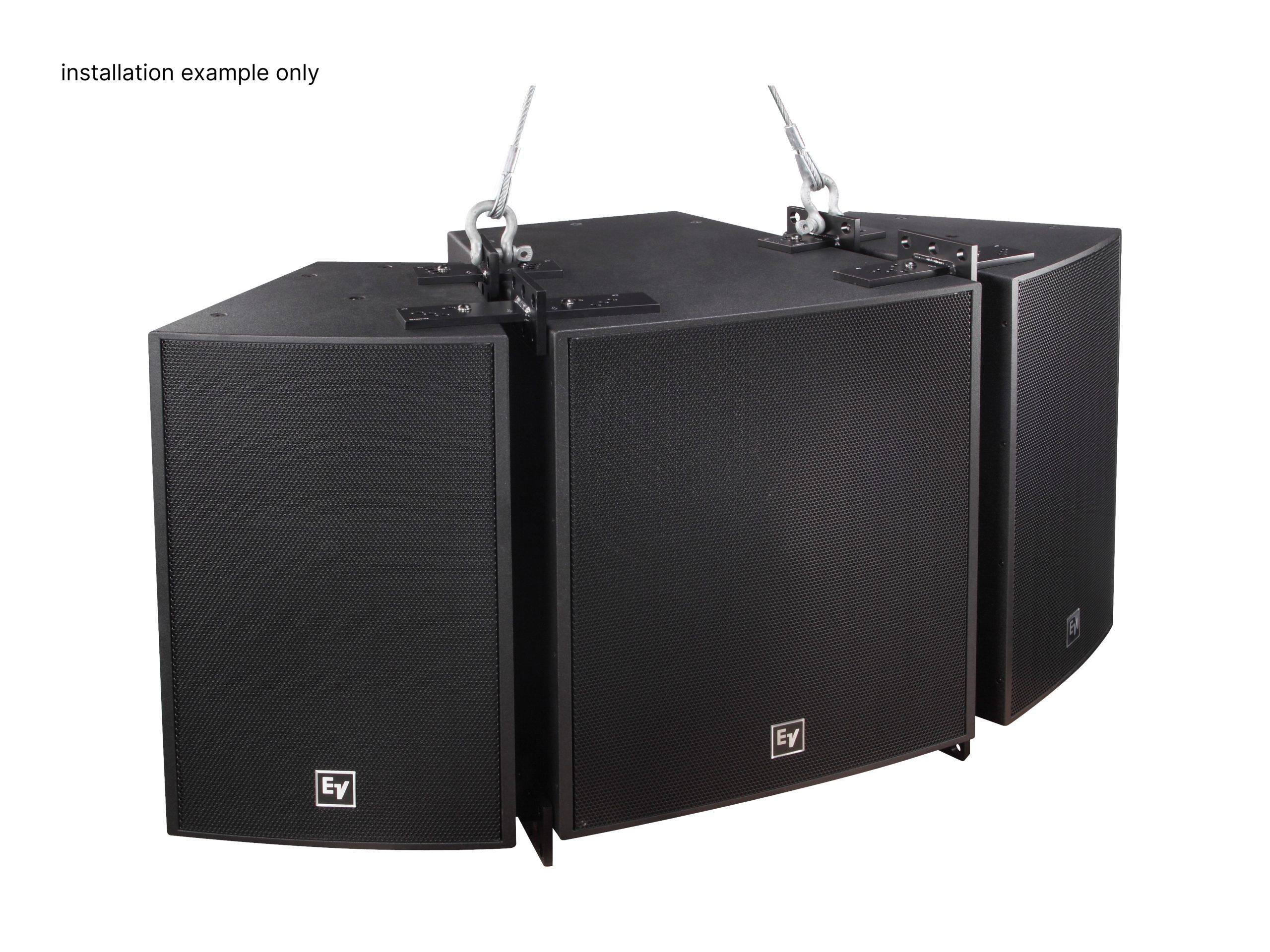

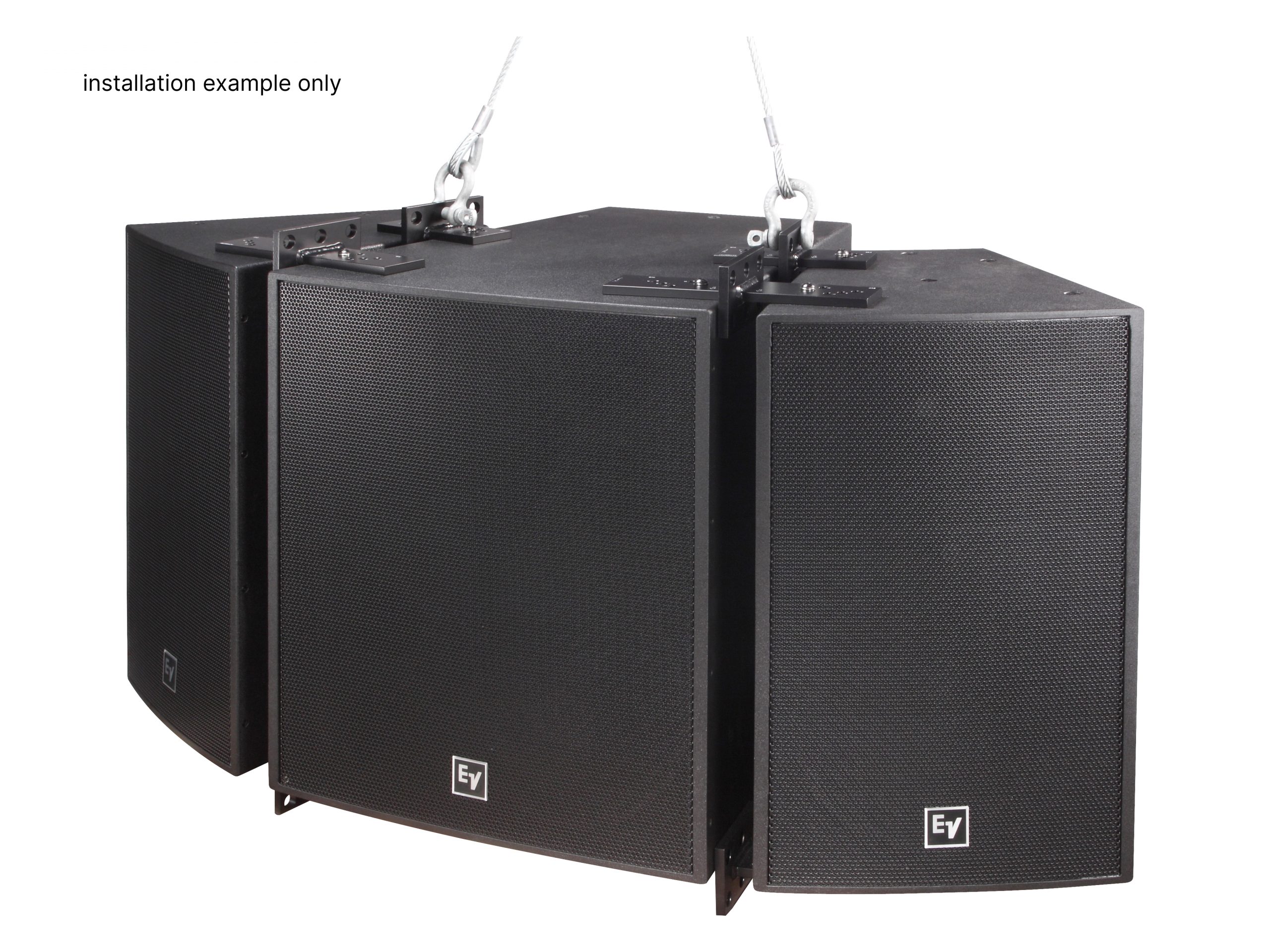

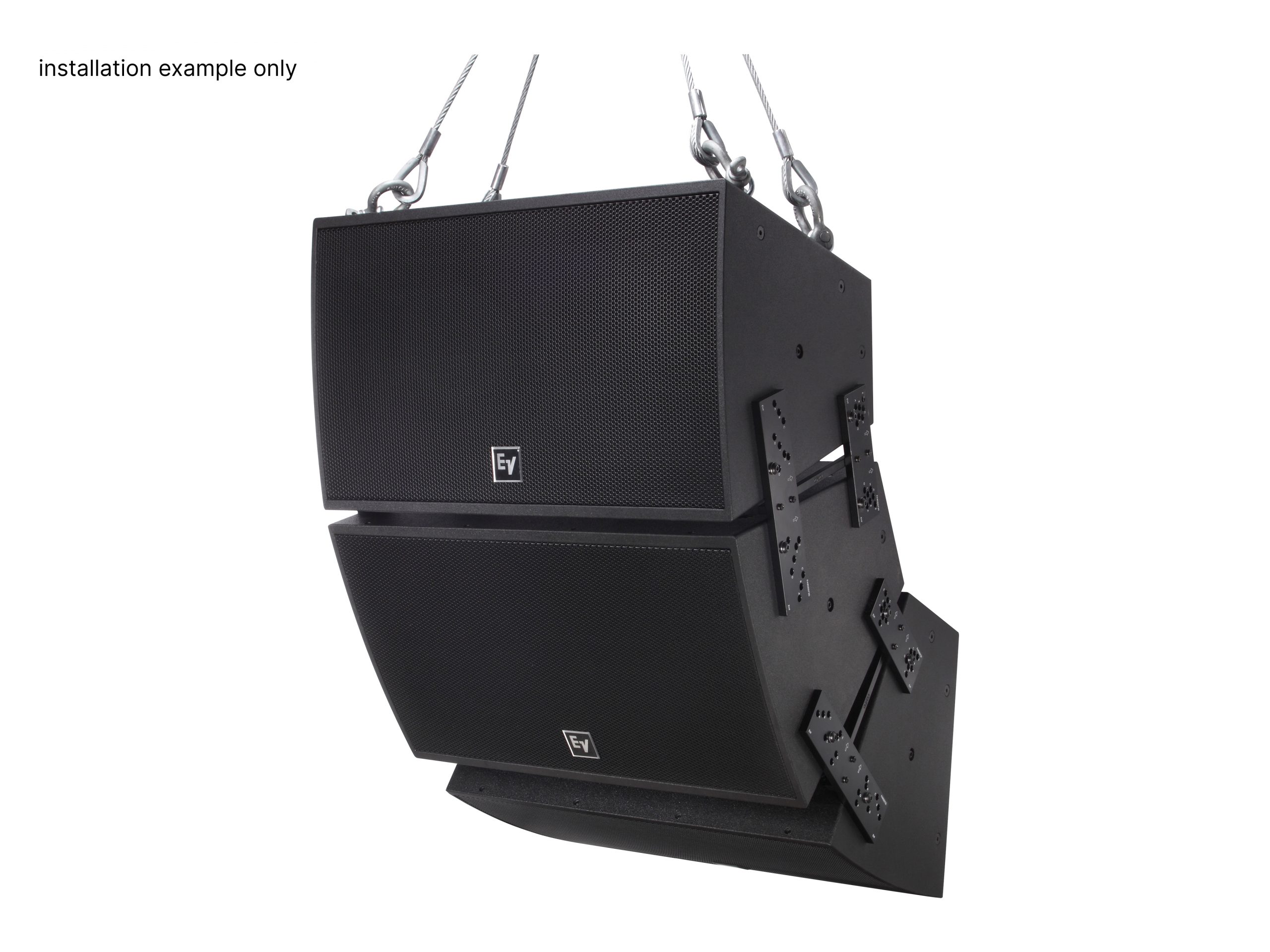

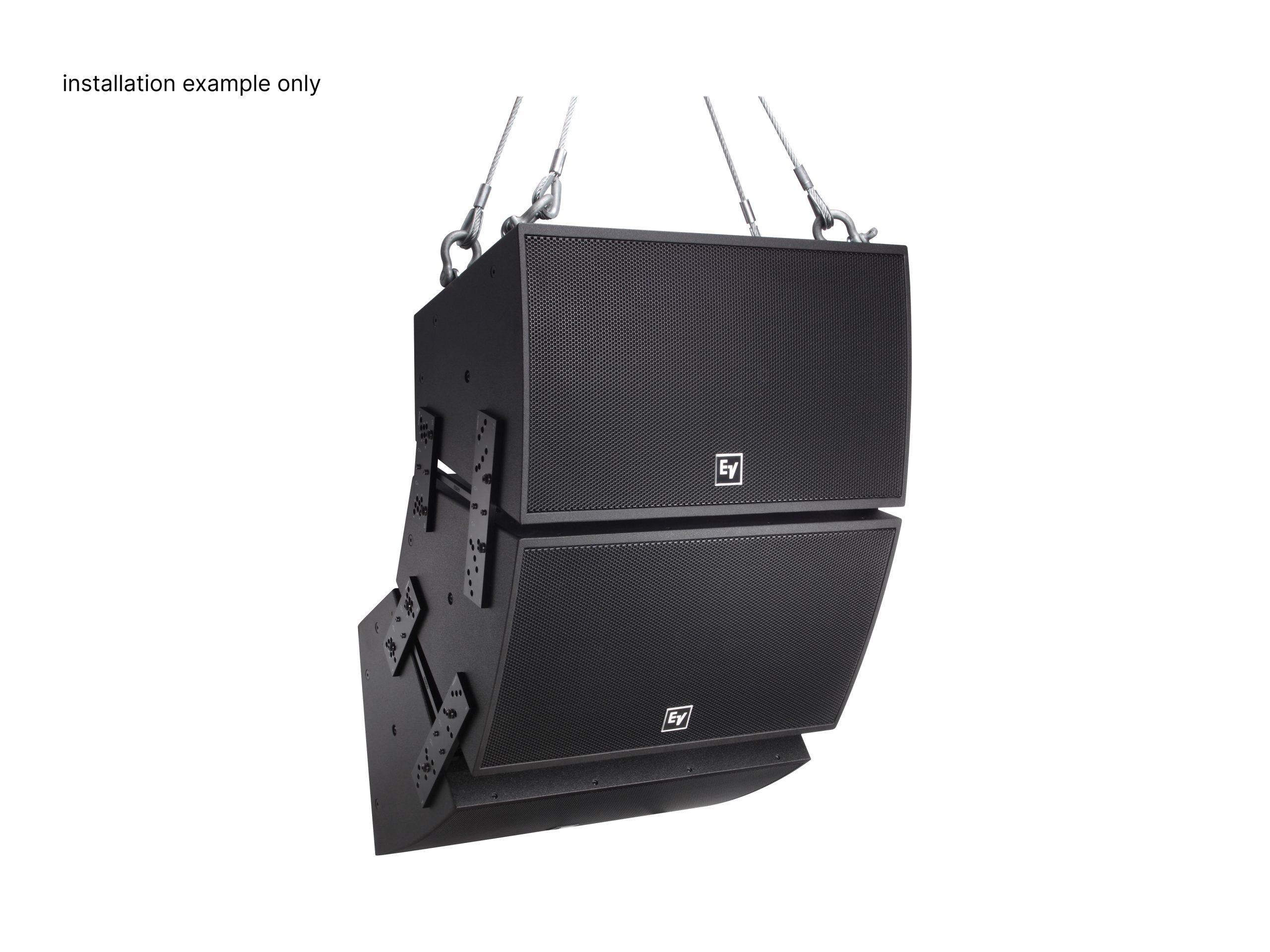

Installation is straightforward with multiple M10 suspension points and optional flying hardware for flown arrays or secure fixed mounts. The trapezoidal enclosure and multiple rigging points facilitate horizontal or vertical arrays using mixed EVF/EVH boxes. The fibreglass exterior, stainless steel grille, and hydrophobic cloth provide long-term resistance to humidity, salt air, and temperature variation while preserving acoustic integrity.
In summary, the EVF-1152D/96-FGB provides a compact, weather-ready two-way solution delivering controlled 90 x 60 coverage and high SPL capability. It integrates protective circuitry, flexible connectivity, and a rugged fiberglass finish for demanding outdoor installations. The unit reduces inventory complexity by fitting into EVF/EVH array systems and distributed transformer-equipped installations.
