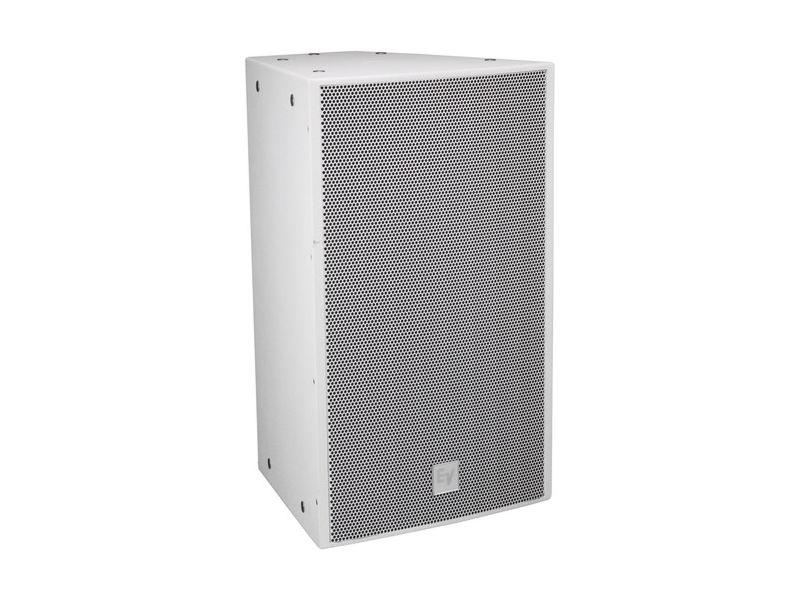

Download Manual The EVF-1152D/96-FGW is a fully weatherized two-way point-source loudspeaker designed for medium-throw sound reinforcement in exposed environments. It combines a 15in low-frequency driver and a 3in titanium compression driver on a rotatable 90 x 60 waveguide to deliver focused coverage. The enclosure is fiberglass coated over birch plywood for long-term outdoor durability.
Key features include a rotatable Constant Directivity horn, a high-output titanium compression driver, and an FEA-optimized 15in woofer to provide clean, intelligible output at high SPL. The internal crossover uses steep 24 dB/octave slopes with equalization to smooth vocal response and maintain linear off-axis behavior. A dynamic protection circuit guards both low and high frequency transducers against thermal overload.
Performance specifications include a broad audible response and high sensitivity to support sustained levels up to 131 dB SPL (calculated). The system power handling is rated at 600 W continuous with a 2400 W peak capability, and the acoustic crossover is set at 1300 Hz. Nominal impedances are 8 ohms for passive operation and the minimum impedance is 6 ohms.
Connectivity and operation are adaptable for fixed installs – the input panel accepts dual four-pin 10 AWG Phoenix/EuroBlock terminals and includes a CDG dual-gland-nut cover for weatherized connections. An externally accessible jumper selects passive or active operation and an optional 70.7/100 V transformer kit can be mounted for distributed systems. Mounting and rigging use M10 threaded suspension points for flown arrays or fixed installs.
Typical applications include outdoor performance venues, houses of worship, theme parks, and poolside or seaside installations where direct exposure to sun, rain, fog, and snow occurs. The EVF-1152D/96-FGW is specified where focused horizontal/vertical coverage and weather resistance are required. Its rotatable horn and trapezoidal enclosure allow flexible arraying and orientation choices.
Installation is simplified by the compact trapezoidal enclosure, multiple M10 suspension points, and optional flying hardware. The front grille is stainless steel with hydrophobic cloth and the cabinet is secured with stainless steel fasteners to resist corrosion. External switches and accessible connectors reduce service time in the field.
In summary, the EVF-1152D/96-FGW is a weatherized two-way loudspeaker offering controlled 90 x 60 coverage, high SPL capability, and rugged construction for permanently exposed outdoor installations. It is engineered to deliver reliable intelligibility and environmental resistance while supporting array configurations across the EVF and EVH product families.
