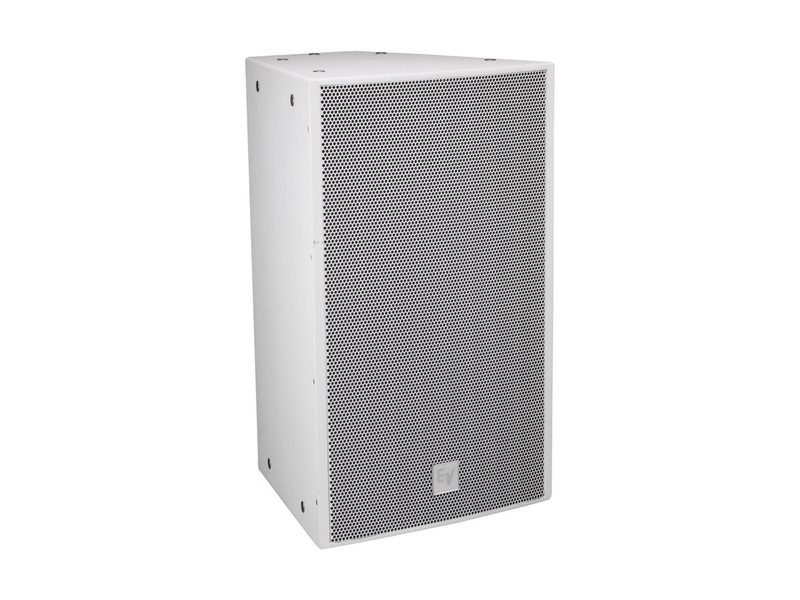

Download Manual The EVF-1152D/96-WHT is a two-way, point-source loudspeaker engineered for medium-throw sound reinforcement in both indoor and weather-exposed installations. It combines a 15 in low-frequency transducer and a 3 in titanium compression driver on a 90 x 60 rotatable constant-directivity horn to deliver focused coverage. The enclosure uses weather-resistant birch and an EVCoat finish to improve durability in demanding environments.
Key features include a DVX3151A 15 in FEA-optimized woofer and a DH7N 3 in compression driver with a 1.4 in throat diameter mounted to a rotatable 12 in x 12 in constant-directivity horn. The integrated 4th-order crossover at 1,300 Hz uses 24 dB/octave slopes plus HF protection and a dynamic protection circuit for thermal overload safety. The system supports switchable bi-amp or passive operation for flexible system integration.
Performance specifications indicate a wide usable frequency range and high output capability. The documented frequency range values include a -10 dB point of 40 Hz – 21 and a -3 dB response of 70 Hz – 18 as provided by the manufacturer. Sensitivity is 100 dB 1 W/1 m and calculated maximum SPL at 1 m is 134 dB, with continuous/program/peak power ratings of 600 / 1200 / 2400 watts.
Connectivity is handled via an input Phoenix-style euroblock connector capable of accepting up to 10 AWG, with optional PI and FG versions offering dual-gland-nut covers for weatherized installations. An externally accessible jumper selects passive or active operation and a transformer kit can be mounted for 70.7 / 100 V distributed systems. The enclosure includes 22 M10 threaded suspension points and optional flying hardware for flown arrays or fixed installs.
The EVF-1152D/96-WHT is suited to a range of practical applications such as foreground reinforcement in performance venues, fill and delay zones in houses of worship, and installed sound in hospitality and retail environments. Its rotatable waveguide and trapezoidal cabinet allow horizontal and vertical arraying with other EVF and EVH series models. The speaker offers predictable coverage control and vocal clarity for spoken word and music program material.
Installation and maintenance are simplified by the compact trapezoidal cabinet, galvanneal grille with hydrophobic screening options, and a user-friendly input panel. The white textured paint finish and weather-resistant construction aid long-term reliability in standard outdoor conditions rated to IEC 60529 IP44. The EVF-1152D/96-WHT balances power handling, pattern control, and rugged construction to provide a reliable installed loudspeaker solution.
