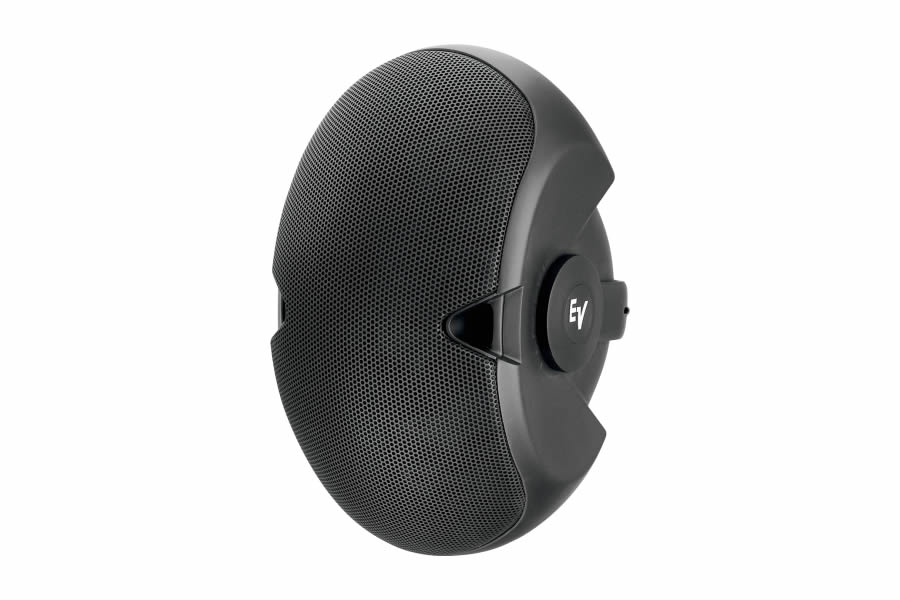

Sold as a pair, the black Electro-Voice EVID 6.2T is a passive two-way loudspeaker designed for voice amplification and background/foreground music reproduction in clubs, restaurants, and retail stores. Weather resistant and magnetically shielded, it can be used indoors or outside in a variety of positions, even next to video monitors. Each EVID 6.2T is equipped with dual 6″ woofers and a 1″ titanium tweeter, yielding a frequency range of 62 Hz to 20 kHz, and a continuous program power capacity of 300W. The integrated transformer allows the EVID 6.2T to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Full-bandwidth overload protection ensures reliable operation without additional external circuitry. The standard Euroblock connector enables simple and secure wiring. The EVID 6.2T features a durable, paintable ABS enclosure with a zinc-coated grille to protect all internal components. The included SAM (Strong-Arm-Mount) accommodates multiple mounting positions, and allows for a high degree of horizontal and vertical directivity.
Download Manual Key Features
Compact loudspeaker for indoor and outdoor background/foreground music systems in restaurants, bars, patios, retail stores, and more
Integrated transformer allows use with 70V/100V constant-voltage systems
Line array–influenced design yields unobtrusive shape and 100° horizontal by 80° vertical coverage

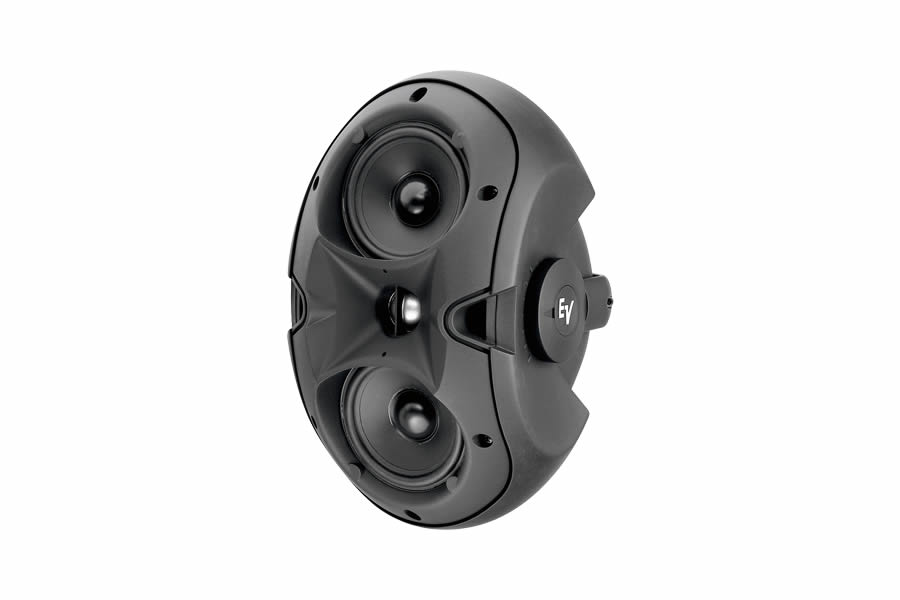

Elliptic baffle symmetrically locates the tweeter in front of and between the woofers
Full-bandwidth overload protection
Conforms to MIL-STD-810 and IP34 for reliable weather resistance
300W continuous program power handling
High sensitivity
62 Hz to 20 kHz frequency range
Dual 6″ woofers for extended bass, greater power handling, and increased output
Titanium direct-radiator, high-frequency transducer with neodymium magnet
Magnetically shielded for use near video monitors
Zinc-plated, powder-coated grille with safety leash
Over 100° of swing and 90° of rotation for maximum install flexibility
Strong-Arm-Mount provides excellent strength and reliability
