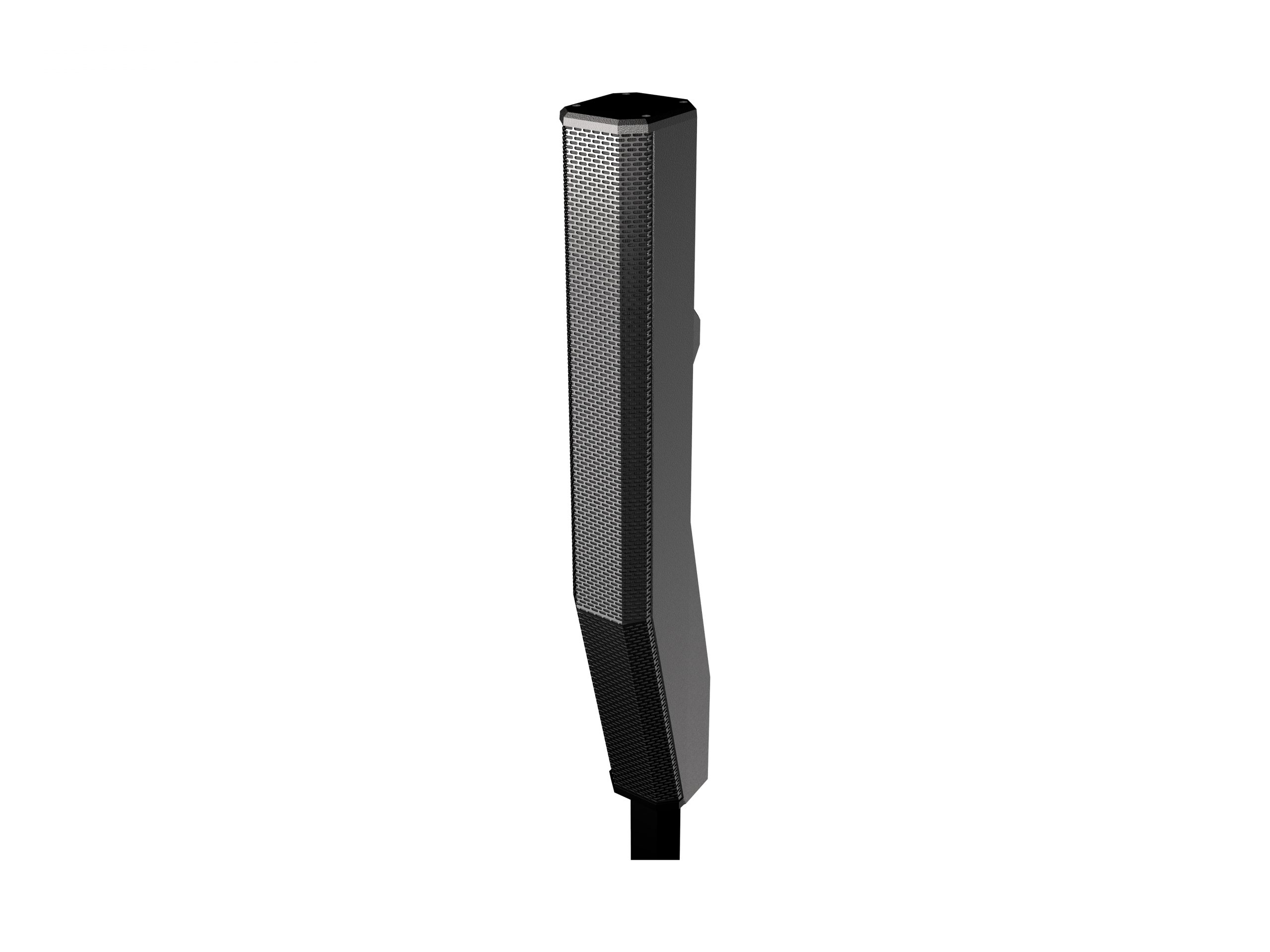

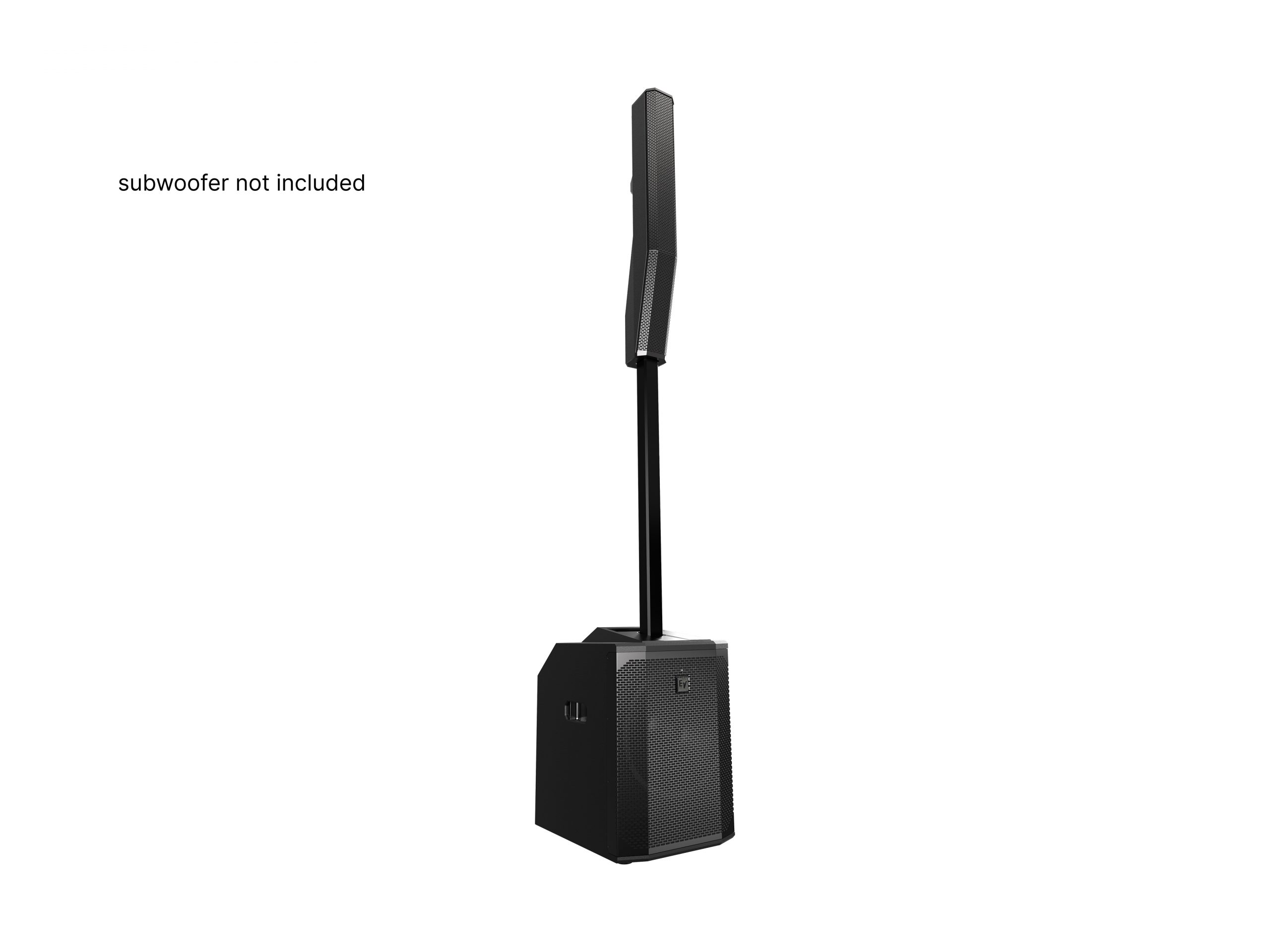

Download Manual The EVOLVE50-TB column speaker array and pole is a portable powered column system top section designed to pair with the EVOLVE50-SB-US subwoofer. It provides clear full-range coverage when combined with the subwoofer and serves as the HF and midrange component of the complete EVOLVE 50 system. The assembly is magnet-assisted for fast setup and internal signal routing simplifies cabling.

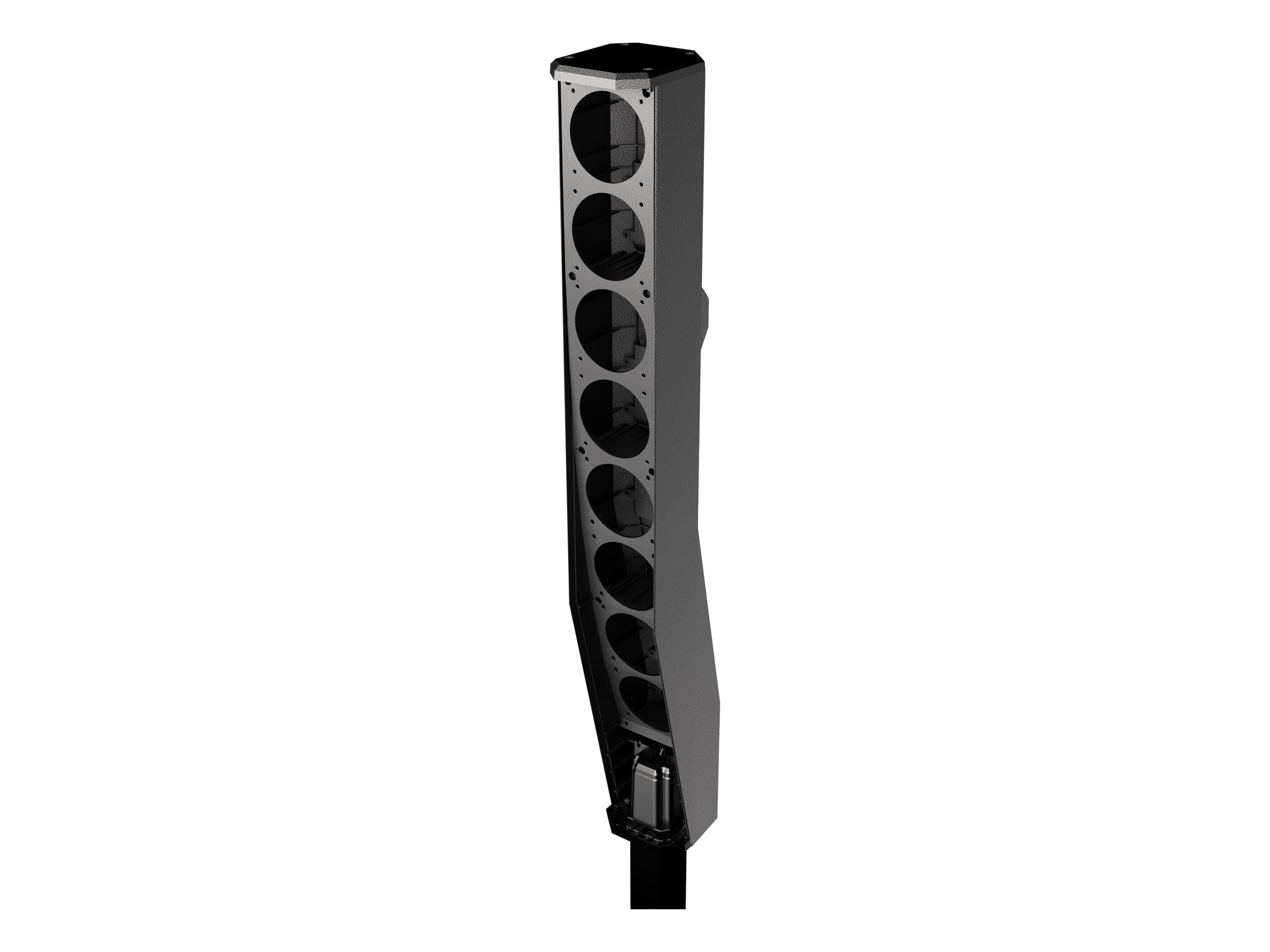

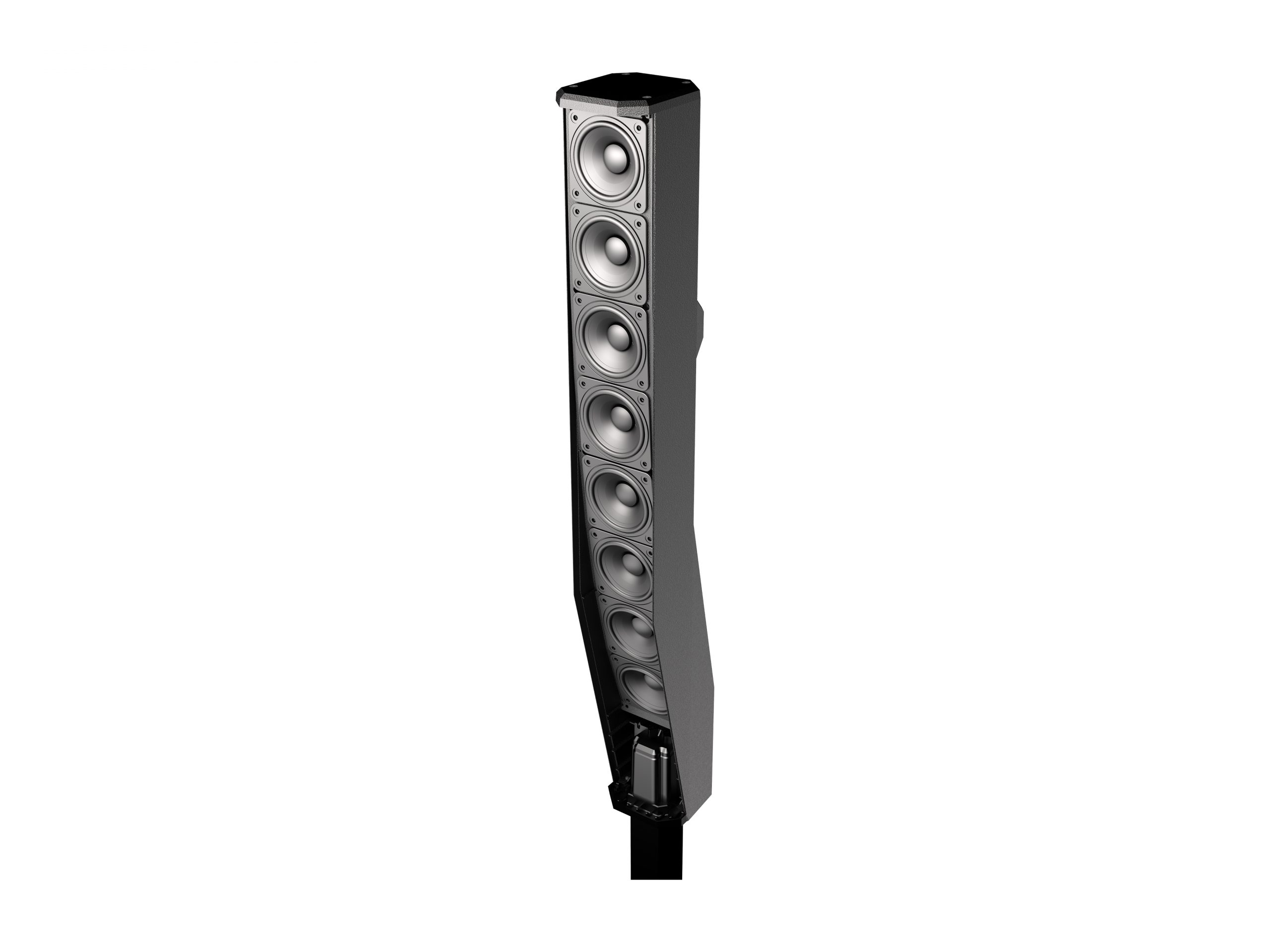

The column integrates eight 3.5 inch neodymium drivers and composite waveguides to deliver ultra-wide 120° horizontal coverage and 40° asymmetrical vertical coverage. The pole secures magnetically to the sub and supports gravity-held installation of the column for repeatable alignment. The system achieves up to 127 dB SPL when used with the matching subwoofer.
QuickSmartDSP processing provides four factory presets and five user-programmable presets, three-band EQ, output delay, limiter status monitoring, input level control and metering, and master volume control. The amplifier section supplies 1000 W total Class-D power partitioned as 500 W LF and 500 W HF channels with a 200 Hz crossover. Frequency response is specified at 43 Hz to 20 kHz (-3 dB) and the functional range reaches 37 Hz to 20 kHz (-10 dB).
Connectivity includes dual XLR/TRS combo inputs, a 3.5 mm input, stereo RCA input, Bluetooth audio input (available in select countries), an XLR THRU output and an XLR MIX OUT. Phantom power (+15 V) is available on the mic input and the QuickSmart Mobile app provides BTLE control and monitoring for up to six systems. High-resolution Bluetooth audio allows convenient wireless playback for background music or accompaniment.
This top section is intended for sitting and standing audiences in rooms that require even horizontal coverage and controlled vertical dispersion. Typical uses include live music reinforcement, speech and presentations, houses of worship, and corporate events when paired with the EVOLVE50 subwoofer. The asymmetrical vertical coverage directs energy toward the audience plane to improve intelligibility for seated listeners.
The enclosure materials include a 15 mm plywood sub interface on the matching sub and a composite column with an aluminum pole and steel grille with black powder coat. The top section is packaged with a carrying bag for the pole and column and is designed for rapid rigging and teardown. The magnet-assisted pole connection and gravity-held column reduce setup time and minimize alignment errors.
As a modular component of the EVOLVE 50 system the EVOLVE50-TB column and pole deliver predictable coverage, integrated DSP control and wireless configuration options. The design balances extended bandwidth and output with a compact footprint and intuitive setup workflow. For operators seeking a portable column array solution, this top section offers controllable dispersion and DSP features to meet pro audio applications.
