Description

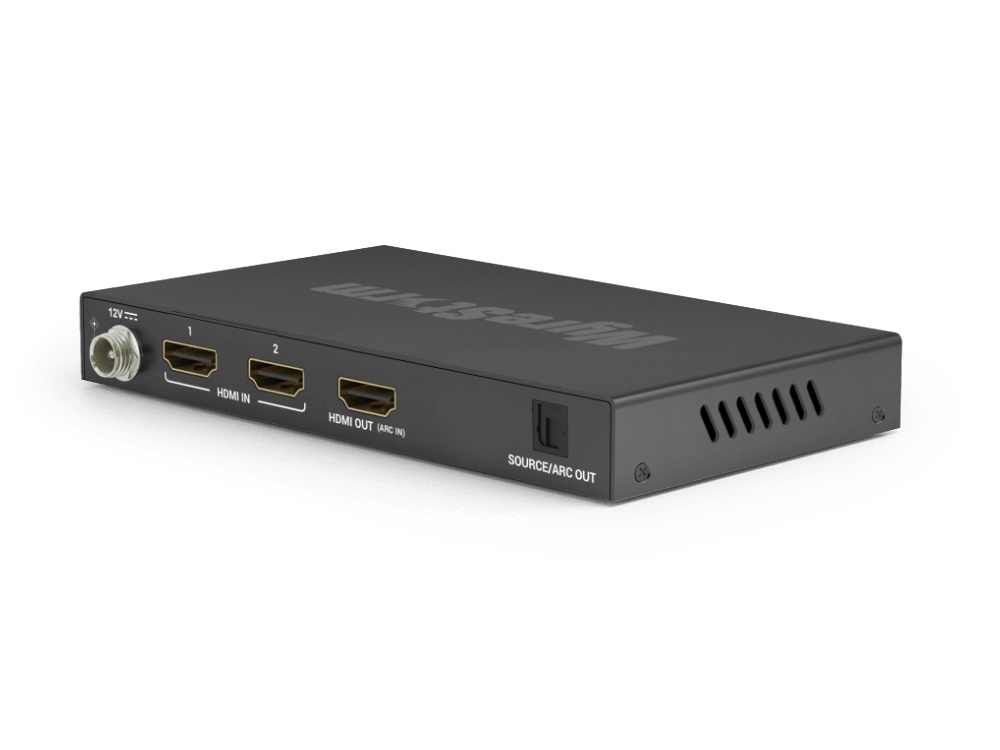

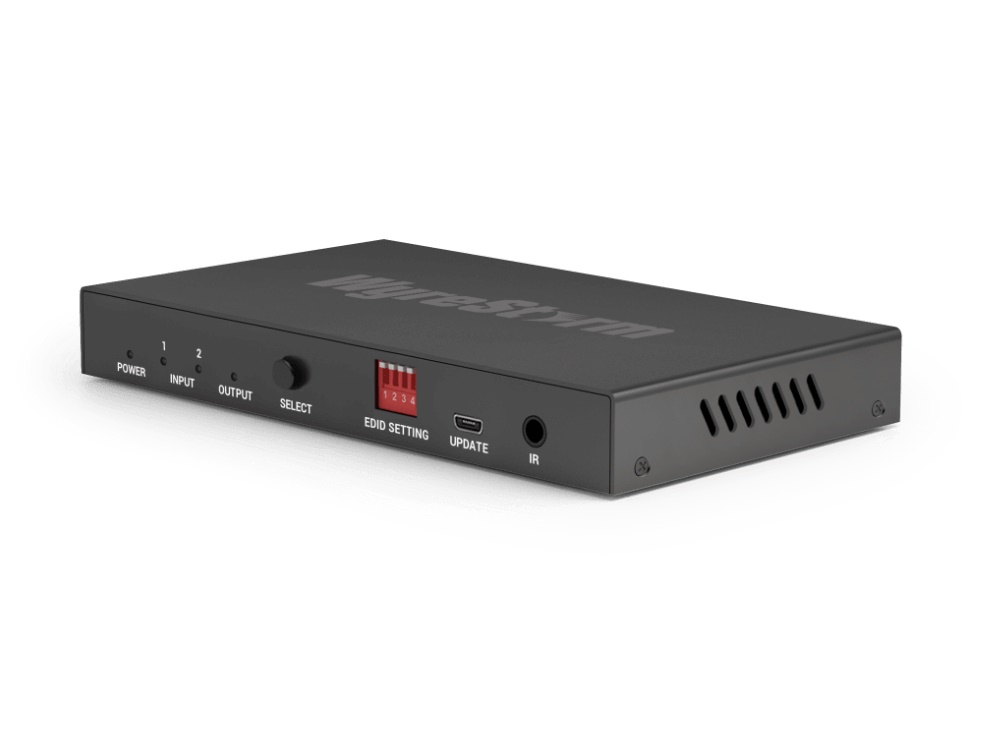

Download Manual Our EXP-SW-0X01-8K is a powerful plug-and-play 8K HDMI switcher that has the ability to send uncompressed up to 8K@60Hz or 4K@120Hz resolutions to your display. This switcher also supports DSC 1.2a pass-through, an approved method of compression in accordance to the HDMI 2.1 specification, allowing up to a 10K@120Hz signal to be transmitted losslessy.
this switcher also gives you the tools to de-embed audio from your source if there isn’t an option on the source and also supports ARC from your display to send to send high quality 5.1 to your audio distribution system. Other features such as auto switching and CEC passthrough makes the EXP-SW-0X01-8K a true and powerful plug-and-play solution.
Don’t forget, this switcher can be paired with any of our CAB-HAOC-FRL’s to further extend your 8K@60Hz signal further than a standard 8K HDMI cable!
Features:
- HDCP 2.3 compliant
- Full CEC passthrough
- Supports EDID management via DIP switches
- S/PDIF audio output from HDMI de-embed or ARC
- Automatic or Manual switching
- Supports up to 40Gbps FRL and 18Gbps TMDS
- FRL to TMDS and TMDS to FRL mode conversion
- Supports HDMI2.1 features such as QFT (Quick Frame Transport), QMS (Quick Media Switching), ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
- IR and RS232 control supported
- No single use plastic included* SUPFree
