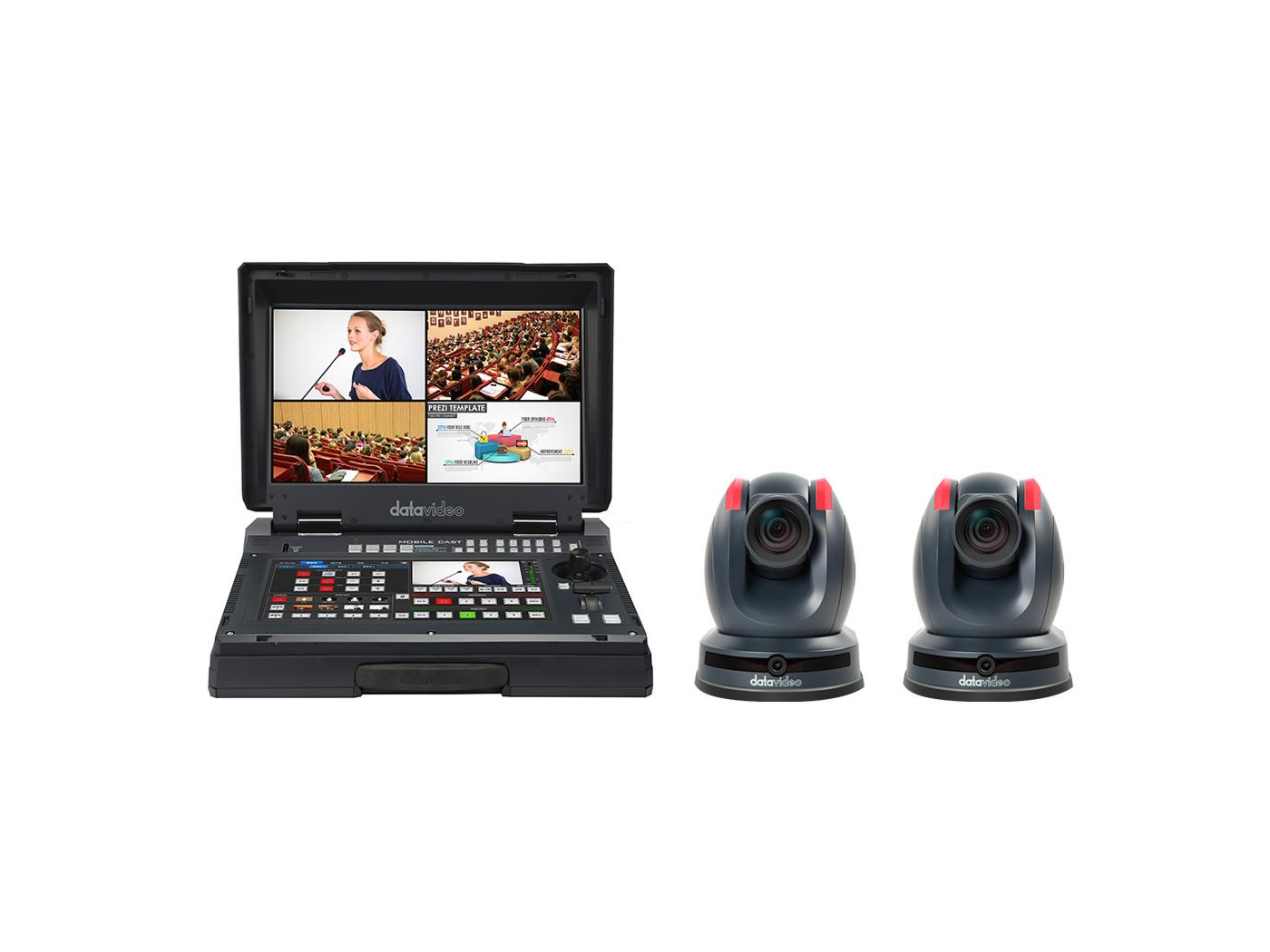

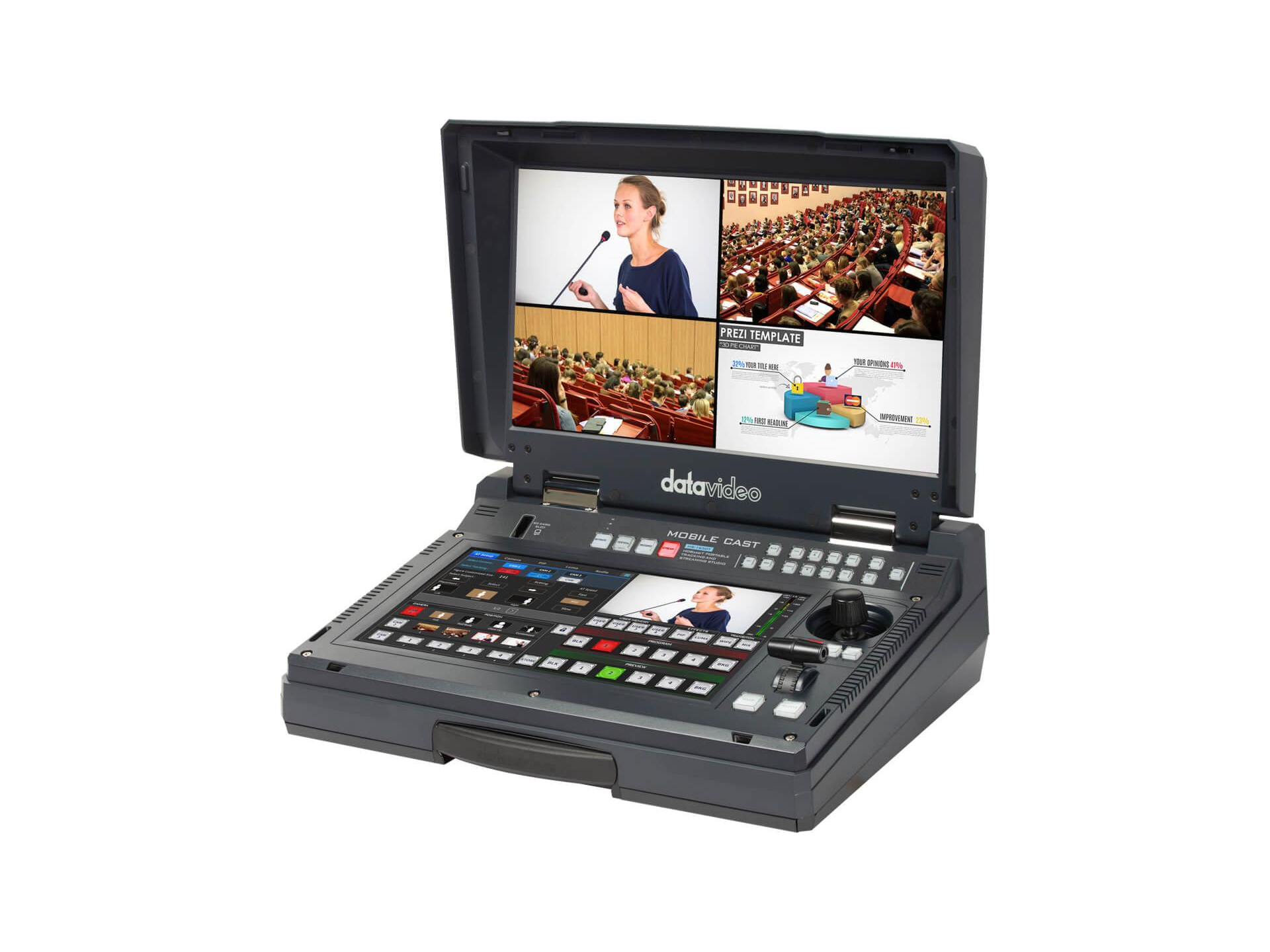

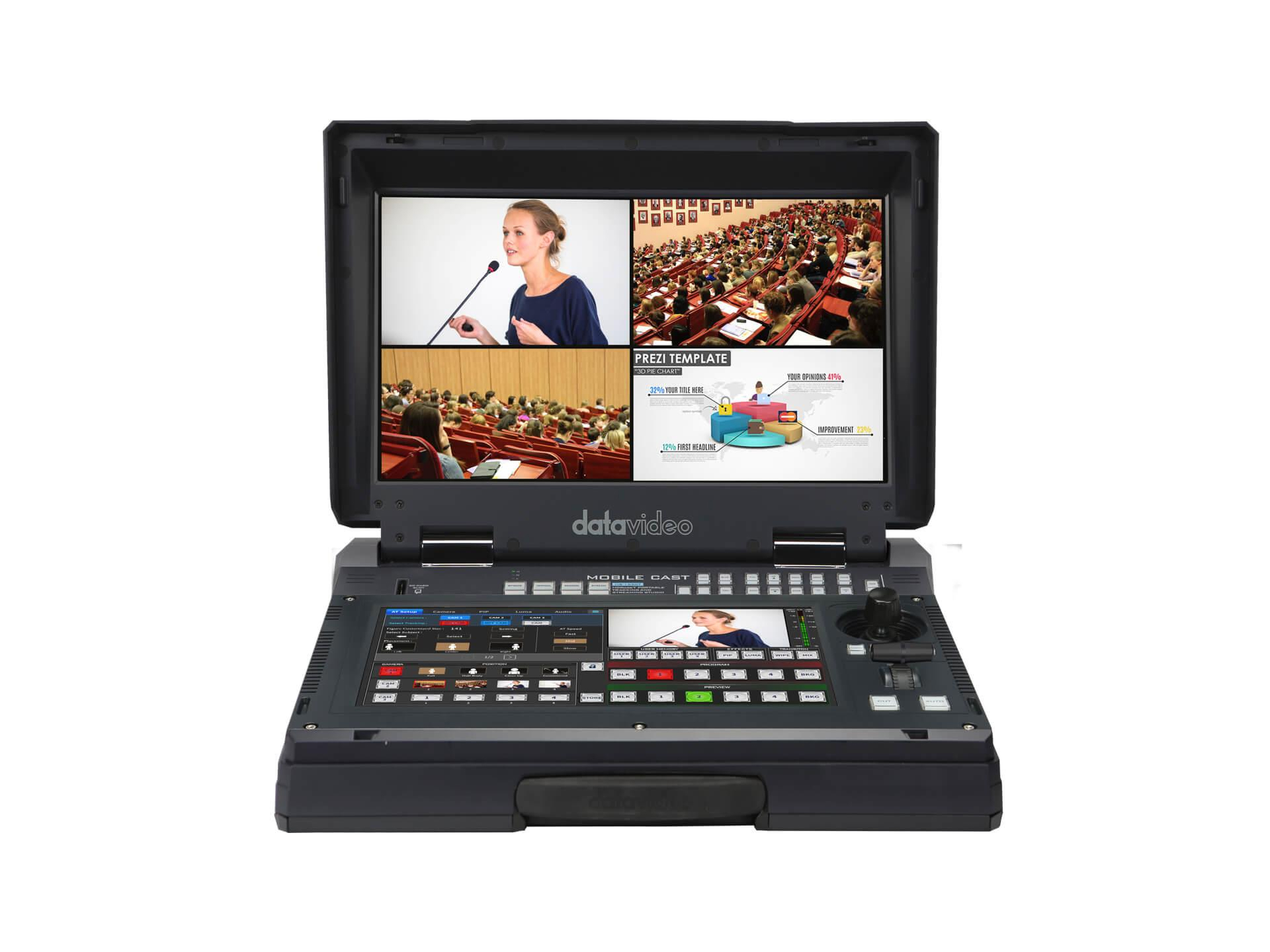

Download Manual The EZ STREAM AI 30X is an integrated HDBaseT single-operator auto tracking studio – designed to simplify multi-camera live production and recording. It pairs an all-in-one production case with a built-in 17.3in monitor and integrated recorder to streamline workflows. The system prioritizes single-cable HDBaseT connectivity to reduce setup complexity and cable clutter.

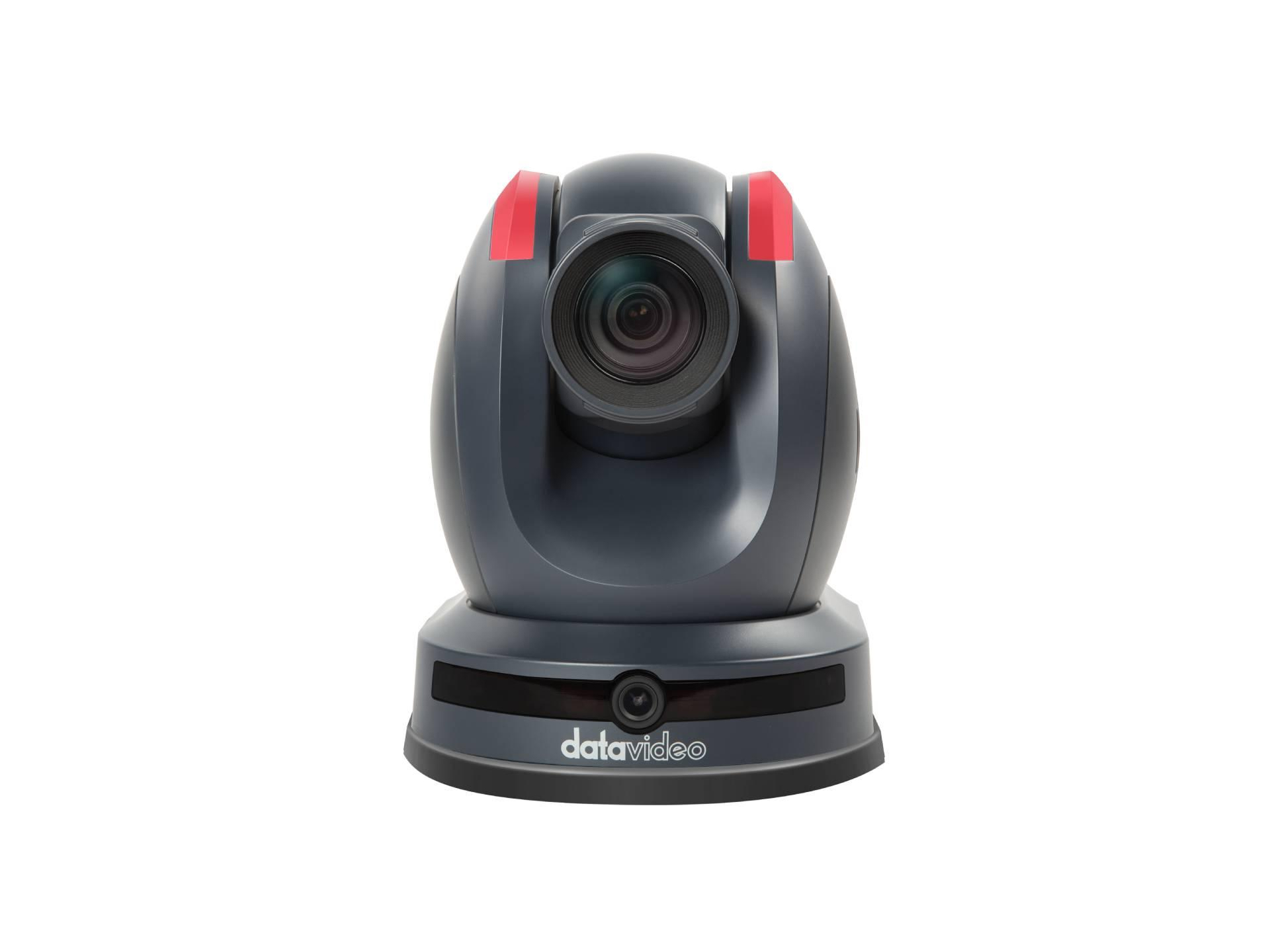

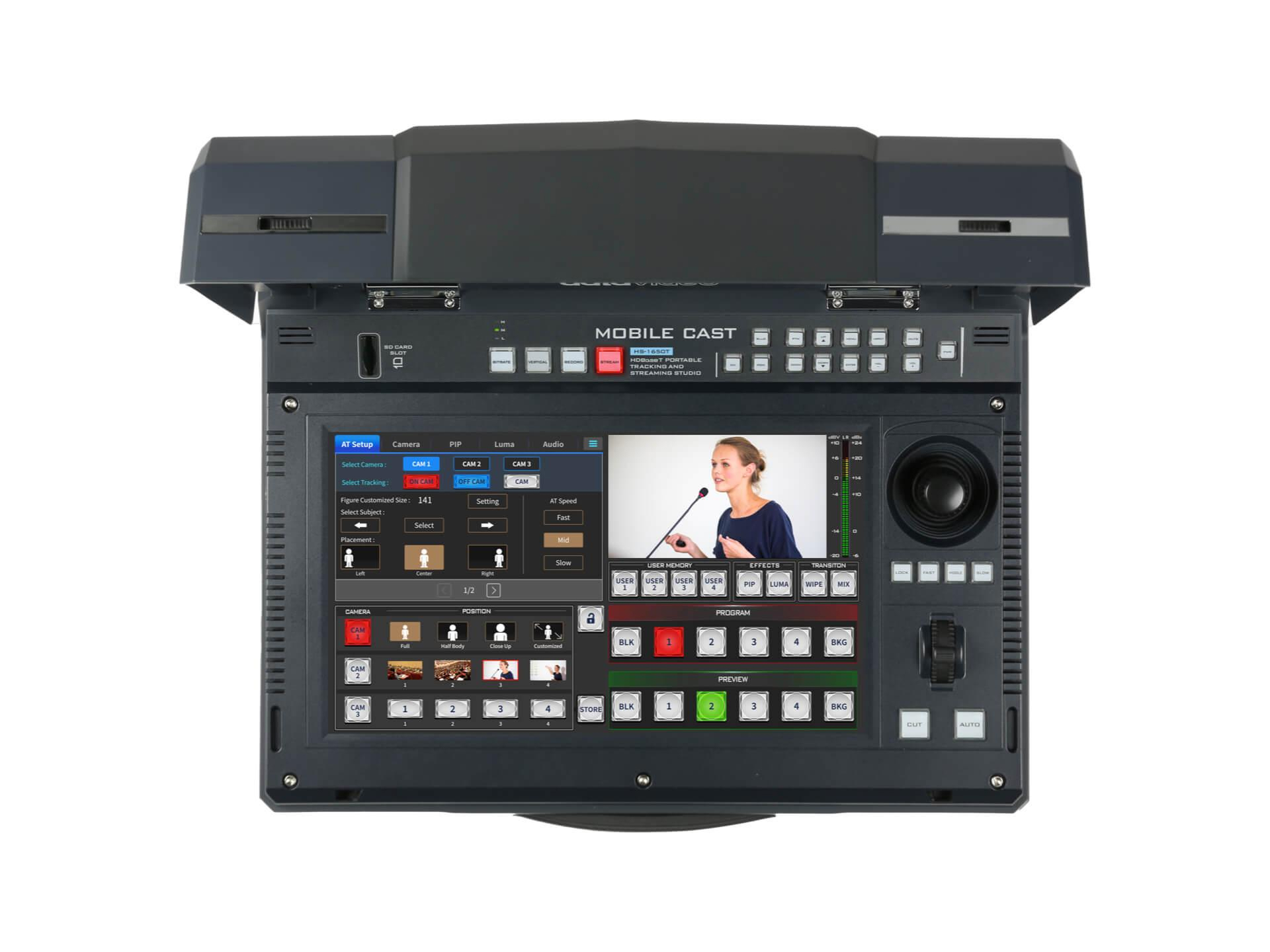

Key features include single-cable HDBaseT transmission for video, power, control and tally up to 100 meters, an intuitive touchscreen for camera and switcher control, and AI-driven auto tracking for smooth subject follow. The cameras provide 30x optical zoom and a dual-lens arrangement to maintain subject tracking while offering a wide panorama view. The recorder outputs MP4 files directly to removable media for immediate upload or archive.
Performance is delivered in HD formats up to 1080p60 with 4:4:4 10-bit video sampling and support for common streaming codecs including H.264 and H.265. Audio I/O includes balanced XLR and unbalanced RCA inputs plus a built-in 4-channel audio mixer and de-embedded audio support. PTZ control supports multiple protocols including VISCA, Pelco and ONVIF to ensure integration with existing control systems.

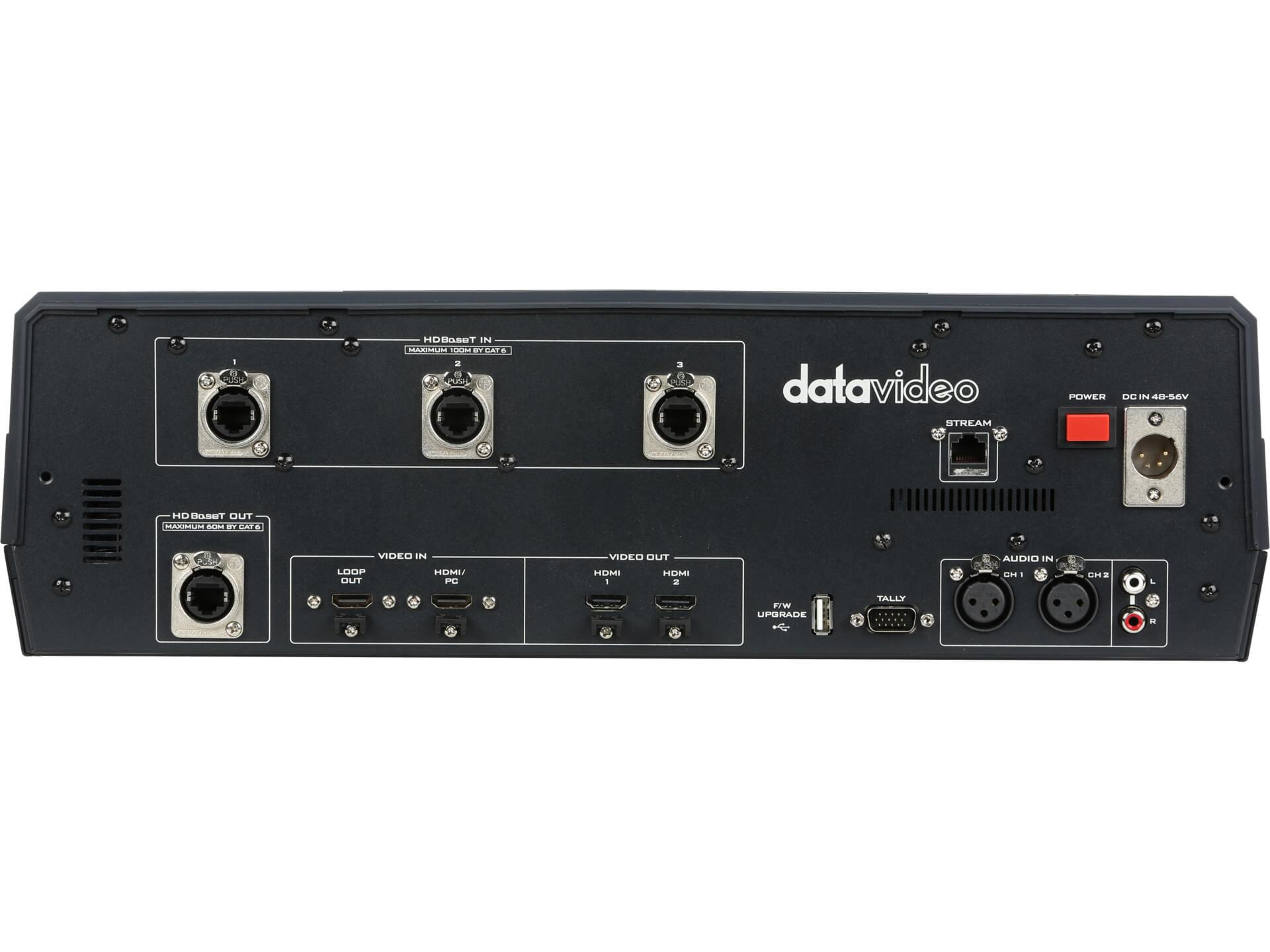

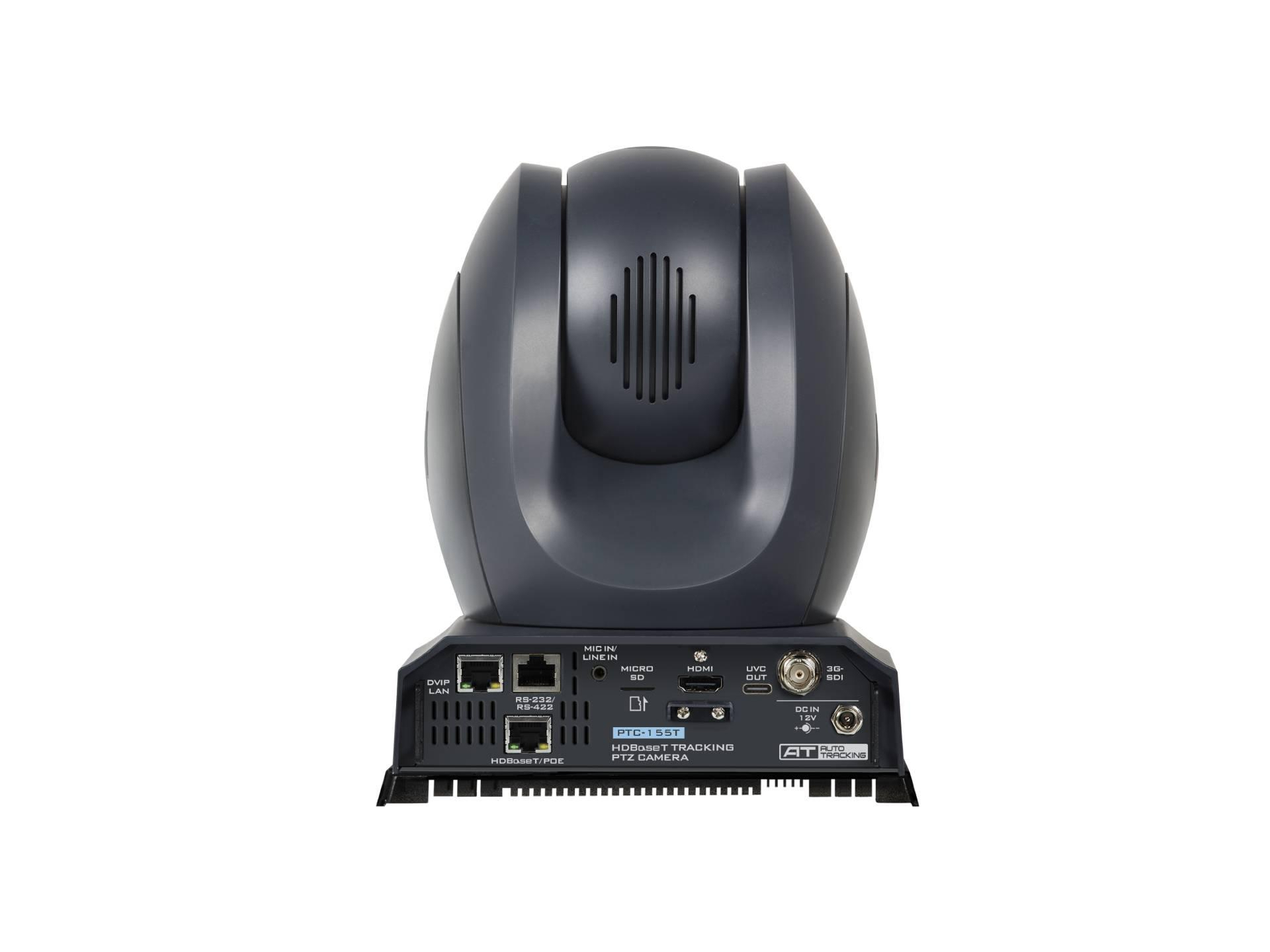

Connectivity is comprehensive – multiple HDBaseT inputs, HDMI program outputs, 3G-SDI and UVC capability are supported depending on camera output mode. Network streaming supports RTMP(S), RTSP, SRT and HLS with configurable bitrates and AAC audio encoding. Camera control and firmware updates are available via web UI or RS-422/RS-232 where supported for remote management.
This solution fits a range of real-world scenarios including houses of worship, lecture capture, corporate presentations and live events where a compact single-operator workflow is required. Its auto tracking and preset framing options allow quick transitions between full body, half body and close-up shots without manual operator intervention. The dual-lens PTZ design helps keep wide-area context while isolating the tracked talent for program output.
Setup is plug-and-play via Cat-6A HDBaseT connections and a single power rail for the main unit, reducing installation time on site. The reinforced portable case houses the touchscreen controller and monitoring display for transport and field use. Firmware upgradeability future-proofs the system by enabling new features without replacing hardware.
