Description

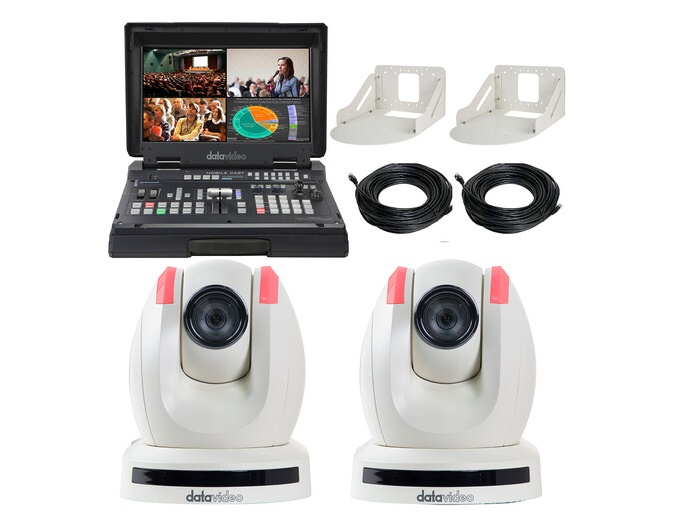

Download Manual This Sku combines following items:
- HS-1600T MARK II: 4-Channel HD/SD HDBaseT Portable Video Streaming Studio
- PTC-140T: 2-PTC-140T’s Cameras
- WM-1: 2 WM-1’S FREE WITH PACKAGE
- CAT6 (CB-CAT6-100): 2 – 100FT Cables

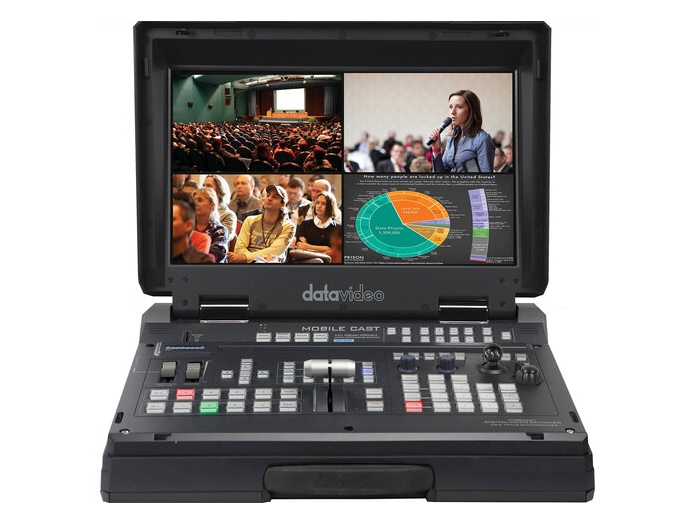

HS-1600T MARK II
Datavideo’s HS-1600T MKII Hand-carry Mobile Switcher, the cutting-edge technology that supports Full HD 1080P, is designed for broadcast of live events and TV programs with a need for mixing a wide variety of video and audio sources. The HS-1600T MKII is a highly valuable solution for religion, education and AV markets.
With its built-in HDBaseT technology, HS-1600T MKII is able to accept the Full HD 1080p video format from three PTC-150T HDBaseT PTZ Cameras through three individual CAT-6 cables. Each cable runs up to 100 meters. While shooting in the field, the PoE feature serves to power the three PTC-150T devices. The PoE feature can also be used in the field where long-distance transmission is required.
The HS-1600T MKII also features an audio mixer with balance XLR inputs and unbalance RCA audio inputs; more features include PIP, WIPE Generator and Tally.
The HS-1600T MKII has a Joystick that allows the user to Pan, Tilt and Zoom the PTC-150T camera. In addition, the HS-1600T MKII also allows the user to adjust the PTC-150T’s Focus, IRIS and other settings.
HS-1600T MKII also features an easy-to-use video streaming and recording device for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.
Features:
- Full HD 1080P Video Format
- Built-in HDBaseT technology to connect three PTC-150T HDBaseT PTZ Cameras through three CAT6 (or higher) cables with each cable running up to 100 meters.
- PoE technology to Power the PTC-150Ts
- Joystick Pan, Tilt and Zoom with speed control
- Iris, Focus, and Gain Control as well as other PTC-150T camera functions
- Simultaneous Live Streaming & Recording
- Broadcast quality HD / SD H.264 network streaming over RTMP(S), RTSP, TS, and HLS
- Support different bitrates for recording and streaming
- 4 Video Inputs (RJ-45 x 3 + HDMI x 1)
- 3 Video Outputs (RJ-45 x 1 + HDMI x 2)
- Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2
- Versatile Mix Effects: PIP, WIPE, Mix and Fades
- Tally Output
- One 17.3-inch monitor with a resolution of 1920×1080

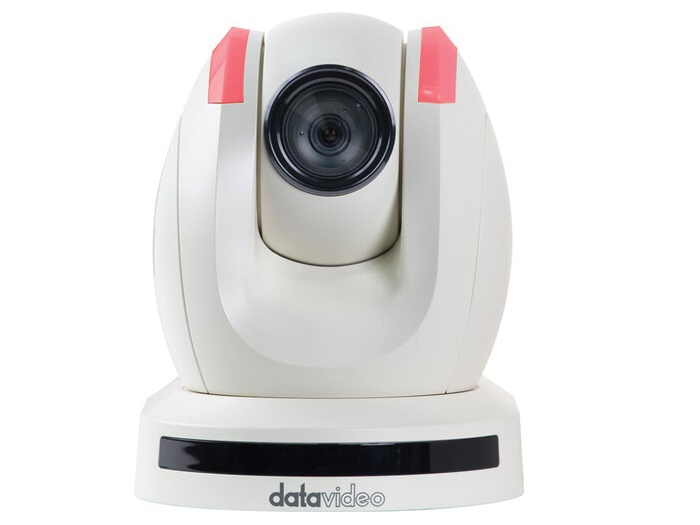

PTC-140T
The PTC-140T is a low-cost HDBT PTZ camera, which features PoE functionality, 20x optical zoom, 10 digital zoom, transmitting the uncompressed video up to 100 meters (1080p60/50). The PTC-140T is an IP camera as well, supports H.264 /H.265 video compression and dual stream output.
Features:
- 1/2.8 inch CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Low Noise CMOS effectively ensures high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface
- Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.
- Supports H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Supports multiple network protocols including RTSP, RTMP and it also supports easy to link streaming media server.
WM-1
The WM-1 is a wall mount kit which is designed for Datavideo HD/SD PTZ Camera series including PTC-150/PTC-150T/PTC-200/PTC-200T. The three-piece design is easy to install onto any wall using the included mounting kit
Features:
- Versatile: The WM-1 can be positioned upside-down or rightside-up.
- Durable: The WM-1 is made of steel for durability and endurance (weight: 1.37kg=3.02lb)
