Description

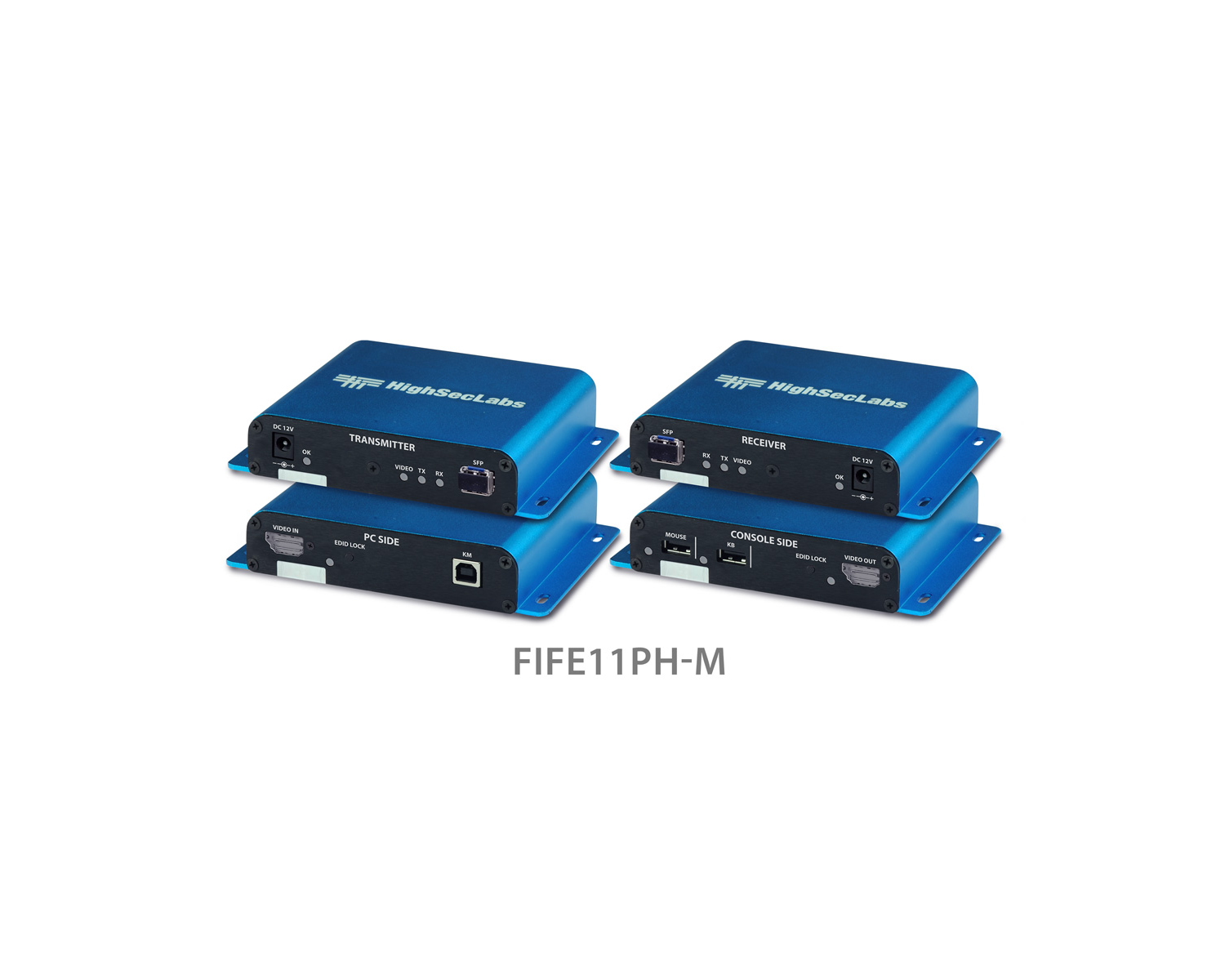

The DP/HDMI Secure Fiber KVM Extender Pair provides a NIAP PP4.0 compliant solution to extend computer video and USB keyboard/mouse over fiber for secure environments. It isolates and filters signals to prevent peripheral-borne threats while maintaining high-quality video and low latency. The system includes a transmitter and receiver pair engineered for long-distance links up to 10km.
Key features include combined DP/HDMI connectors for device flexibility, support for UHD 4K video at 3840×2160@30Hz, and SFP-based fiber linking for singlemode distances. The extender uses Valence HDBaseT technology to deliver zero-latency operation between TX and RX units. NIAP Common Criteria PP4.0 PSD protection profile compliance is included to meet government and high-security deployment requirements.
Performance supports 4K30 resolution and maintains signal integrity over long distances up to 10km when using appropriate fiber modules. USB HID support for keyboard and mouse is provided via USB Type A on the console side and USB Type B on the transmitter. Power options include PoE on applicable models and external 12V DC power for RX/TX units as specified.
Connectivity is flexible with DP/HDMI combined display ports, SFP link ports for fiber, and USB ports for user input devices. Models exist with RJ45 or SFP link ports depending on deployment requirements, and supported operating systems include Windows, Linux, and Mac. The product supports common AV and KVM workflows while enforcing a unidirectional or filtered signal path to protect host networks.
Typical use cases include classified workstation separation, command and control rooms, secure SCADA access, and broadcast facility isolation where peripheral risk must be mitigated. The unit is suited to installations requiring certified protection profiles and long-distance console placement away from sensitive equipment. It enables operators to view and control systems without exposing secure networks to untrusted endpoints.
Installation is straightforward with compact form factor hardware and standard external power supplies. The compact TX and RX enclosures measure 145 x 105 x 28 mm and are lightweight for easy mounting or desktop placement. The product is backed by a two year warranty and designed for 10 year product life-cycle support to aid long-term deployments.
