| Part Number |

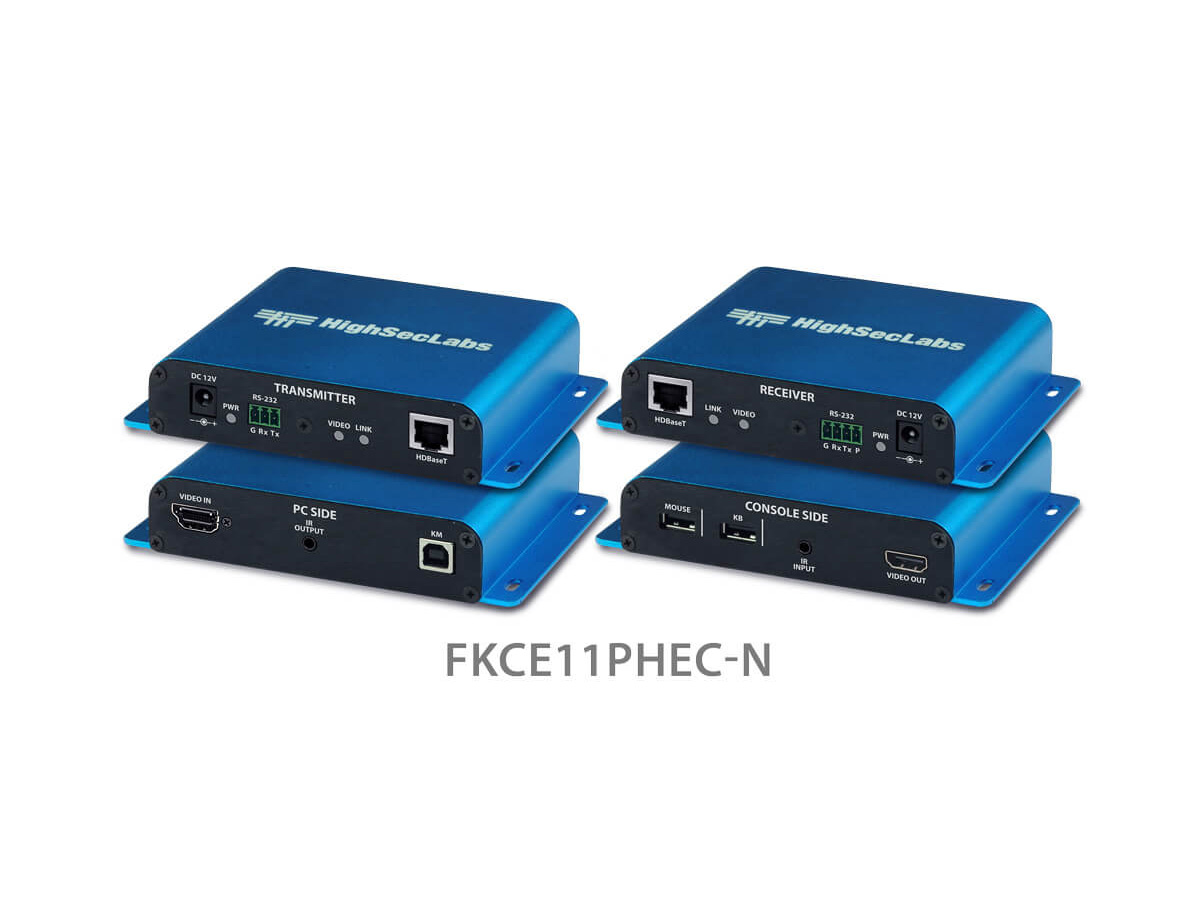

FKCE11PHEC -N |
| No. of Sources |
1 |
| Extension type |
Copper |
| Link Port |
RJ45 |
| RECEIVER UNIT (RX) |
FKCE11PHECR-N |
| CONSOLE PORTS - Displays/Projectors ports |
1x DP/HDMI |
| Max Output Resolution |
UHD 4K resolutions up to 3840x2160 @ 30 Hz Up to70m** |
| Mouse and Keyboard |
2 x USB 2.0 Type A |
| Audio OUT Jack |
N/A |
| IR Remote Port |
Mini PL (IN) |
| RS232 |
Terminal Block |
| TRANSMITTER UNIT (TX) |
FKCE11PHECT-N |
| COMPUTER PORTS - Displays Type |
1 x DP/HDMI |
| COMPUTER PORTS - Mouse and Keyboard |
USB 2.0 Type B |
| Audio IN Jack |
N/A |
| IR Remote Port (TX) |
Mini PL (OUT) |
| RCU |
Terminal Block |
| POWER (TX/RX) - PoE |
PoC |
| Power Requirements |
Transmitter: 12V DC Receiver: 12V DC optional |
| AC Input |
100 to 240 AC |
| Power Supply Type |
External |
| PHYSICAL - Dimensions |
145 (W) x 105 (D) x 28 (H) mm / 5.8 (W) x 4.2 (D) x 1.1 (H) inch (Transmitter and Receiver) |
| Weight |
0.64 kg (1.4 lbs) (Transmitter and Receiver) |
| ENVIRONMENTAL - Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Humidity |
0%-80% RH, non-condensing |
| SOFTWARE - Supported OS |
Windows, Linux, Mac |
| CERTIFICATION - Product Certification |
CE, RCM, FCC class B, VCCI, TUV US, TUV Canada |
| Manufactured |
BAA & TAA Compliant |
| Product life-cycle |
10 years |
| Warranty |
2 Years |
