Description
HSL’s family of all-in-one universal docking stations is the ideal peripheral connectivity solution for modern computers. The USB-C and Thunderbolt 3.0 docking stations are versatile solutions for workstations, while the extended docking station facilitate connecting guest devices to large conference rooms or auditoriums. All models support high data transfer speeds over LAN, fast charging for connected devices and USB ports for peripheral devices
Download Manual Connectivity
All HSL docking stations are universal and driverless, making them compatible with any operating system (Windows/Mac/Linux) through USB-C or Thunderbolt. They can be seamlessly integrated with HSL’s rich portfolio of KVM switching solutions.
The extended docking station supports up to 100m between the docking station transmitter and the receiver through an HDBaseT connection.
Desktop Docking Stations
The desktop docking stations include 4 USB ports for a wide range of computer peripherals along with a LAN interface. The USB-C docking station supports a dual monitor workstation with combo HDMI /DisplayPort connection ports, while the Thunderbolt 3.0 docking station supports a dual monitor setup through two DisplayPort connections.
Remote Docking Stations

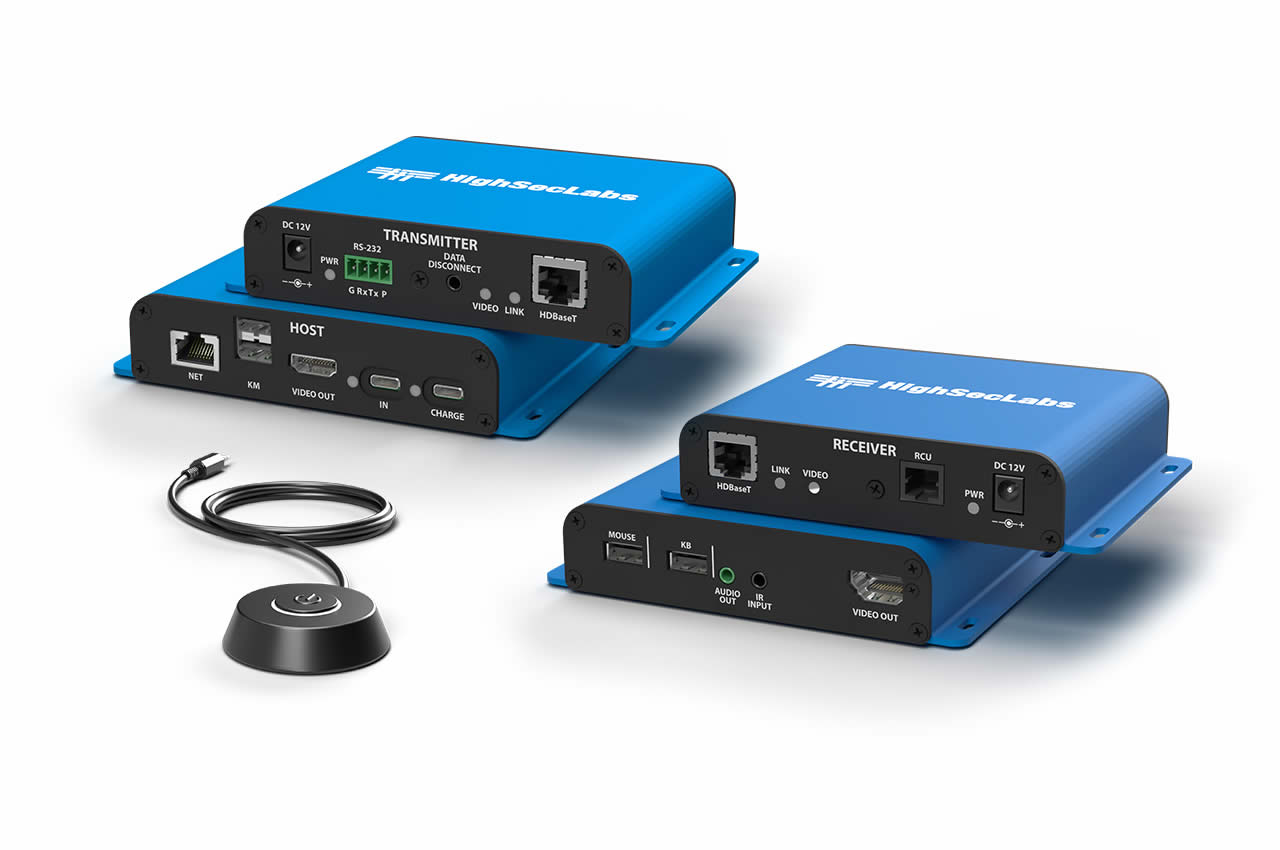

The extended docking station’s transmitter includes 2 USB ports for computer peripherals along with a LAN interface, a single HDMI output connection, an RS-232 connection, An IR port, and an HDBaseT connection.
The receiver supports a single monitor through a combo HDMI/ DisplayPort connection port, two USB ports for computer peripherals, an audio output connection, an RCU port, an IR port, and an HDBaseT connection.
Features
- TAA & BAA compliant
- USB-C / Thunderbolt single-cable docking
- Dual head support for extended desktop displays
- Combo HDMI and DisplayPort connector ports
- Rugged design, ideal for under-the-table mounting
- Rack mountable
- Driverless docking station
- 100W power delivery (PD 3.0)
