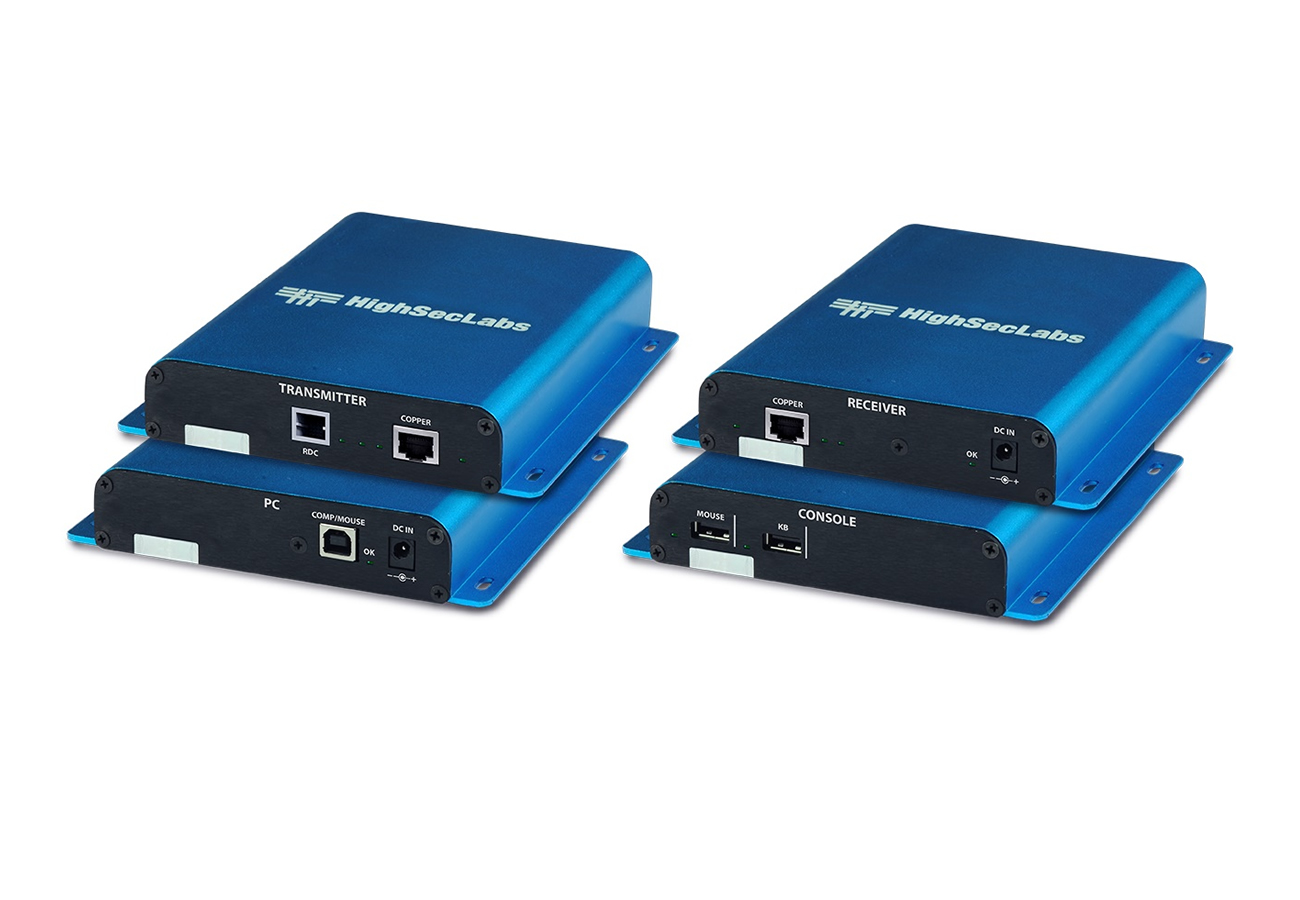

High Sec Labs FMCE10N-N KM USB 2.0 copper extender 100 meter

In Stock

$805.00

Business price

Shipping Info

Free ground shipping on select $300+ orders in the contiguous US.

Payment Methods

Mastercard, Visa, American Express, Discover, PayPal

Return Policy

We offer 30-Day money back guarantee of the purchase date.

Description

Enable long-distance extension of computer video, audio, keyboard/mouse, and IR remote signals, using high performance HDBaseT technology

HDbaseT implementation for high quality and low latency video
FKCE11PH-N – 4K 30HZ 4:4:4 or 4K 60HZ 4:2:0 support over 100m
FKFE11PH-N – 4K 30HZ 4:4:4 or 4K 60HZ 4:2:0 support over 10KM of fiber extension
FMCE10N-N – High Speed USB extension for devices such as HID, MSD, Cameras, Audio and other USB devices
Unique DPHDMI connector allowing the user to connect and HDMI source to a DP target and vice versa
RS232, IR and Audio extension built in for interoperability support
FKCE11PH-N and FMCE10N-N – support POE via TX power supply for easier installation on RX side
Wide screen support and adaptive EDID to achieve optimum performance and video quality
Easy rack mount Installation with the “RK-4U-HKS-10” – 4U Rack Mount KIT
Easy power delivery with HSL’s 12 and 24 ports, 12V and 48V power distributed units.

PART NUMBER	FKCE11PH-N	FMCE10N-N	FKFE11PH-N
No. of Sources	1	1	1
Extension Type	Copper	Copper	Fiber
Link Port	RJ45	RJ45	SFP Data speed: 1.25 Gbps Wavelength: 1300nm Fiber optical connector: LC Single Mode Fiber
RECEIVER UNIT (RX)
Model	FKCE11PHR-N	FMCE10NR-N	FKFE11PHR-N
Displays/Projectors Ports	1x DP/HDMI 2.0	N/A	1x DP/HDMI 2.0
Max Output Resolution	UHD 4K (3840x2160 @ 60Hz) up to 100m	N/A	UHD 4K (3840x2160 @ 60Hz) up to 10km
Mouse and Keyboard	2 x USB Type A 2.0	2 x USB Type A 2.1	2 x USB Type A 2.2
Audio Out	3.5 mm Jack	N/A	3.5 mm Jack
IR Remote Port	Mini PL (IN)	N/A	Mini PL (IN)
RS232	RJ14 (OUT)	N/A	RJ14 (OUT)
TRANSMITTER UNIT (TX)
Model	FKCE11PHT-N	FMCE10NT-N	FKFE11PHT-N
Displays Type	1 x DP/HDMI 2.0	N/A	1 x DP/HDMI 2.0
Max Output Resolution	UHD 4K (3840x2160 @ 60Hz) up to 100m	N/A	UHD 4K (3840x2160 @ 60Hz) up to 100m
Mouse and Keyboard	USB Type B 2.0	USB Type B 2.1	USB Type B 2.2
Audio Out	3.5 mm Jack	N/A	3.5 mm Jack
IR Remote Port	Mini PL (OUT)	N/A	Mini PL (OUT)
RCU	RJ14 (IN)	N/A	RJ14 (IN)
POWER (TX/RX)
PoE	Yes	No	No
Power Requirements	Transmitter: 48V DC Receiver: 12V DC (Optional)	Transmitter: 48V DC Receiver: 12V DC (Optional)	12V DC
AC Input	100–240V AC	100–240V AC	100–240V AC
Power Type	External	External	External

Weight	4.00 lbs
