Description
The FV11H-MGH is a single-port galvanic HDMI video isolator designed to enforce electrical isolation between display equipment and medical computers. It provides full galvanic separation of DC and ground currents to reduce risk of leakage and cross-contamination between systems. The unit is supplied with a medical grade power supply and meets key medical safety standards.
This isolator supports up to 3840×2160 at 30 Hz and uses HDMI 1.4 signalling to preserve video quality across the isolated boundary. Galvanic isolation rating is 3KV which prevents ground loops and limits fault currents. The device protects EDID and prevents signalling attacks through patented emulated EDID and ROM firmware.
Technical performance includes single HDMI console and single HDMI computer port with HDMI 1.4 display type compatibility. The unit accepts DC 12V/2.5A input and operates across a 0 to 40 C ambient range. It is compact at 145 x 105 x 28 mm and weighs 0.3 kg, making it simple to deploy at the point of use.

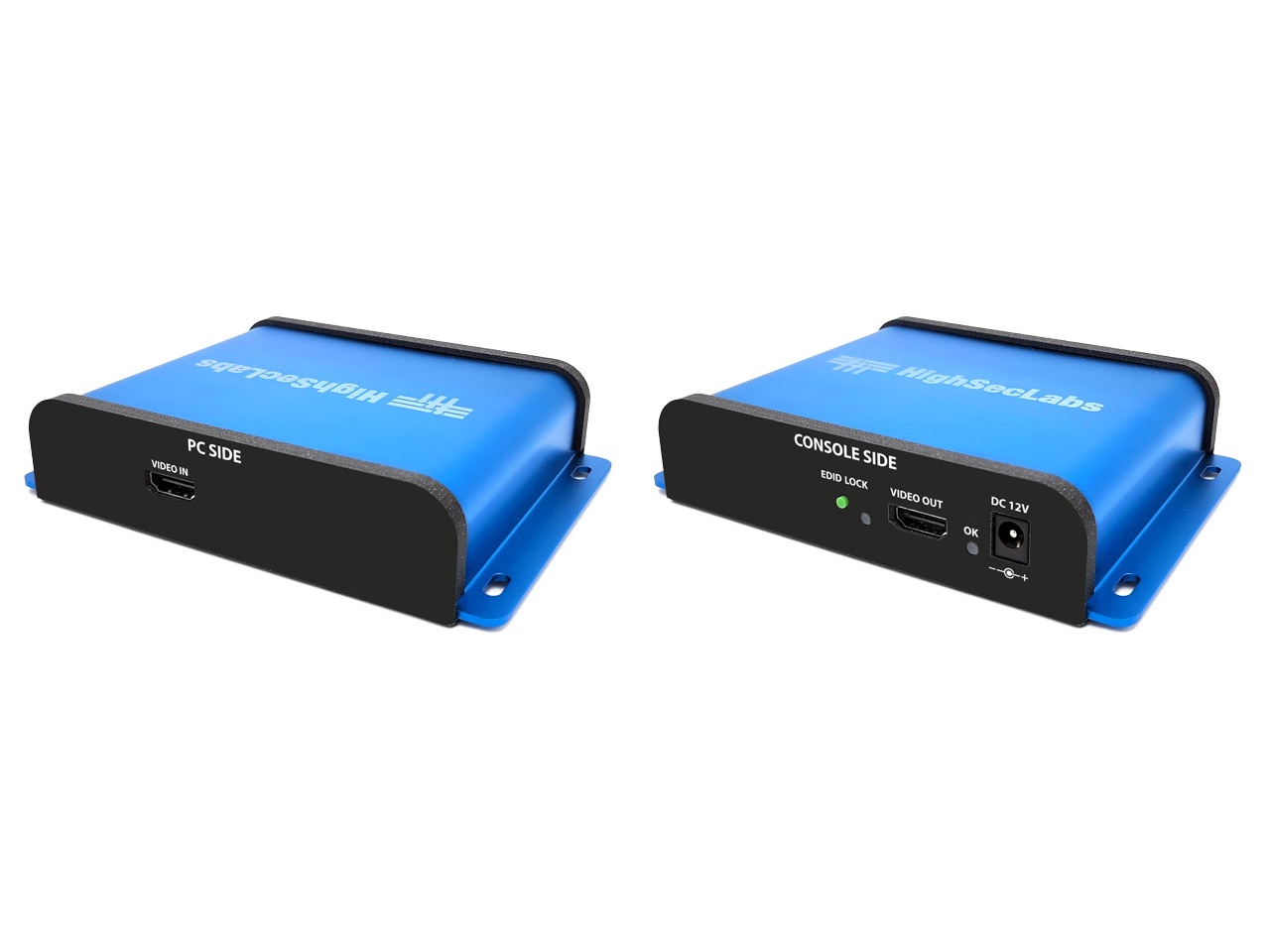

Connectivity is straightforward with one HDMI input and one HDMI output and no USB console ports on this model. Supported host operating systems include Windows, Linux and Mac for display-only applications. The product is compatible with rack mounting accessories and power distribution options for centralized installations.
Typical applications include medical imaging suites, clinical workstations and secure diagnostic displays where patient safety and data isolation are required. The medical grade external power supply and IEC60601 certifications enable placement in regulated clinical environments. It is also suitable for defence or classified environments where galvanic separation is required.
Installation is plug-and-play with EDID protection and no firmware updates required since firmware is stored in ROM. The unit is BAA and TAA compliant, carries a two year warranty and a 10 year product life-cycle guideline. The compact metal enclosure supports reliable long-term operation in clinical and secure AV installations.
