Description

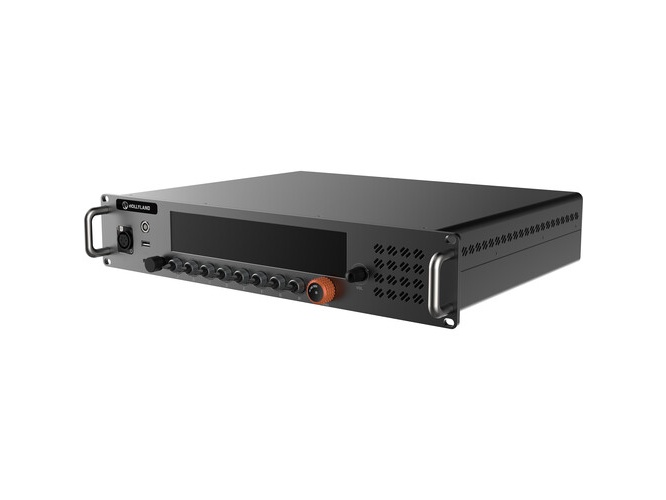

The Geo Central Station is a centralized wireless intercom hub designed to expand the Solidcom H1 system and provide scalable team communications – it increases system capacity and centralizes management for multi-zone operations. It supports up to 80 beltpacks and organizes communications into multiple independent groups to keep departments coordinated. The unit enables cloud connectivity and remote support to simplify deployments and ongoing maintenance.
Key features include wide line-of-sight coverage up to 1640.4 ft / 500 m, seamless roaming across coverage zones, and support for up to 100 independent groups – these capabilities reduce handoffs and channel congestion across large venues. The station integrates Dante audio networking and additional interfaces to fit into professional AV ecosystems. It also supports both analog and digital hybrid wireless connectivity for mixed deployments.
Technical performance delivers reliable power and compatibility with common AC infrastructures – the base supports a 46 to 54 VDC adapter and accepts 85 to 264 VAC 50/60 Hz input while consuming 44 W. Operating temperature range spans 14 to 113 F / -10 to 45 C to accommodate indoor and sheltered outdoor installations. Physical dimensions are 19 x 15.2 x 3.5 in / 482.6 x 385 x 88.1 mm allowing standard rack mounting and integration into broadcast racks.

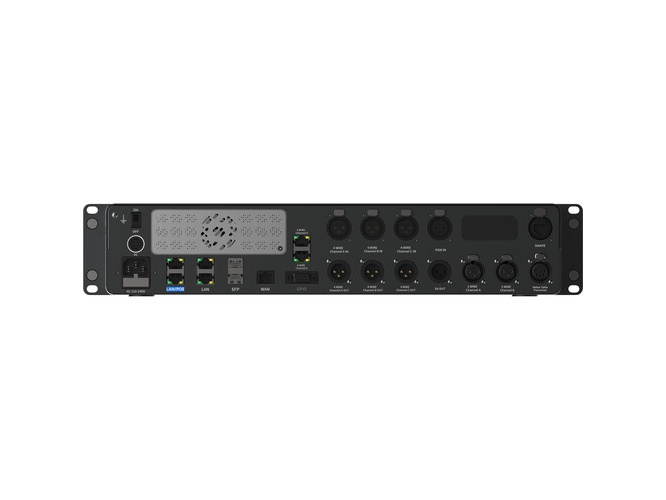

Connectivity includes Dante audio networking plus other audio and control interfaces to integrate with comms and broadcast systems – the station also provides Wi-Fi and Bluetooth antenna connectivity for remote management. The system includes a gooseneck microphone and adapter cable options for console and operator use. Remote firmware updates and troubleshooting are supported via cloud communication to reduce onsite service time.
Typical use cases include live broadcast productions, multi-stage concerts, corporate events, and film sets where large crews require segmented intercom groups and roaming across zones. The Geo Central Station is optimized to centralize communications while maintaining low-latency voice links. Administrators can create up to 100 groups for department-level talk paths while keeping overall channel traffic organized.
Installation is straightforward with rack-friendly dimensions and familiar AC power ranges – included accessories simplify setup and eliminate the need for additional licenses. The build quality is suited to production environments and the system is engineered for continuous operation and remote management. Overall, the Geo Central Station expands Solidcom H1 capacity and integrates into modern AV networks to deliver dependable team communications.
