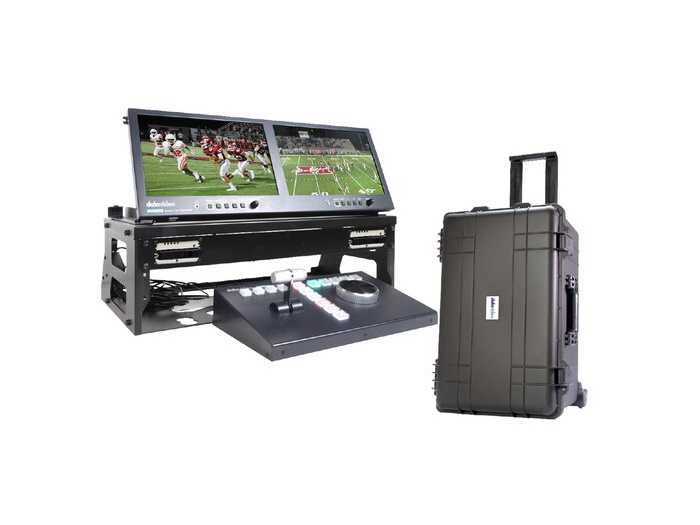

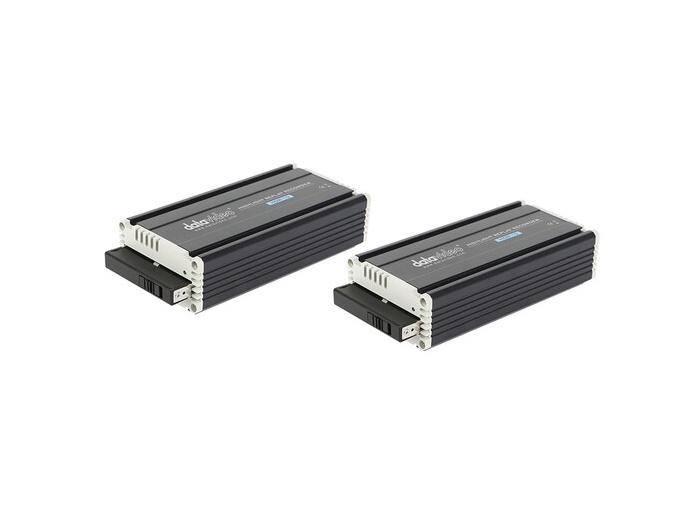

Datavideo HDR-10 Highlight Replay Recorder with HD/SD-SDI Input and Output
The Datavideo HDR-10 Highlight Replay Recorder with HD/SD-SDI Input and Output is a single-channel replay solution that is suitable for club teams, high school sporting events, coaches training, and smaller productions needing replay. It constantly buffers the past 30 seconds of program-out signal (or any ISO signal connected) on its internal 4GB buffer. Using a jog shuttle control (available separately), you can scan back the past 30 seconds to play at any point and at any speed on a separate monitor. In addition, the jog shuttle control lets you mark and record highlights from a sporting event, then instantly play it back on your switcher with ease. Since the HDR-10 is a standalone unit, it can be used without a switcher if only one camera is being used for an event. Video replay clips can be stored on a removable solid state drive (available separately) for future playback or highlight reel.
Features:
- Single-channel 3G/HD/SD- SDI input, output and loop-through with embedded audio
- Internal 4GB buffer to capture and review the event
- Jog/shuttle knob as a control input device (available separately)
- GPI interface allows other devices such as switcher to trigger the playback
- Recorded videos are saved in MOV format
- Supports NTFS format without 2/4GB file size limitation
- LISN (Local Interconnect Synchronous Network) connection between the main unit, remote controller, and other devices

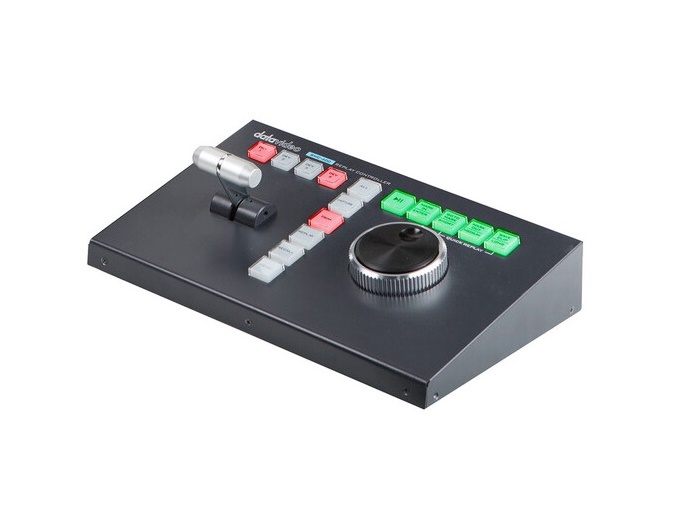

Datavideo RMC-400 Replay Controller for HDR-10 Recorder
The Datavideo RMC-400 allows you to control up to four HDR-10 replay recorders over USB connectivity via four mini USB ports on the rear. It allows you to capture, edit, and replay any scenes during a sporting event.
A simple press of the “capture” button brings you into capture mode, where live action is monitored and a potential highlight is flagged. You can also save the captured scenes to the memory buffer and load previously saved clips for replay. When working with 1080p resolution, up to 385 frames can be stored to the memory buffer. Up to 770 frames are supported in 1080i, and up to 1712 frames in 720p.
Familiar controls include a T-bar that lets you set the replay speed, and a jog/shuttle wheel for browsing through the clip that you’re editing.
Features:
- Synchronized remote control of up to four HDR-10 Replay Recorders
- GPI interface allows other devices, such as a switcher, to trigger playback
- T-bar for replay playback with smooth variable speed adjustment
- Jog/shuttle dial for browsing through the clip being edited

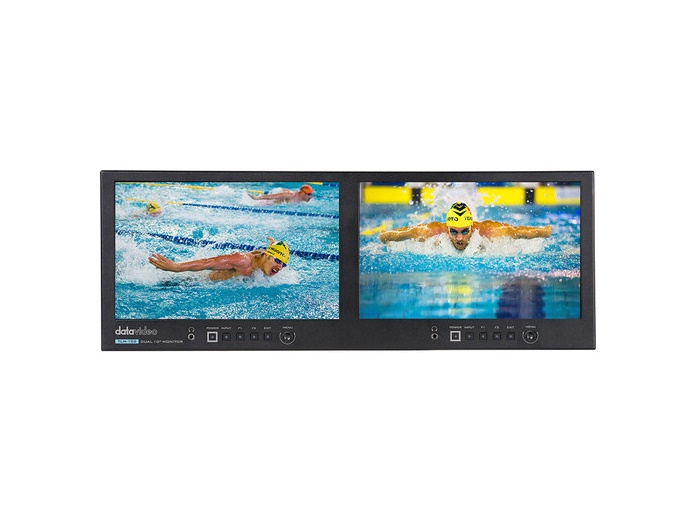

Datavideo 10″ Dual IPS LCD Monitor
The 10″ Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.
Features:
- 1280 x 800 IPS panel resolution
- Dual monitor
- 4 RU rackmount
- Supports 3G-SDI and HDMI video input with loop-through output
- Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field
- SDI/HDMI cross conversion
- Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
- Color temperature adjustment
- Front panel headphone jacks
- User-definable function buttons (F1, F2)

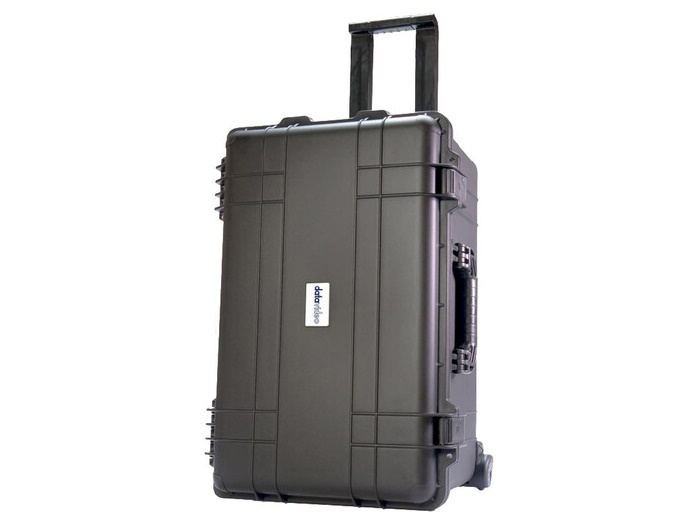

Datavideo Wheeled Trolley-Style Water-Resistant Case (XXL)
The XXL Wheeled Trolley-Style Water-Resistant Case from Datavideo is a heavy-duty trunk-style equipment case. Use it to transport and store video, audio, or photo equipment and accessories. This trunk-shaped, hard-shell case is water-, dust-, and crush-resistant. Integrated padlock inserts and rubber seals provide additional security.
This case’s interior includes one foam piece in the lid and three foam fittings in the main compartment. Wheel the case along using the retractable handle or grasp it using the large, hinged top handle.
Features:
- Trunk-style wheeled case with a foam interior, a retractable handle, and a hinged top handle
- Water-, dust-, and crush-resistant hard case with rubber seals and padlock inserts
Note: This kit does not include a production switcher or cameras.
