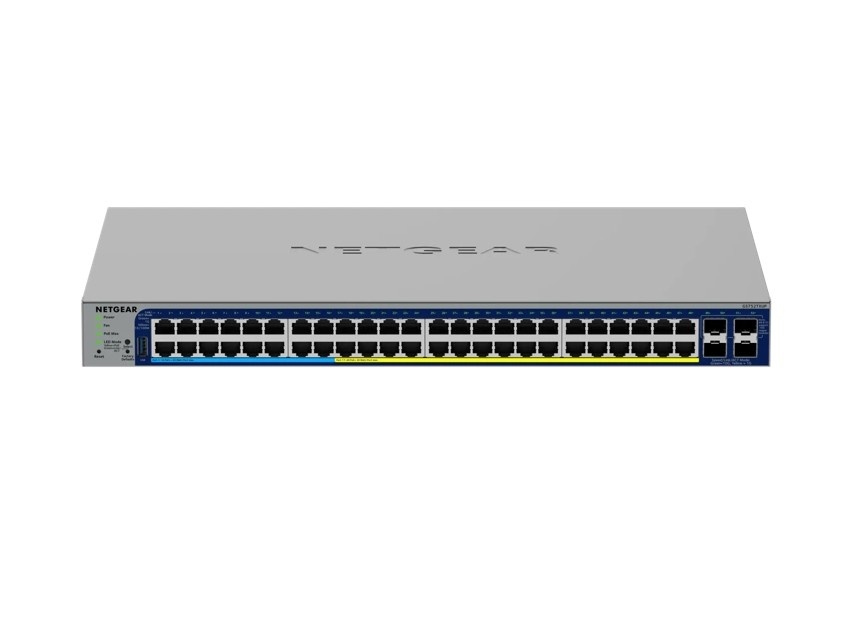

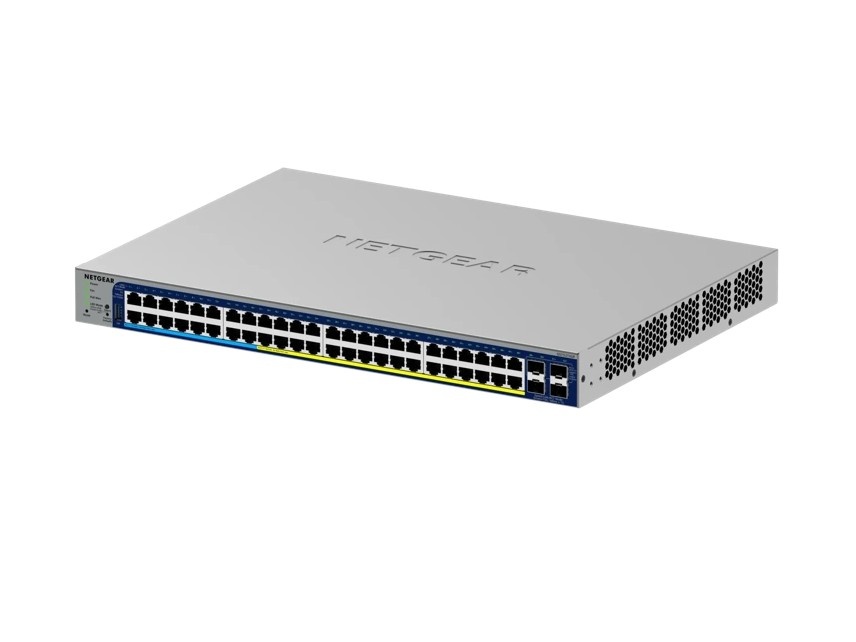

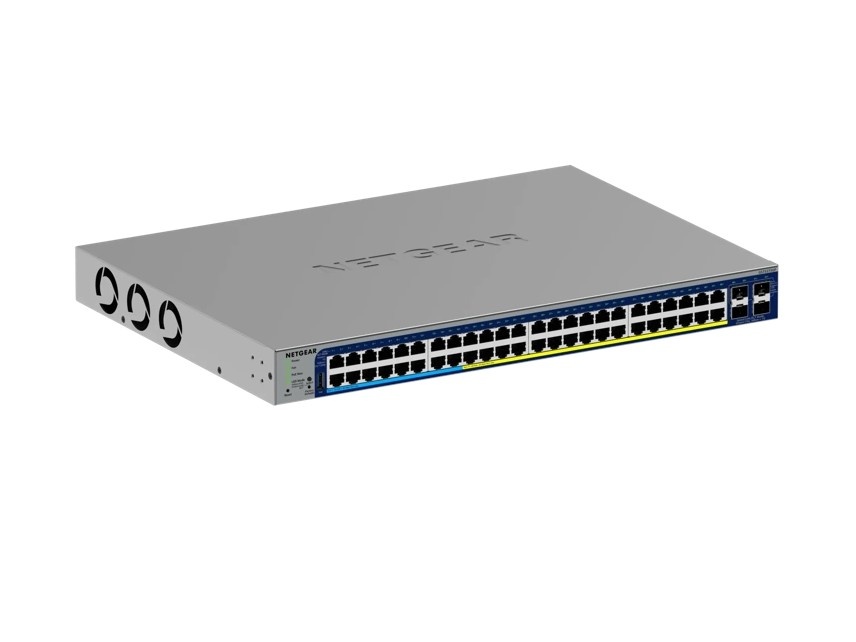

Download Manual NETGEAR GS752TX-300NAS is a 48-port Gigabit Ethernet smart switch that includes four 10G SFP+ ports. The GS752TX-300NAS operates as a standalone smart switch suitable for converged networks and offers optional remote/cloud management.

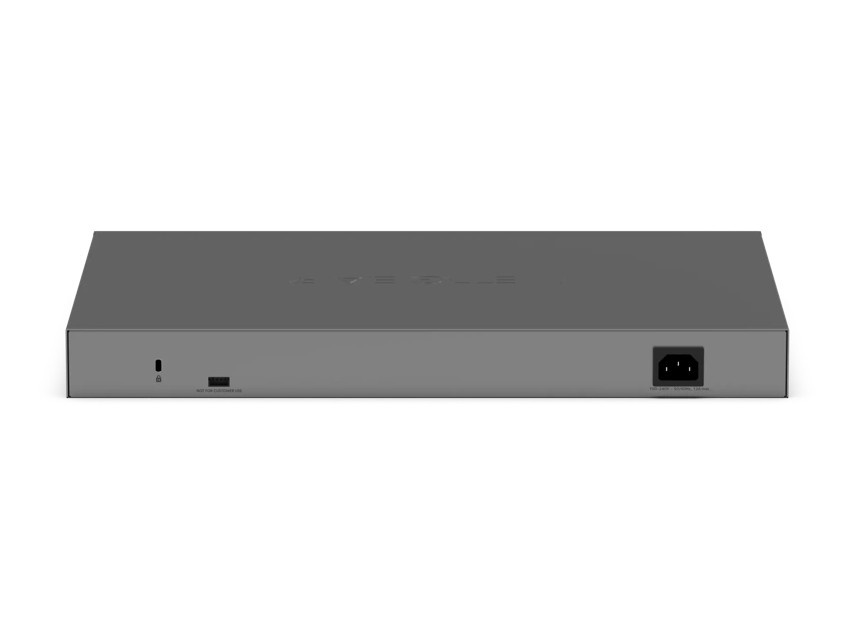

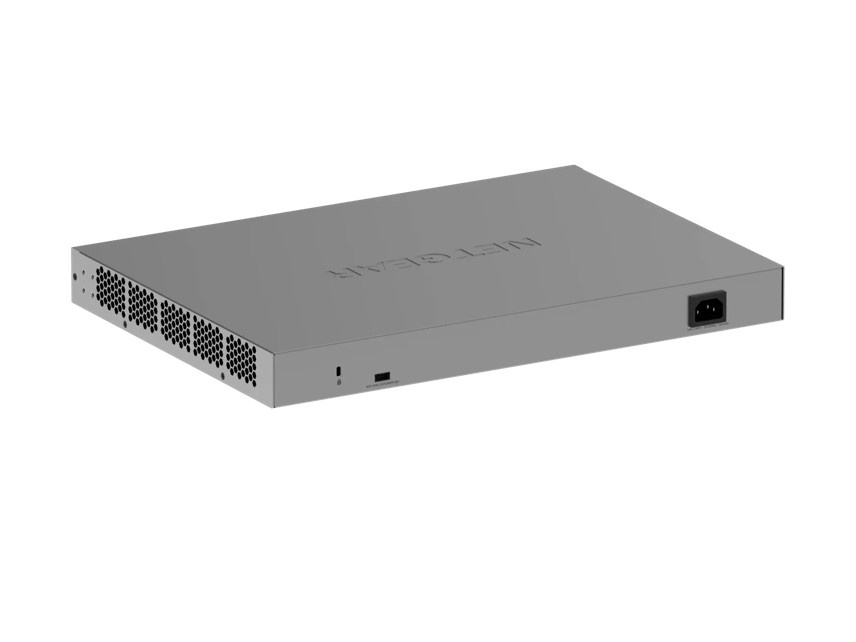

The switch provides Layer 2/3 capabilities such as VLAN routing, dynamic VLAN assignment, static routes and MLD snooping, plus DoS prevention for improved network segmentation and security. Hardware characteristics include an internal power supply, dual fans and a compact 1U form factor.
Performance data from the unit includes 16K MAC entries, 1.5MB buffer memory, 512 VLANs supported and a host ARP table of 512 entries. Power consumption without PoE is 43W and MTBF is specified at 346,910 hours.
Key Features:- Port Density: 48 x 10/100/1000Base-T RJ45 ports and 4 x 10G SFP+ ports to support high-density access and uplink aggregation
- Layer 2/3 Controls: VLAN routing, dynamic VLAN assignment and static routing to segment and route traffic
- Performance: 16K MAC entries, 1.5MB buffer, host ARP table 512 for stable MAC learning and buffering
- Reliability: Internal power supply, dual fans and MTBF 346,910 hours for continuous operation
- Energy & Noise: Max consumption 43W without PoE and acoustic noise 32.5dBA at 25C
- Campus Networks: aggregate user access switches into distribution layers using 10G SFP+ uplinks
- Branch Offices: remote management via Insight for centralized monitoring of distributed sites
- Server Access: 10G SFP+ ports for high-bandwidth server or storage uplinks
