Description

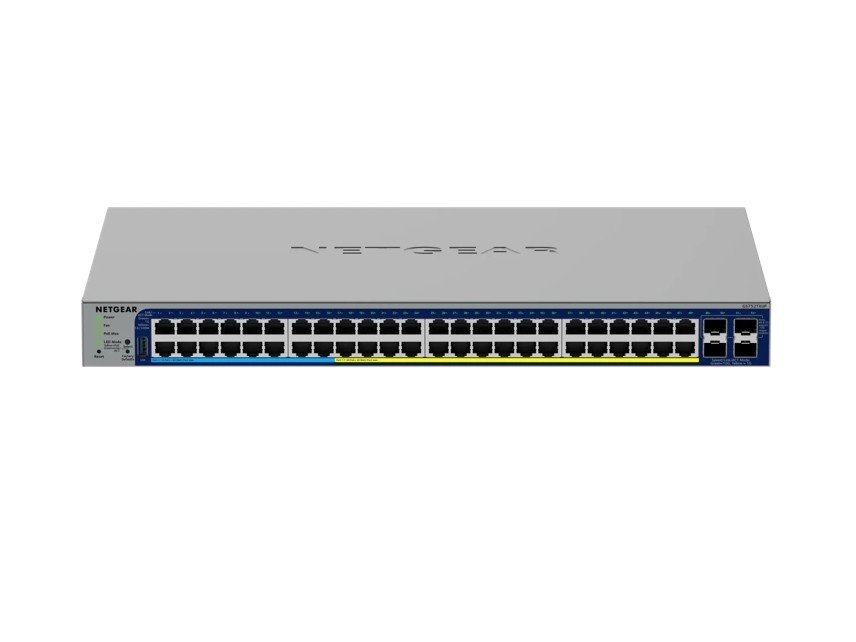

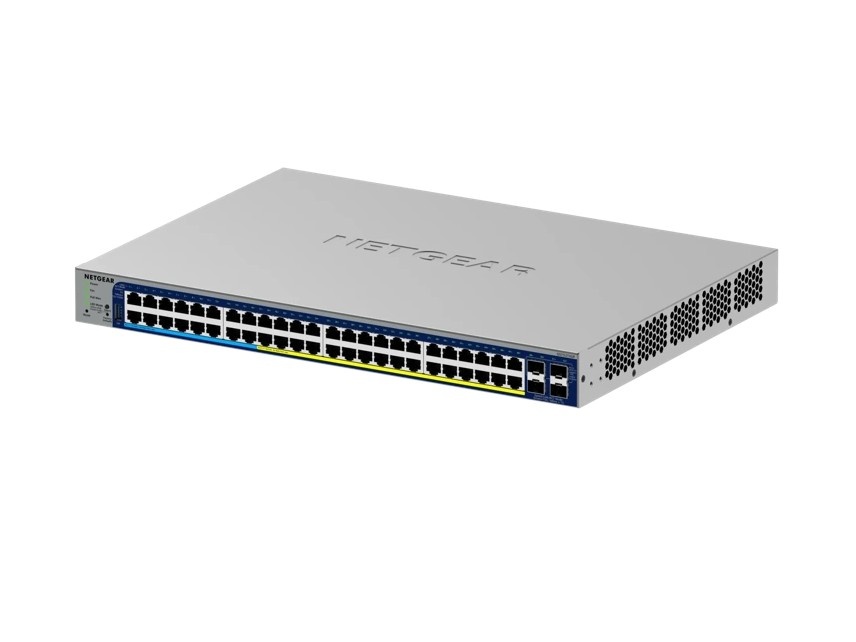

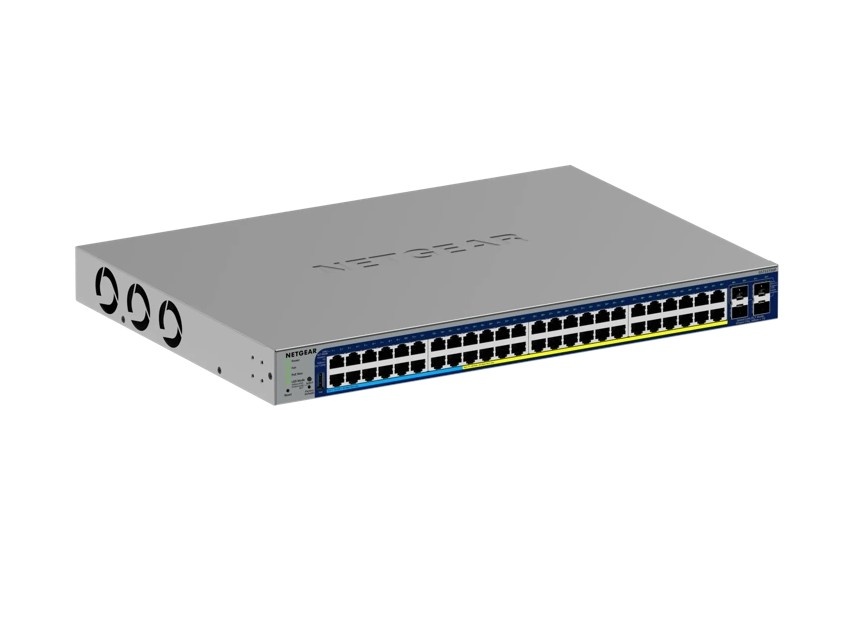

Download Manual NETGEAR GS752TXUP-300NAS is a 48-port Gigabit PoE+ / PoE++ smart switcher that provides up to 640W PoE budget and four 10G SFP+ uplinks to aggregate high-bandwidth traffic across converged networks.
With 32 802.3at PoE+ ports and 16 802.3bt PoE++ ports the GS752TXUP-300NAS powers a mix of cameras, access points and VoIP phones while supporting VLAN routing, dynamic VLAN assignment and a 16K MAC table to maintain large port counts.
Equipped with an internal power supply, dual fans and an included 1-year Insight cloud management subscription the switcher offers centralized remote monitoring and proven operational reliability for IT and AV teams.
Key Features:- 48 Gigabit RJ45 Ports: High-density copper connectivity to attach edge devices and endpoints
- 4 x 10G SFP+ Uplinks: 10G fiber aggregation for uplink/backbone links to distribution/core switches
- 640W PoE Budget: Supports mixed PoE+ and PoE++ devices without external midspans
- Mixed PoE Modes: 32 PoE+ ports and 16 PoE++ ports to power standard and high-draw devices
- Layer 3 Lite: VLAN routing and static routes to optimize traffic segmentation and inter-VLAN delivery
- Robust Hardware: Internal PSU and dual fans with MTBF data for reliable 24/7 operation
- Campus Distribution: Aggregate building access switches and provide PoE to APs and phones across floors
- IP Video / Surveillance: Power and connect PTZ and multi-sensor cameras requiring higher PoE budgets
- Enterprise Edge: Deliver segmented VLAN routing and QoS at the network edge for offices and branch sites
