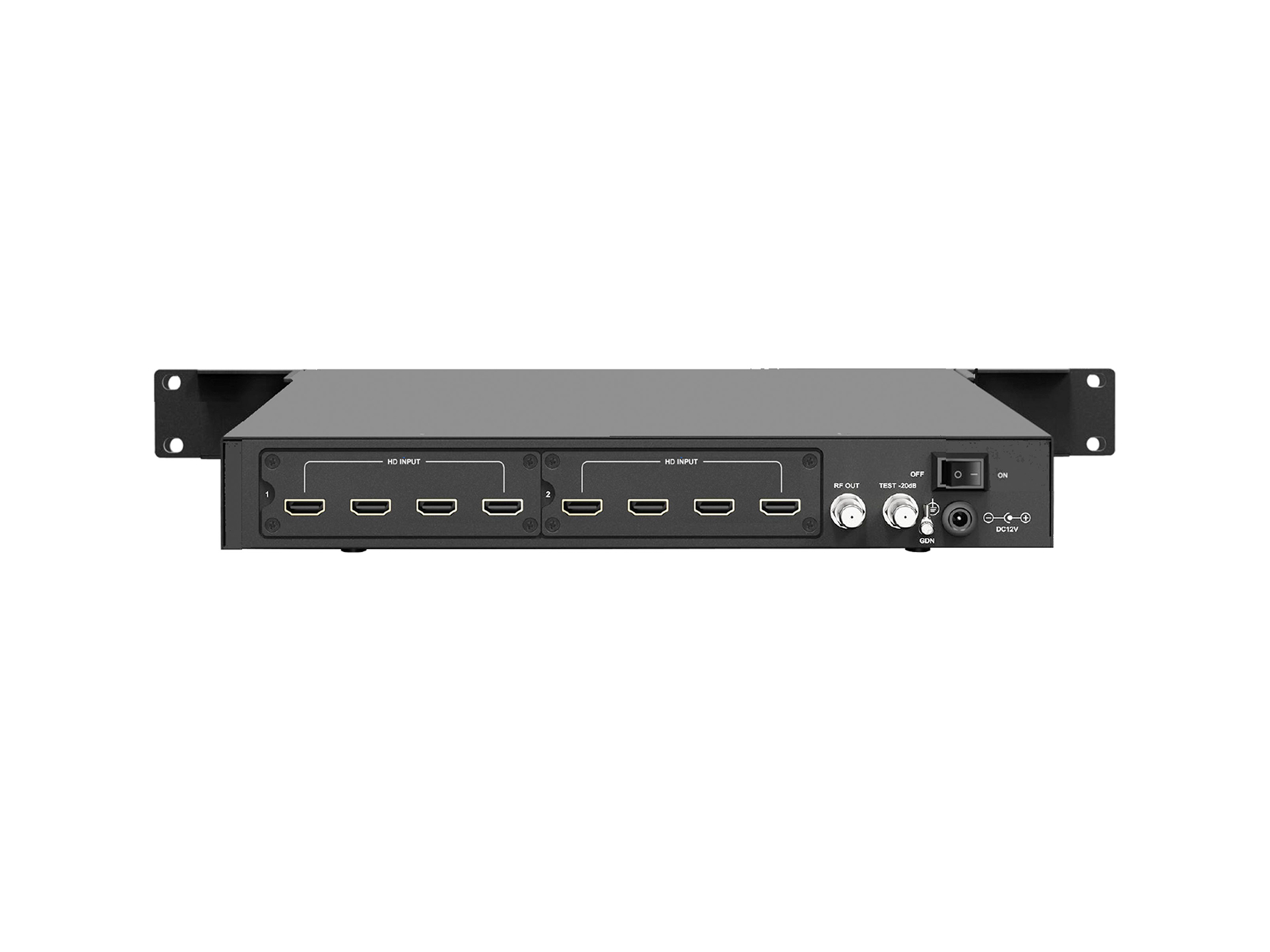

HDb2880i is an HD video encoder/QAM/DVB-T/DVB-C modulator with 8 HDMI inputs up to 1080p/1080i with embedded digital audio. MPEG-2 or H.264 QAM/DVB-T/DVB-C RF and UDP IP Stream output. Rack ears and power supply included. Cables sold separately.
| Power: | 12V/7A, Power Use: 52W max |
| Compliance: | FCC Part 15 Subpart B (Class A), EN/IEC 62368–1, CE, RCM |
| Mounting: | Rack ears shipped attached, 1RU high |
| Cooling: | Four internal cooling fans, Side inlet, Side exhaust |
| Dimensions: (Not including brackets): | 1.73 in. (H) x 12.5 in. (W) x 9.50 in. (D) (44 mm (H) x 317 mm (W) x 241 mm (D)) |
| Carton Dimensions (individual): | 4.1 in. (H) x 18.5 in. (W) x 12.2 in. (D) 104 mm (H) x 470 mm (W) x 311 mm (D) |
| Temperature/Humidity: | Operating +32°F to +113°F (0°C to +45°C) / 10% to 80%, non–condensing |
| Enclosure Type: | Metal |
| Unit Weight: | 5.6 lbs. (2.55 kg) |
| Shipping Weight: | 8.1 lbs. (3.70 kg) |
| Warranty: | 3 Years |
| HDMI x8: | Resolutions Supported:1920 x 1080 @60p, 1920 x 1080 @60i, 1920 x 1080 @50p, 1920 x 1080 @50i, 1920 x 1080 @30p, 1920 x 1080 @25p, 1920 x 1080 @24p, 1280 x 720 @60p, 1280 x 720 @50p |
| Encoder Video Profile: | MPEG2 or H.264 |
| Average Encoding Data Rate: | 18 Mbps per channel (MPEG2) |
| Encoder Audio Profile: | MPEG 1 Layer 2, AAC, AC3 |
| GOP Size: | 16 |
| Traffic Shaping: | Variable Bit Rate |
| Audio Sample Rate: | 32 / 44.1 / 48 kHz |
| Color Profile: | 4:2:0 |
| Video, Audio PID: | Programmable starting value |
| Video Encoding Data Rates: | Variable |
| MPEG2: | 8 — 20 Mbps per channel |
| H.264: | 5 — 20 Mbps per channel |
| Program Information: | Programmable program name, EIT |
| QAM Cable Standard: | HRC, IRC or STD |
| DVB-T Frequency Range: | 470–862 MHz (UHF), 7/8 MHz channel bandwidths |
| Output Power: | +45 dBmV typical |
| QAM Frequency Range: | Single, frequency agile QAM RF CATV channels 2–135• 2kHz resolution• ± 30 ppm accuracy• ± 35 ppm stability |
| DVB-C Frequency Range: | 470–862 MHz, 8 MHz channel bandwidths |
| Output Level Adjust: | 25 — 45 dBmV in 0.5 dB steps (Adjustment is for groups of 4 signals) |
| Modulation Types: | QAM 64/256 (ITU–T J83 Annex B) DVB–T and DVB–C also supported. — [(Selectable) |
| MER: | 34 — 36 dB typical, ?33 dB minimum |
| I/Q Amplitude Imbalance: | < 1% typical |
| IP Streaming: | UDP, MPEG2 or H.264 (Must be same as RF modulation selection), Audio: MPEG1–L2, AAC, AC3 |
| Network Interface: | 10/100 Mbps Ethernet via RJ45 connection. Set IP via DHCP or static (Default 192.168.1.30 /24). Browser–based interface for quick and easy configuration. Easy firmware updates. All settings are persistent |
| Product Dimensions | 31.80cm x 24.00cm x 4.35cm (12.52" x 9.45" x 1.71" ) W, D, H |
| Product Weight | 2.5kg (5.6lbs) approx. |
| Shipping Dimensions | 30.70cm x 46.10cm x 10.20cm (12.09" x 18.15" x 4.02" ) W, D, H |
| Shipping Weight | 3.8kg (8.4lbs) approx. |
| Weight | 6.00 lbs |
|---|
