Description

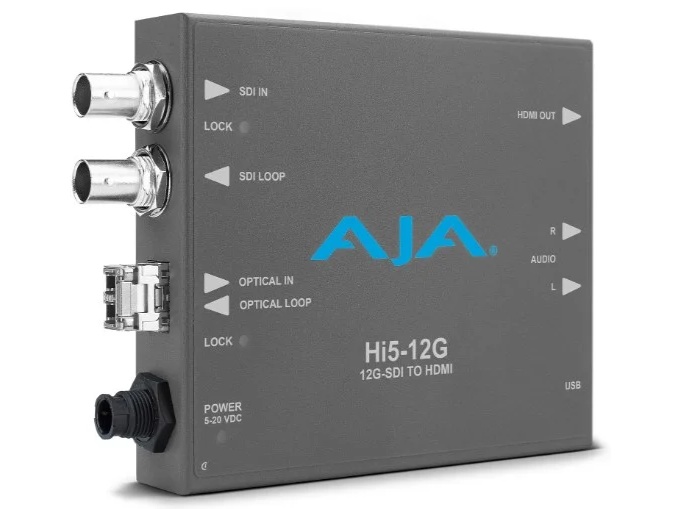

The Hi5-12G-R is a compact fiber SFP receiver that converts single-link 12G-SDI to HDMI 2.0 for professional 4K/UltraHD monitoring. It accepts SDI or fiber LC inputs and presents HDMI 2.0 output, preserving high frame rate image fidelity. The unit is intended for live production, post, and monitoring workflows where cable runs or display compatibility require conversion.
Key capabilities include support for High Frame Rate up to 60p at 4K, HDR metadata generation, and 12-bit workflows for color-critical applications. The Hi5-12G-R generates HDR10 metadata in accordance with HDMI v2.0b / CTA-861-G and supports HLG over HDMI. A reclocked SDI loop out provides confidence monitoring or pass-through for SDI pipelines.
Performance specifications target pristine image fidelity across 12G-SDI single-link sources and extended distances via the included Fiber LC SFP receiver. The device supports 4K/UltraHD at up to 60 frames per second and maintains color depth up to 12-bit where sources permit. HDR handling and HFR support reduce the need for additional signal processing in monitoring chains.
Connectivity is comprehensive for point-to-point conversion scenarios – a 12G-SDI single-link input, reclocked SDI loop out, and HDMI 2.0 output are provided on the enclosure. The Hi5-12G-R ships with a single channel Fiber LC SFP receiver to extend 4K signals over long distances. A USB port enables firmware updates and configuration via AJA Mini-Config on PC or Mac.
Typical applications include on-set and stage monitoring, OB truck integration, and studio monitoring where SDI or fiber sources must be displayed on HDMI 2.0 panels. The Hi5-12G-R is suitable for broadcasters, post facilities, and rental houses that require straightforward SDI to HDMI conversion without sacrificing color or frame-rate performance. It integrates into multi-monitor monitoring racks and single-screen setups alike.
Installation and operation are straightforward – the unit uses a DWP-U universal power supply and accepts 5-16 VDC input. Status indicators and a simple configuration workflow via USB make deployment quick in the field or studio. A five year warranty underscores the product’s support and reliability for professional environments.
