Description

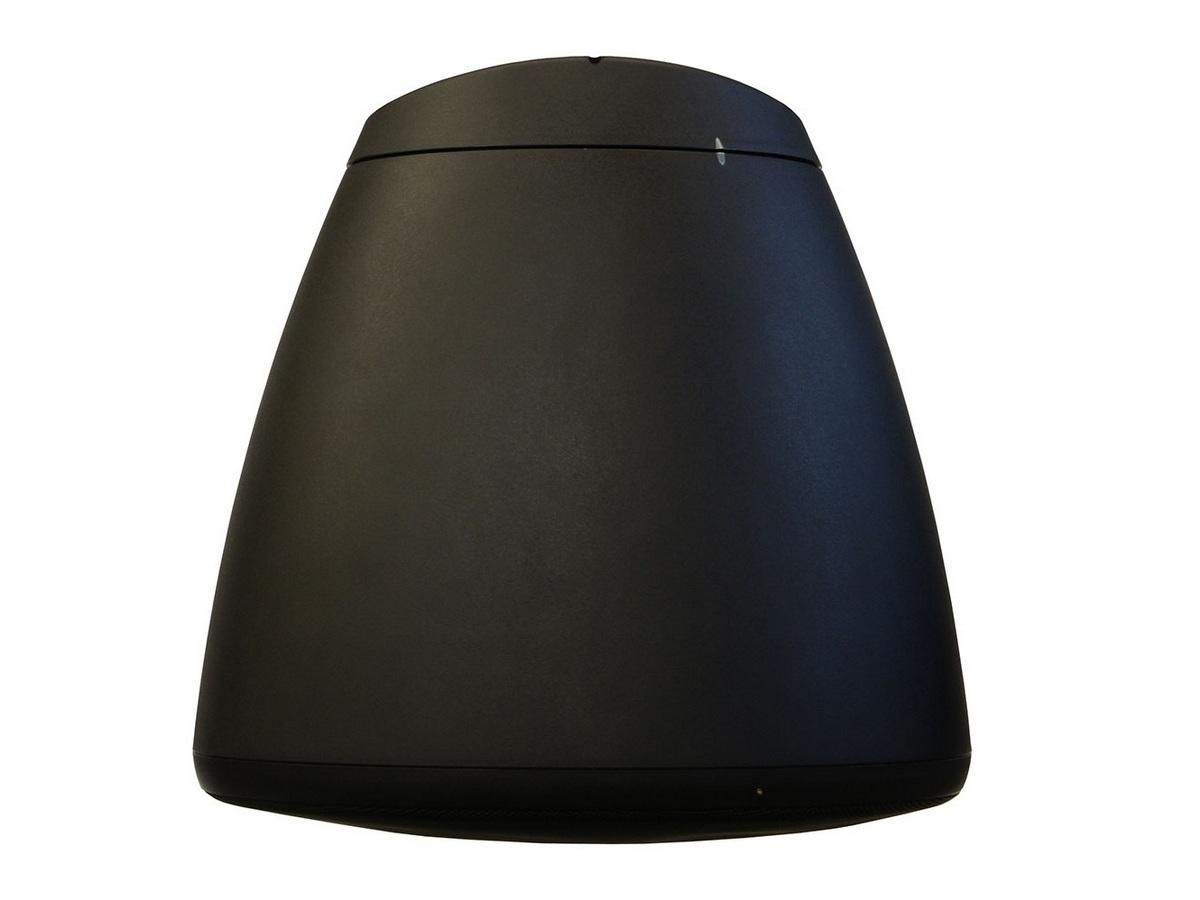

Download Manual The HP82-EZ is an 8.0 inch coaxial open-ceiling speaker engineered for high-SPL speech and music playback in exposed ceiling environments. It delivers focused coverage using a coaxial driver and BroadBeamHP Ring technology to improve high-frequency dispersion. The unit is available in black or white and is paintable to match interior finishes.
Key features include a single 8.0 inch polypropylene low-frequency driver and a 19 mm silk dome high-frequency driver with Beam Ring technology. The speaker includes weatherized components for indoor or outdoor applications and an aluminum powder-coated grille for corrosion resistance. Hanging hardware and a locking cover plate are supplied for fast installation and optional direct-to-conduit mounting.
Performance specifications include a nominal impedance of 16 ohm, 64W continuous RMS power handling, and 128W program power. Frequency response is 110 Hz to 22 kHz at -3 dB and 80 Hz to 22 kHz at -10 dB, with a maximum SPL of 110 dB at 1 meter. Sensitivity measures 89.0 dB at 2.83 V/1 m and 92.0 dB at 1 W/1 m, enabling efficient coverage from a compact driver package.
Connectivity and tap options are provided via a 4-position ceramic terminal block and a six-position rotary tap selector with transformer bypass. Tap positions support 25 V, 70.7 V, and 100 V distributed audio systems as well as low-impedance direct-drive operation. The unit also includes a built-in thermal fuse for protection under fault conditions.
Typical applications include retail areas, transportation hubs, restaurants, houses of worship, and outdoor covered spaces where open-ceiling mounting is required. The speaker’s BroadBeamHP Ring improves intelligibility across a wide listening area and reduces the need for exact aiming. Its weatherized design allows deployment in semi-exposed environments while maintaining audio clarity.
Installation is streamlined by the included galvanized steel hanging cables, hanging bracket, weather plug, and screw-on cover plate. The enclosure is injection-molded ABS reinforced with glass fiber for impact resistance and long-term durability. The grille and hardware are designed for secure mounting and corrosion resistance in demanding installations.
Overall, the HP82-EZ offers a compact open-ceiling package with multiple tap options, robust construction, and coverage-optimized dispersion. It combines high SPL capability and transformer flexibility to serve both low-impedance and constant-voltage systems. The unit is UL listed and RoHS/CE approved, providing a reliable choice for professional audio installations.
