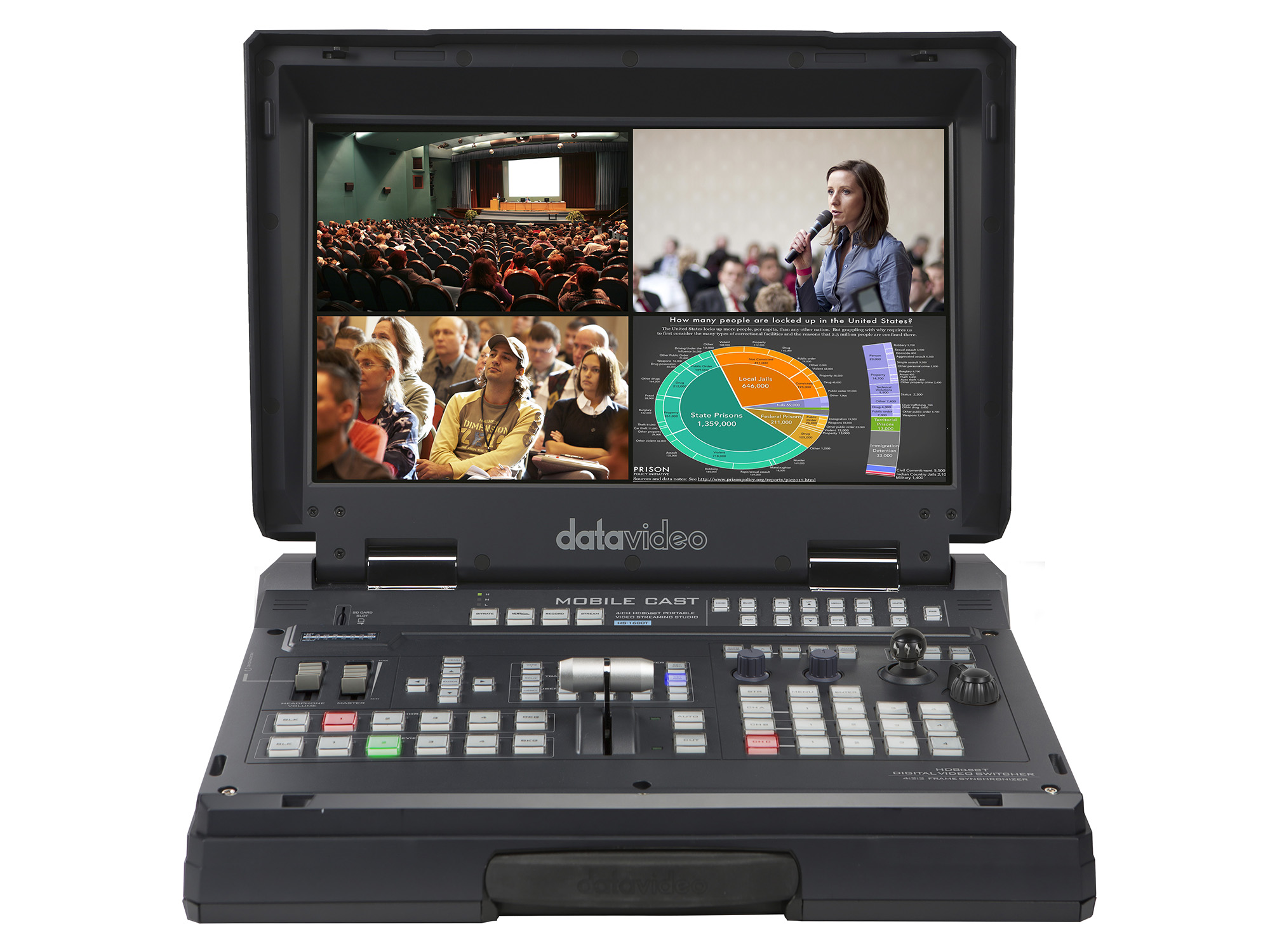

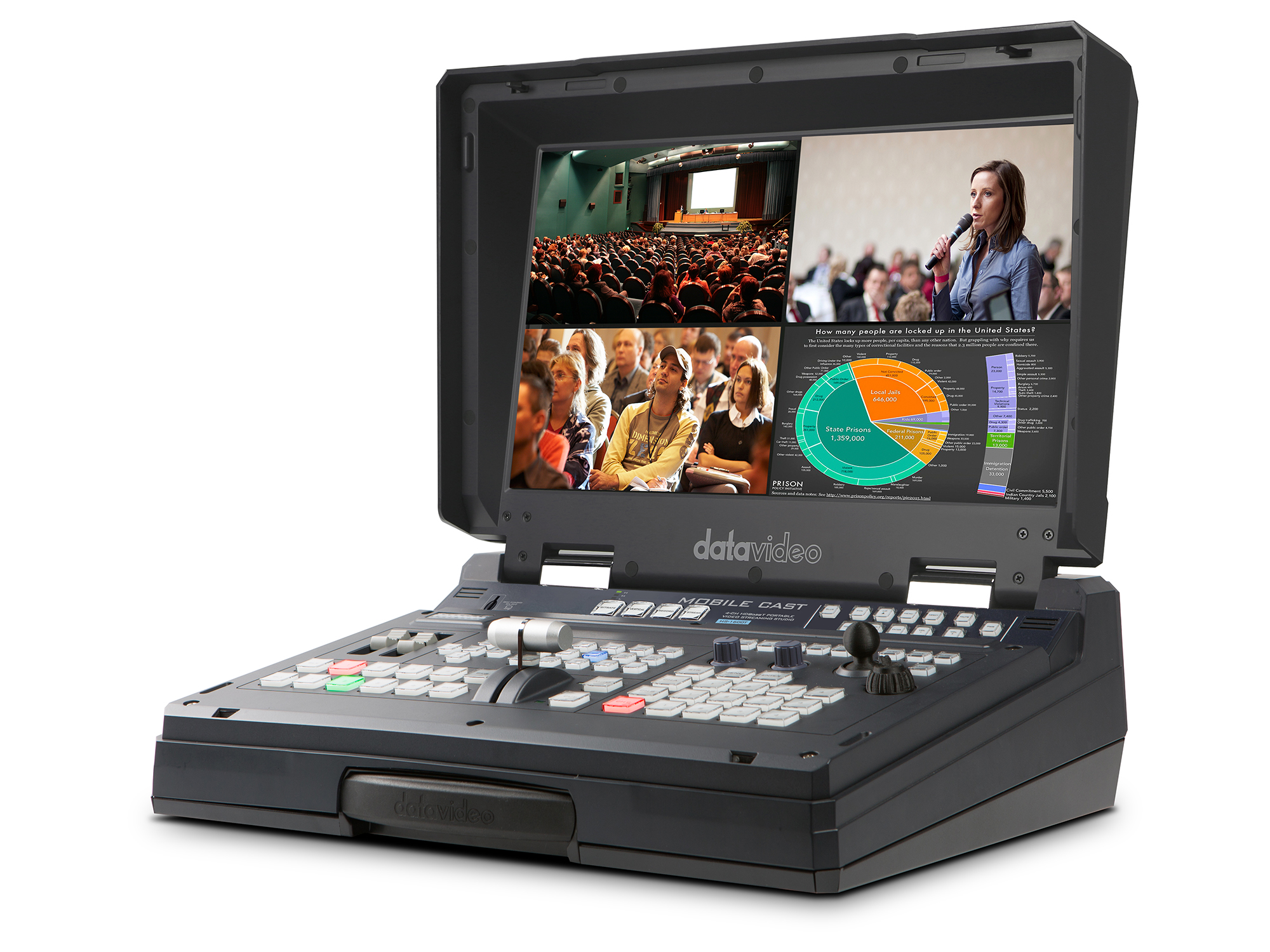

Download Manual Datavideo’s HS-1600T MKII Hand-carry Mobile Switcher, the cutting-edge technology that supports Full HD 1080P, is designed for broadcast of live events and TV programs with a need for mixing a wide variety of video and audio sources. The HS-1600T MKII is a highly valuable solution for religion, education and AV markets.
With its built-in HDBaseT technology, HS-1600T MKII is able to accept the Full HD 1080p video format from three PTC-150T HDBaseT PTZ Cameras through three individual CAT-6 cables. Each cable runs up to 100 meters. While shooting in the field, the PoE feature serves to power the three PTC-150T devices. The PoE feature can also be used in the field where long-distance transmission is required.
The HS-1600T MKII also features an audio mixer with balance XLR inputs and unbalance RCA audio inputs; more features include PIP, WIPE Generator and Tally.

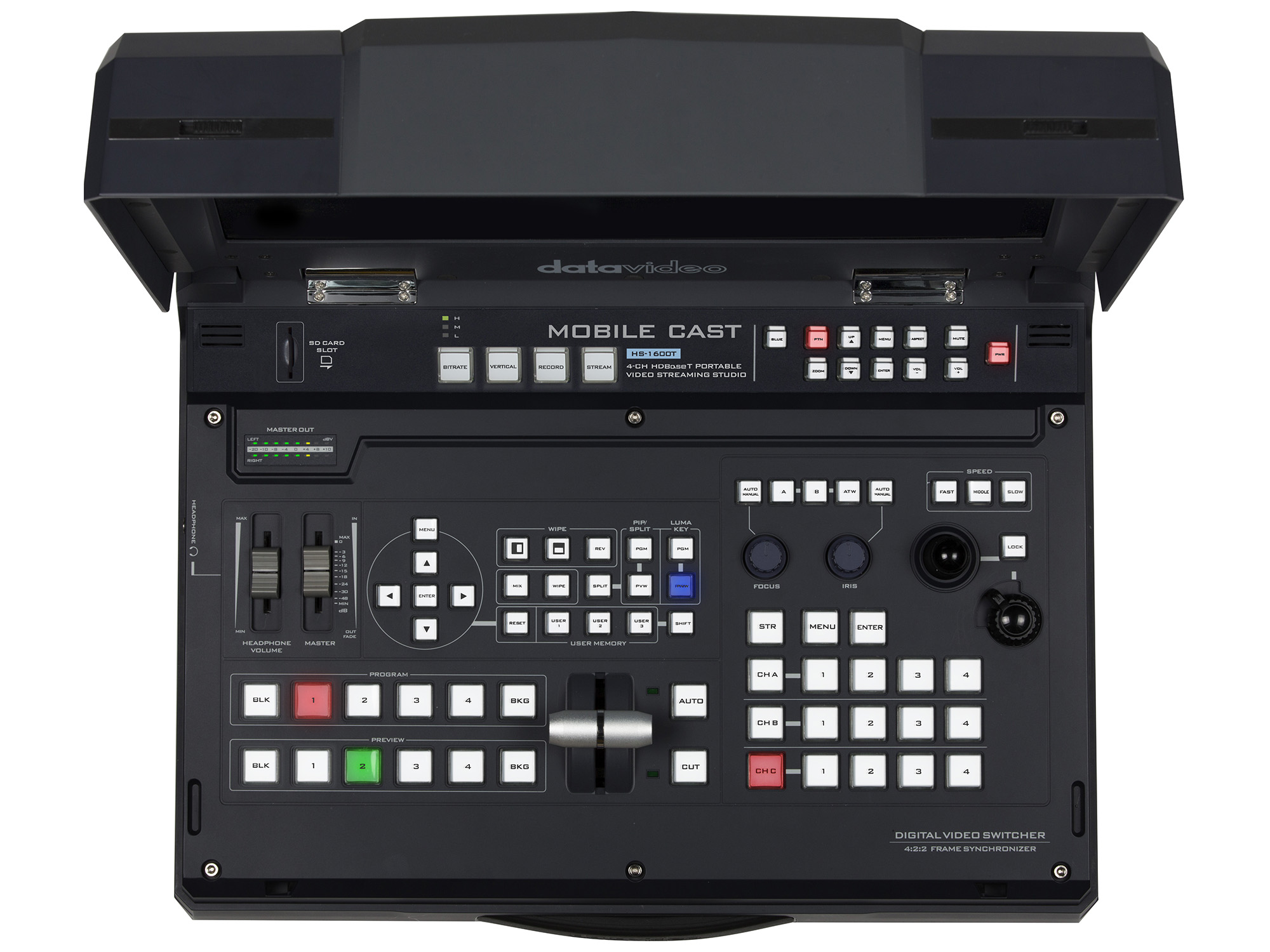

The HS-1600T MKII has a Joystick that allows the user to Pan, Tilt and Zoom the PTC-150T camera. In addition, the HS-1600T MKII also allows the user to adjust the PTC-150T’s Focus, IRIS and other settings.
HS-1600T MKII also features an easy-to-use video streaming and recording device for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.
Features
- Full HD 1080P Video Format
- Built-in HDBaseT technology to connect three PTC-150T HDBaseT PTZ Cameras through three CAT6 (or higher) cables with each cable running up to 100 meters.
- PoE technology to Power the PTC-150Ts
- Joystick Pan, Tilt and Zoom with speed control
- Iris, Focus, and Gain Control as well as other PTC-150T camera functions
- Simultaneous Live Streaming & Recording
- Broadcast quality HD / SD H.264 network streaming over RTMP(S), RTSP, TS, HLS and SRT
- Support different bitrates for recording and streaming

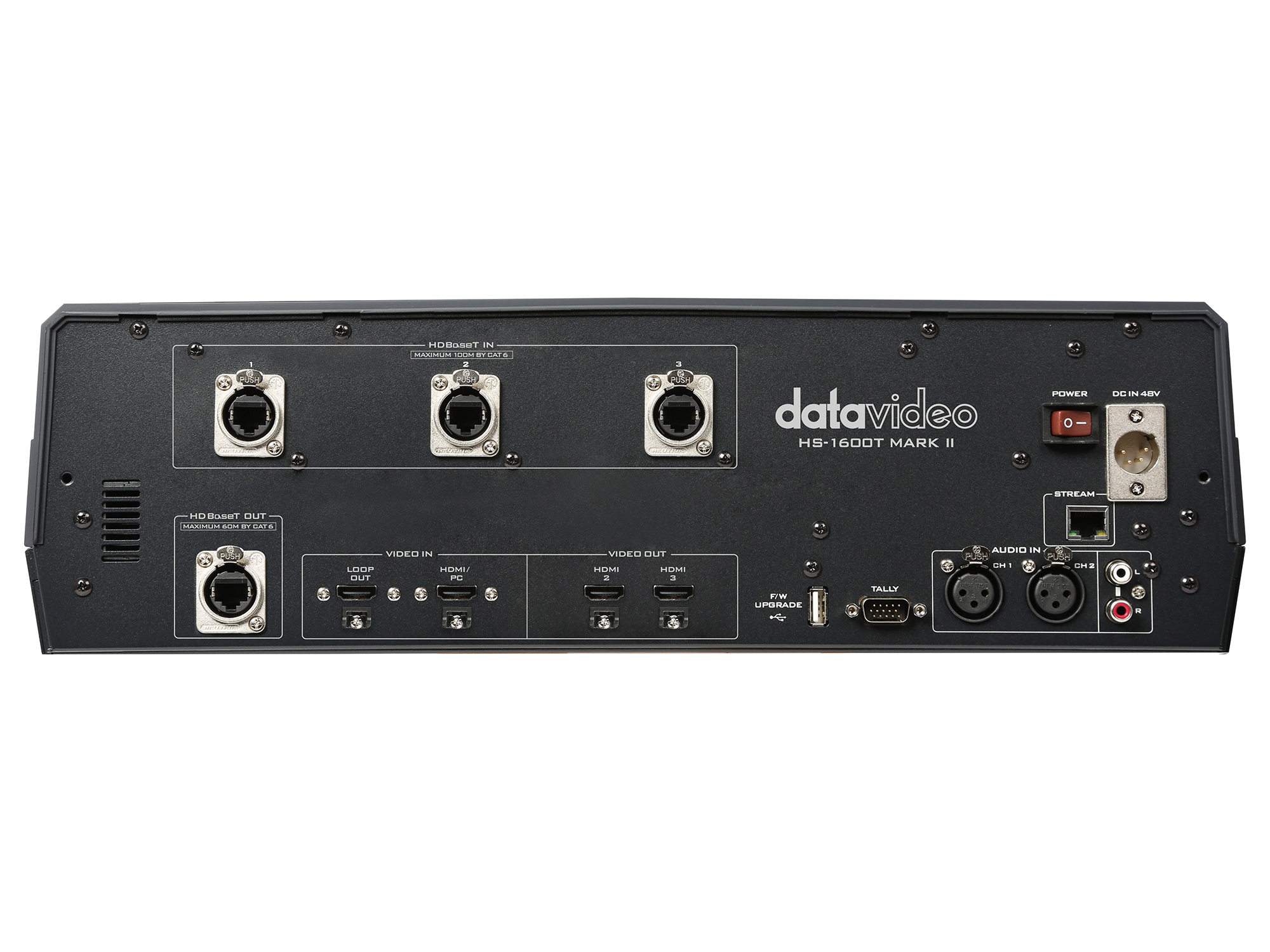

- 4 Video Inputs (RJ-45 x 3 + HDMI x 1)
- 3 Video Outputs (RJ-45 x 1 + HDMI x 2)
- Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2
- Versatile Mix Effects: PIP, WIPE, Mix and Fades
- Tally Output
- One 17.3-inch monitor with a resolution of 1920×1080
