Description
The HT-DSCV3-RX-WP is an in-wall HDBaseT receiver designed to extend USB 3.2 Gen 1×1 signals and provide local USB-C power delivery. It functions as a single-gang wall plate receiver that accepts an HDBaseT link and presents a USB 3.2 Type-C device connection. This unit enables clean in-wall installations for AV and IT environments where a local USB-C port and RS-232 control are required.
Key features include support for USB 3.2 Gen 1×1 at up to 5 Gbit/s, backward compatibility with USB 3.0/2.0/1.1, and RS-232 pass-through for control integration. The receiver supports POH so only one side of the link needs local power, and its PSE capability can provide up to 90W charging power to a connected host device. The RX-V2 variant also provides dual HDMI video outputs for systems that require local display outputs.
Performance is specified to operate over standard structured cabling up to 90m when using Cat6a or Cat7 cable, delivering reliable USB data across extended distances. Data throughput supports up to 5 Gbit/s consistent with USB 3.2 Gen 1×1. The unit includes a factory reset function and a LINK LED to indicate a valid HDBaseT connection.

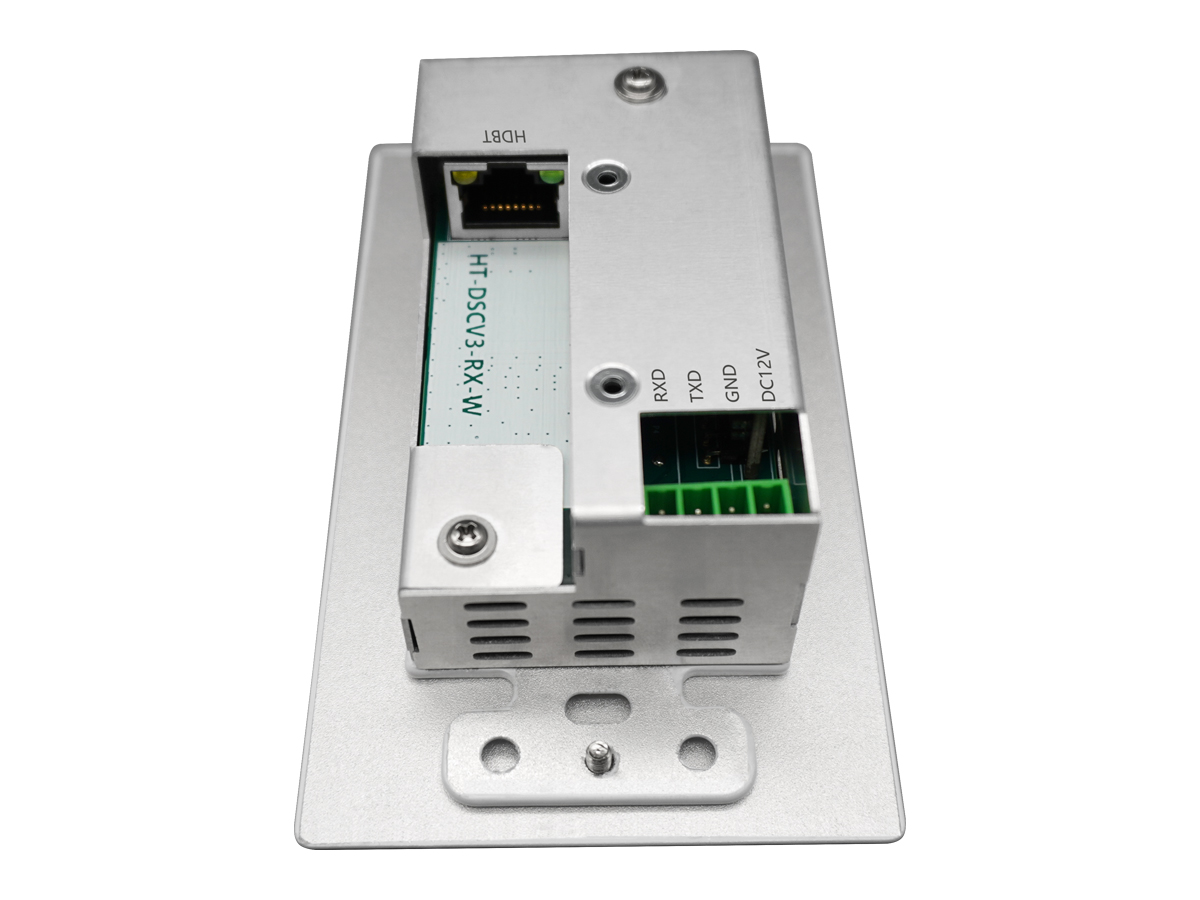

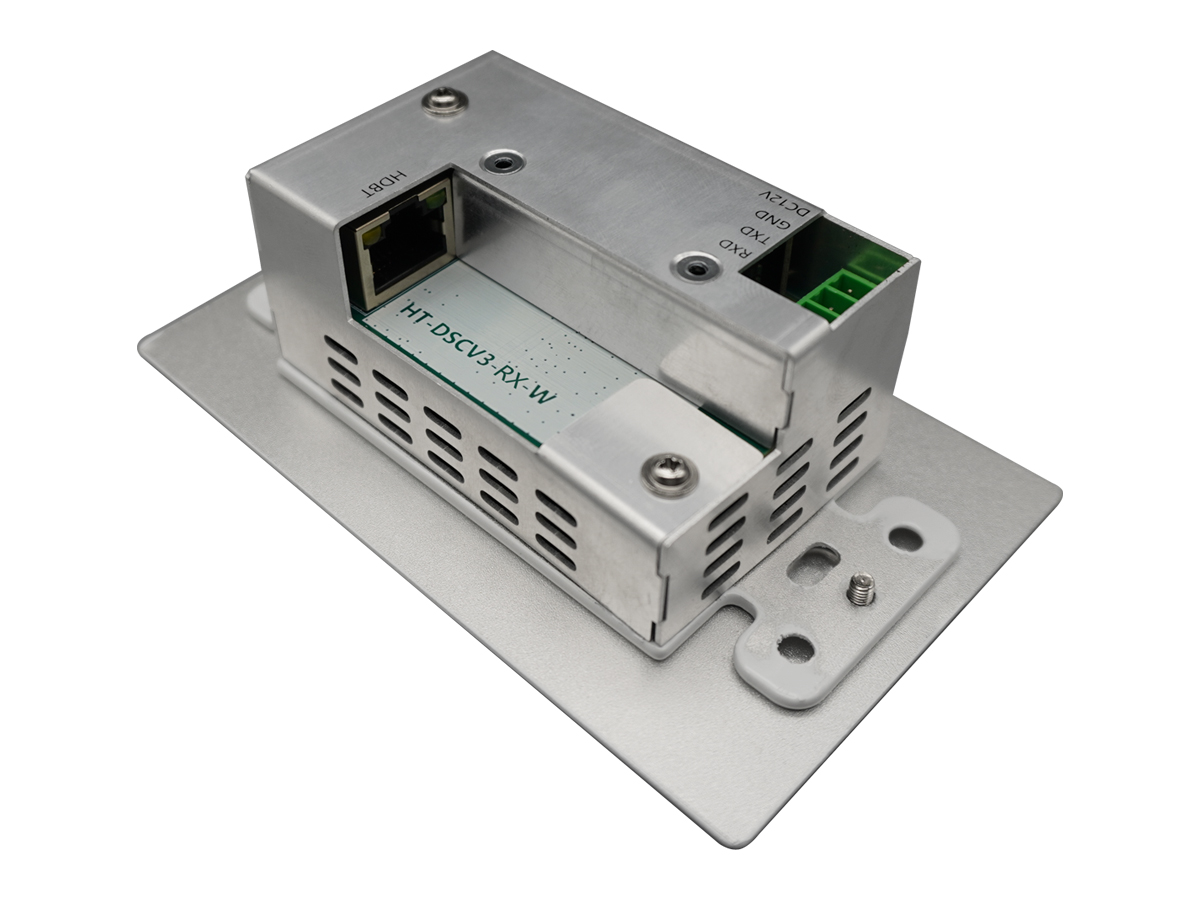

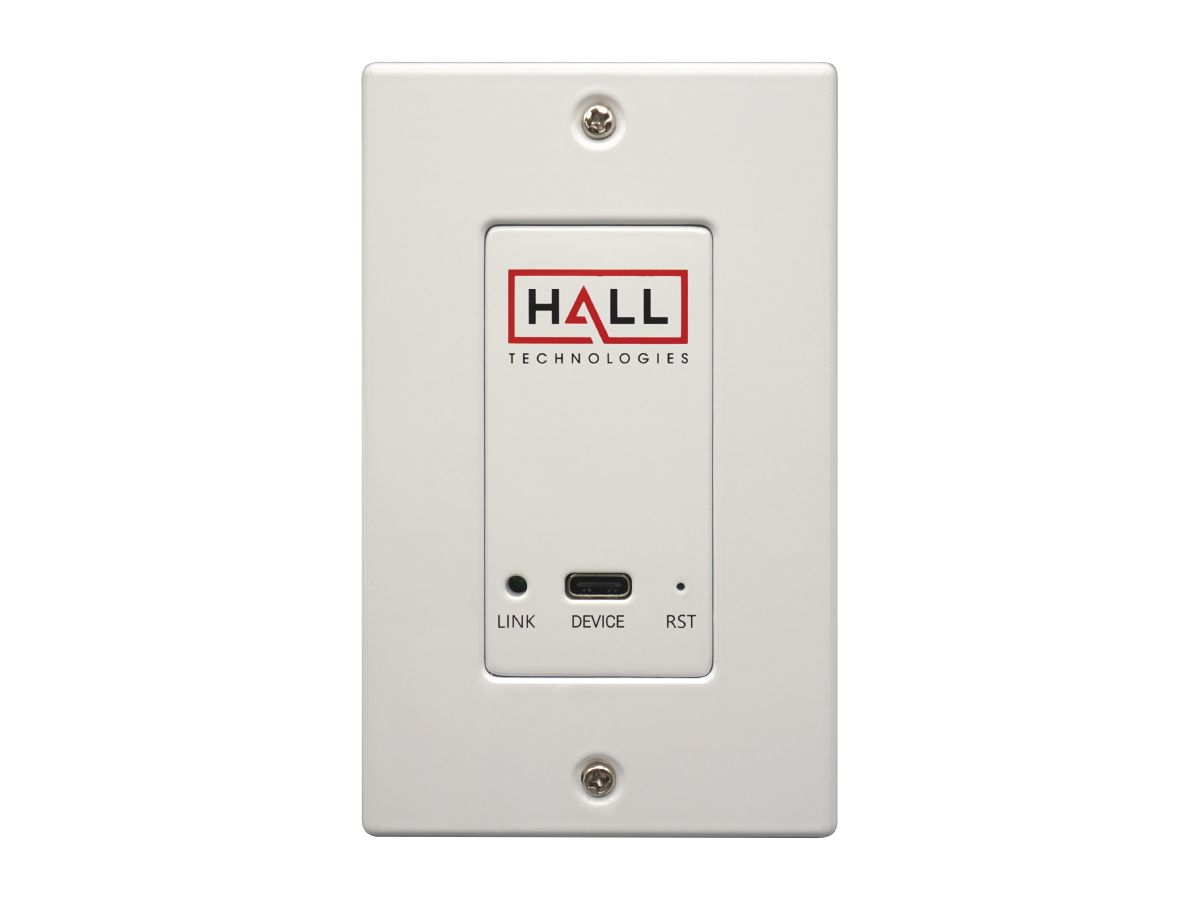

Connectivity is focused and straightforward – the wall plate exposes 1 x RJ-45 HDBaseT input at the rear, 1 x USB 3.2 Type-C device port at the front, and a 4-pin Phoenix connector for RS-232 pass-through and optional 12V local power. The receiver accepts POH from a compatible transmitter or can be locally powered when required in chained wall plate configurations. It maintains compatibility with standard USB devices and common control systems that use RS-232.
This product suits conference rooms, classrooms, huddle spaces, and corporate workstation deployments where a tidy in-wall USB-C connection and remote device control are needed. It is useful where a host needs to be located remotely from endpoint devices or where centralized AV equipment is connected to local user interfaces. The single-cable HDBaseT link reduces installation complexity and cable clutter in finished spaces.

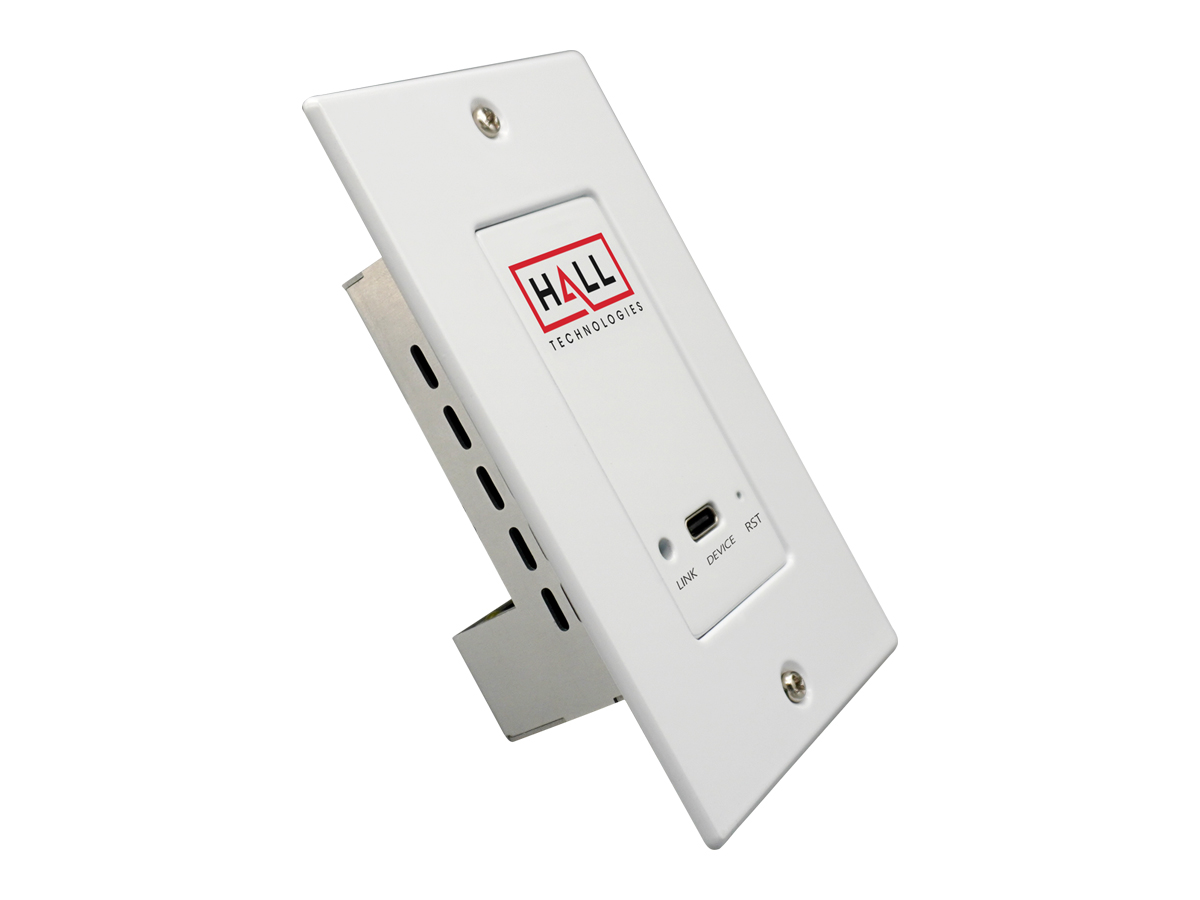

Installation is accomplished using a standard single-gang wall box and the supplied cover plate and mounting hardware. The compact housing is designed for flush wall mounting and integrates a LINK LED and reset pin for simple troubleshooting and maintenance. The design eliminates the need for additional bulk at the endpoint and supports industry-standard cabling and connectors.
Hall Technologies supplies a warranty covering defects in materials and workmanship per their published policy, with repair or replacement options based on purchase date. The HT-DSCV3-RX-WP combines extended USB 3.2 connectivity, POH/PSE power management, and control pass-through in a low-profile wall plate that simplifies AV and IT integration. Its combination of distance, power delivery, and control passthrough makes it a practical choice for modern AV installations.
