Description

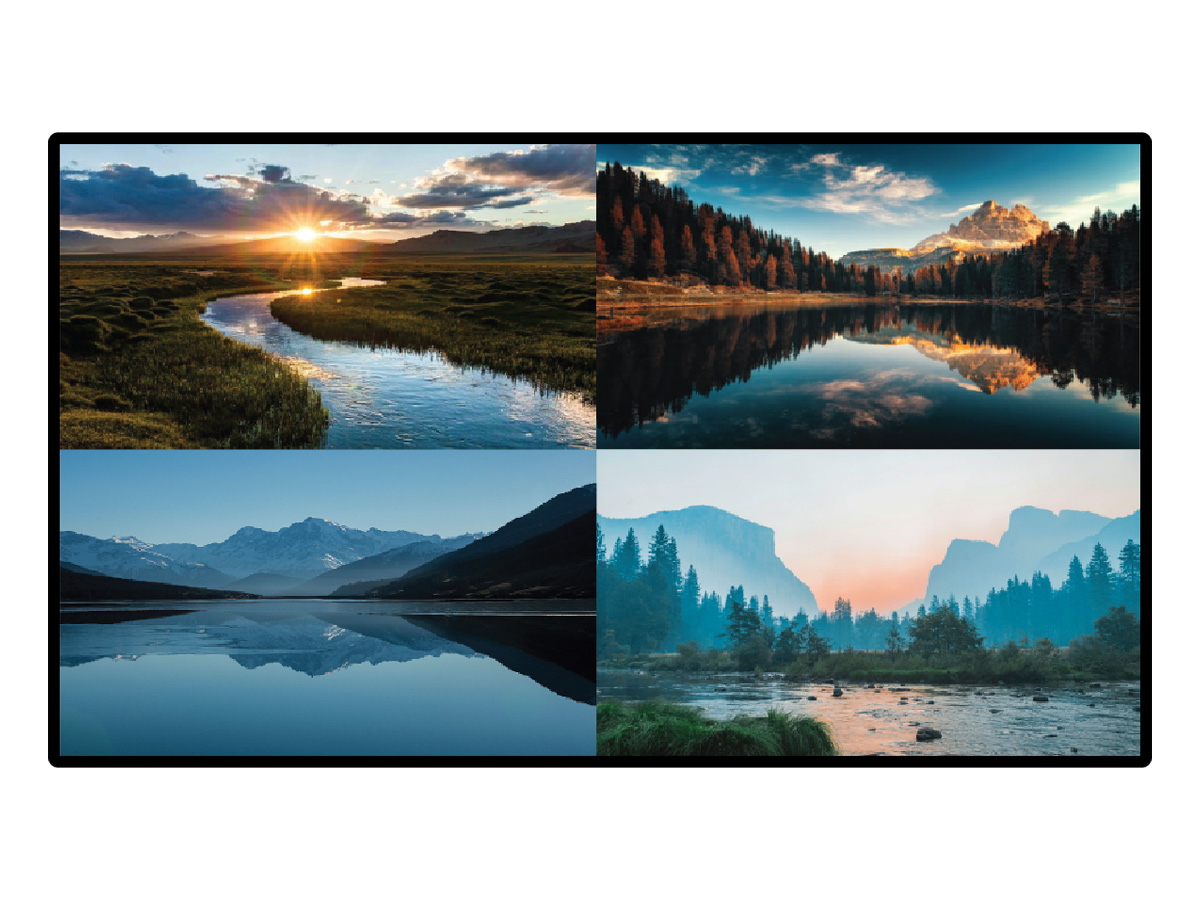

The HT-HV75-Q is a 75in 4K UHD display that integrates a built-in 2×2 quad video processor to present four HD sources on a single screen. It is designed to show multiple HDMI sources simultaneously in a native 3840×2160 at 60Hz panel. The display includes integrated speakers and an IR remote for straight-forward operation.
The display supports multiple view modes including Quad View (2×2), Full-Screen, Side-by-Side, and Picture-in-Picture to accommodate various monitoring and presentation needs. The on-screen display menu allows adjustment of brightness, contrast, color temperature, and layout selection. A button lock prevents accidental changes to critical settings in shared environments.
Performance is driven by a native 4K@60Hz panel with a 16:9 aspect ratio, 1200:1 contrast ratio, 5 ms response time, and 300 cd/m2 brightness with protective glass. Viewing angles are wide at 178deg horizontal and 178deg vertical to ensure consistent image quality from off-axis positions. The estimated panel lifetime is 50,000 hours under normal operating conditions.
Connectivity includes four HDMI inputs and one VGA input for video sources plus a 3.5mm line input and line output for audio. The display accepts standard HDMI digital audio and outputs stereo audio through two integrated speakers. Onboard wall-mount hardware and VESA 400mm mounting make installations simple in control rooms, conference areas, and public displays.
Typical applications include control rooms and monitoring stations that require simultaneous feeds from multiple computers or cameras, corporate AV systems that need multi-source presentation capability, and digital signage installations where a single screen must display multiple inputs. The integrated quad processor eliminates the need for an external multiviewer or video wall controller in many installations. Content can be arranged quickly using the remote or front panel controls.
Installation is streamlined by the included wall mount, VESA 400mm interface, and standard power connections for 100-240V operation. The display is FCC and CE compliant and includes a three year warranty for added protection. The HT-HV75-Q combines a native 4K panel, flexible multi-view processing, and integrated audio in a single display engineered for professional AV environments.
