Description

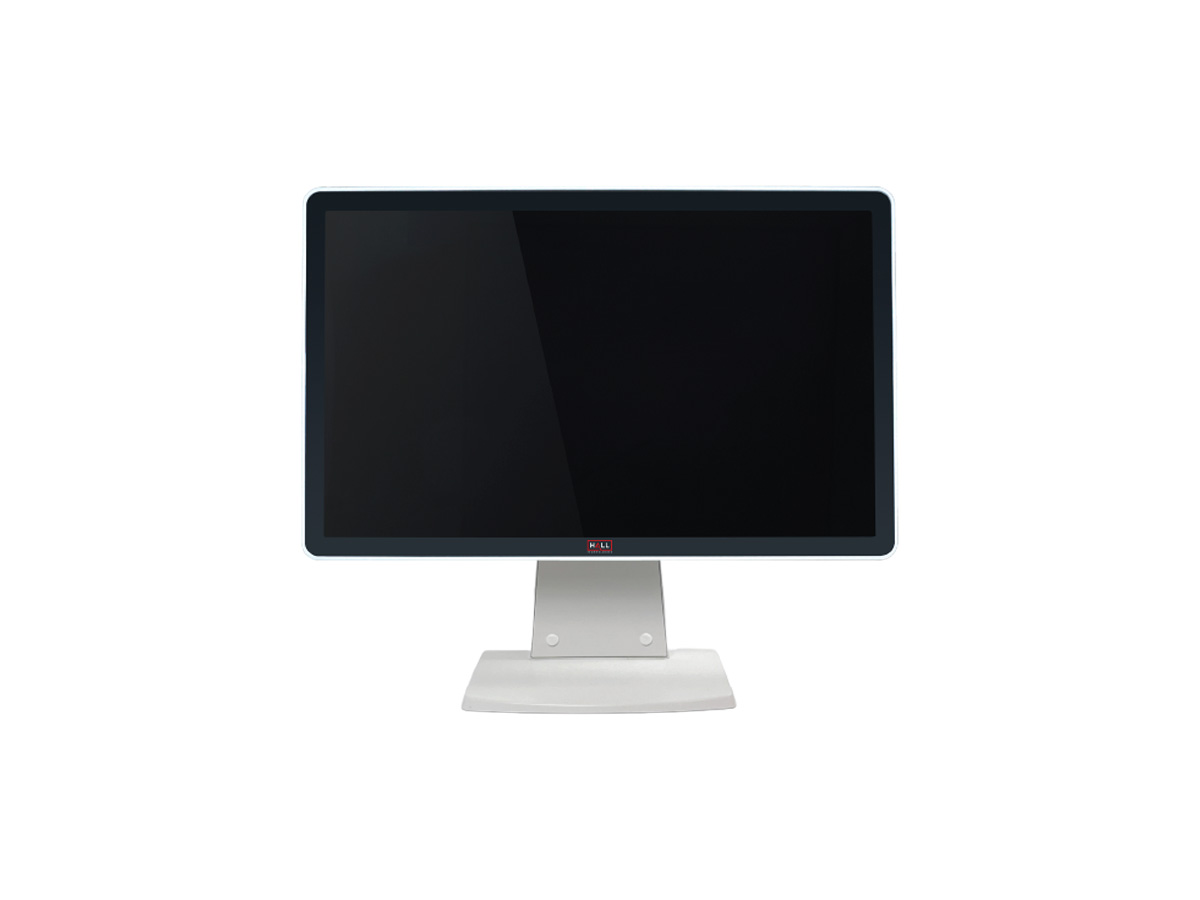

The HT-HVM32 is a 32 inch medical-grade HD monitor designed for clinical and point-of-care environments. It delivers a native 1920×1080 resolution at 60Hz and a 16:9 aspect ratio for clear, detailed images. The monitor is certified to IEC/EN 60601-1 and IEC/EN 60601-1-2 standards for electrical safety and EMC.
Its core features include a TFT-LCD panel optimized for healthcare settings, built-in stereo speakers, and multiple video inputs. The display supports HDMI and DVI-I inputs and provides audio pass-through and de-embedded HDMI audio. The monitor also offers a long rated lifetime and a hard-coated front surface for durability.
Performance highlights include a 1920×1080 resolution, 60Hz refresh rate, an 8ms response time, and a 4000:1 contrast ratio on the 32 inch model. Brightness with protective glass is rated at 350 cd/m2 and panel life exceeds 50,000 hours. Viewing angles are 178 degrees horizontal and vertical to aid multiple-staff viewing.
Connectivity is straightforward with one HDMI port, one DVI-I port, a 3.5mm line-level audio input and a 3.5mm audio output. The audio output supports pass-through from the line input and can de-embed audio from HDMI sources. On-screen display controls provide Auto, Up, Power Down and Menu functions for quick adjustments.

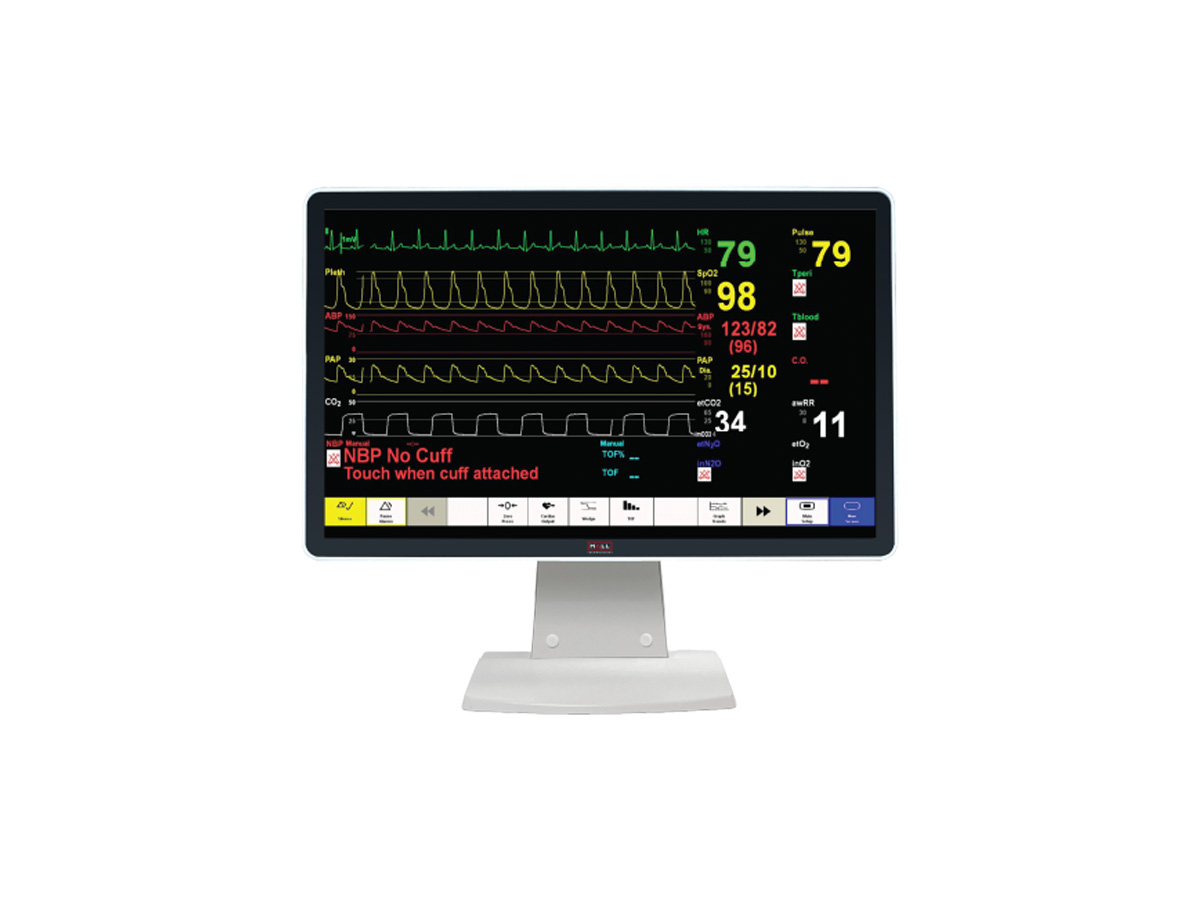

The HT-HVM32 is suitable for nurse workstations, patient monitoring stations, diagnostic viewing rooms and clinical documentation areas. It supports desktop mounting and VESA 400mm x 300mm mounting for flexible installation. The monitor’s certifications and EMC performance make it appropriate for regulated healthcare spaces.
Installation and daily operation are simplified by a 12V 5A external power supply and a total power draw of 60W. The enclosure uses natural air cooling and operates between 0 degrees C and 50 degrees C. The construction and medical certifications provide a reliable, compliant display solution for clinical AV deployments.
