Description

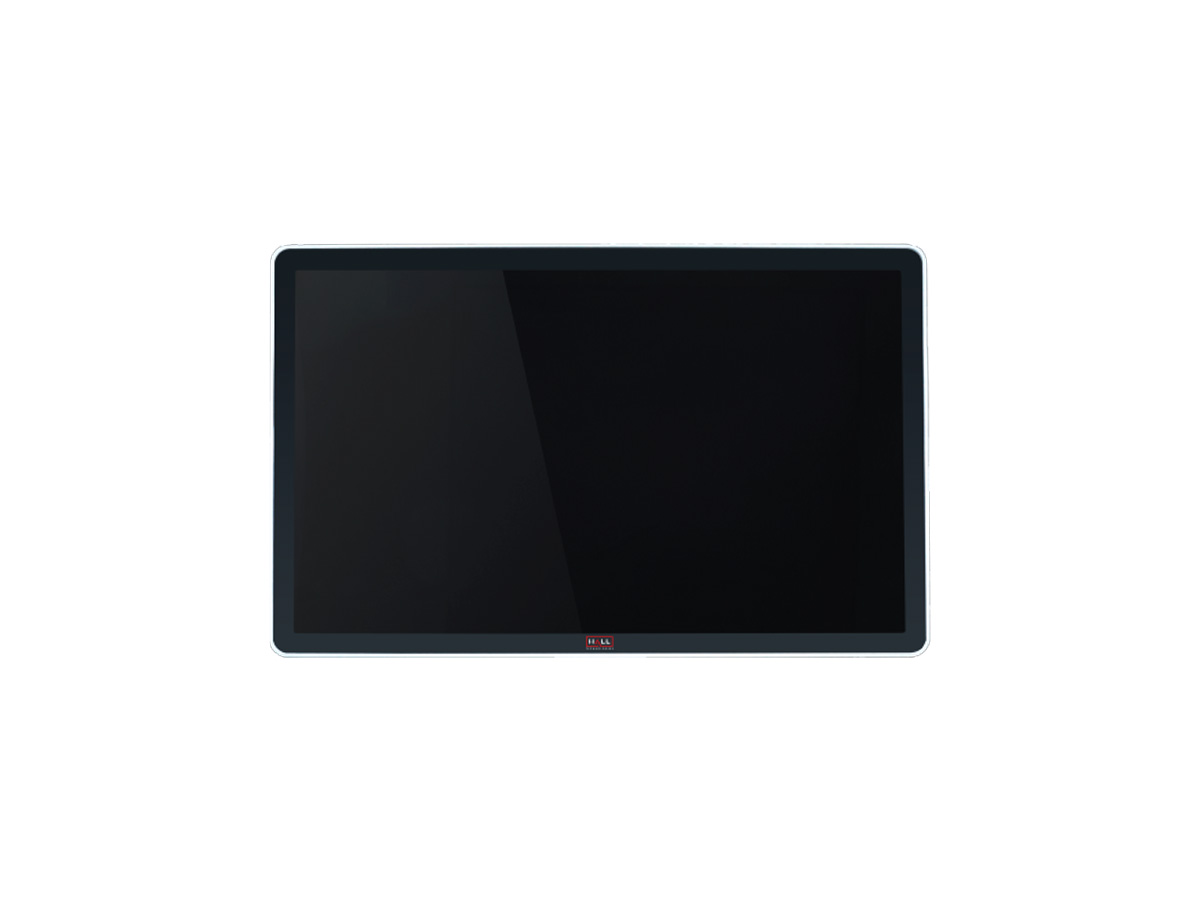

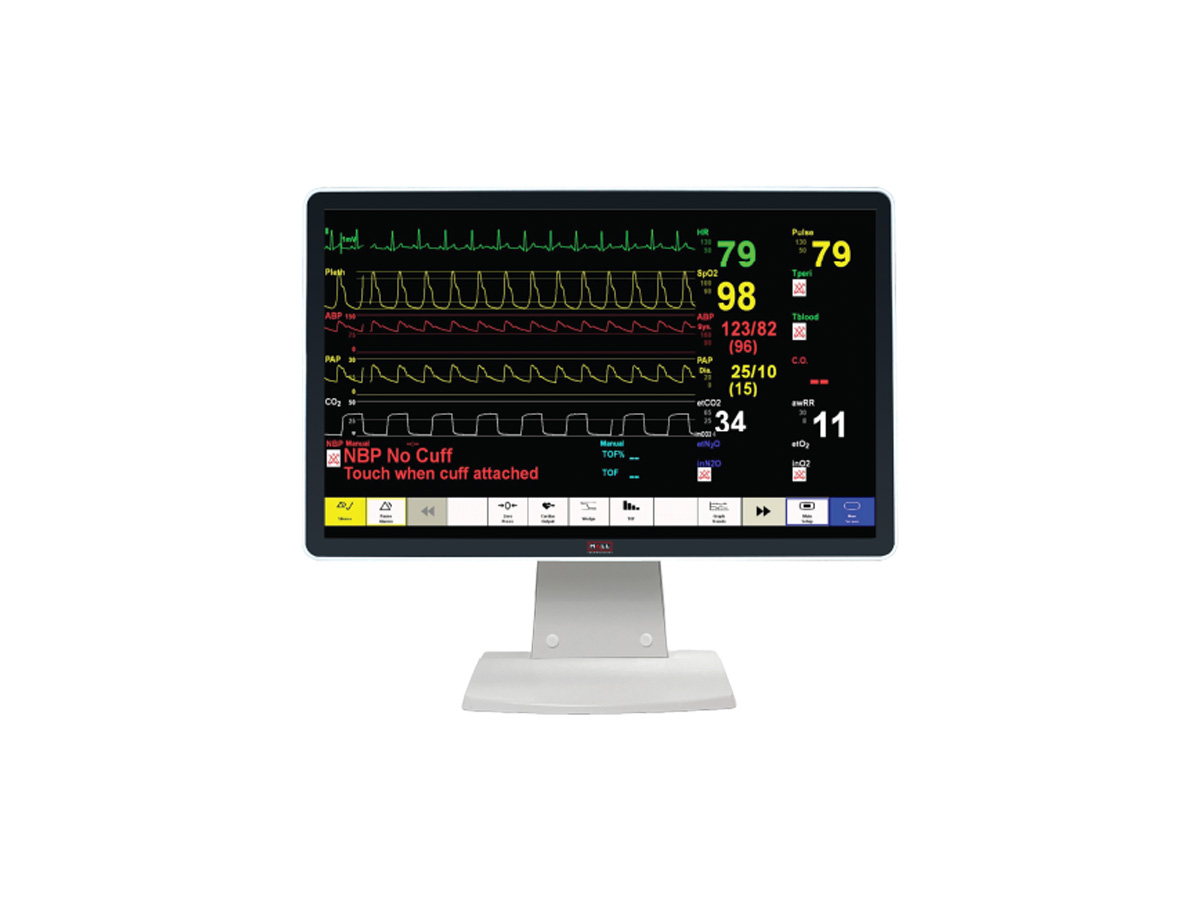

The HT-HVM43 is a 43in medical-grade HD monitor designed to display clinical video and information in healthcare environments. It delivers a native 1920×1080 resolution on a 16:9 panel to ensure clear, readable images and text. The monitor is certified to IEC/EN 60601-1 and IEC/EN 60601-1-2 standards for electrical safety and EMC.
Key features include a full HD 1920×1080 panel operating at 60Hz, integrated stereo speakers, and a desktop mount option for nurse stations and bedside work areas. The display supports common video inputs including HDMI and DVI-I to accommodate a wide range of medical sources. The panel uses a hard coating and FOG surface treatment to maintain image clarity in clinical lighting.
Performance characteristics include a 60Hz refresh rate, wide 178deg horizontal and vertical viewing angles, and a contrast ratio optimized per model. The monitor is rated for a long useful life – greater than 50,000 hours. Brightness with protective glass is specified at 350 cd/m2 to maintain visibility under clinical lighting conditions.
Connectivity is straightforward and appropriate for medical integration: 1 x HDMI, 1 x DVI-I, 1 x 3.5mm line-level audio input and 1 x 3.5mm audio output for pass-through or de-embedded HDMI audio. On-screen display controls provide Auto, Up, Power Down, and Menu functions to adjust image and system settings. Power is supplied at 12V 5A with an overall power consumption of 60W.
The HT-HVM43 is suitable for a range of clinical workflows including nurse workstation displays, patient information boards, and procedure room monitors. Its medical certification and EMC compliance make it appropriate for use in hospitals and clinics across multiple regions. The built-in speakers and common video inputs support multimedia and live feed requirements.

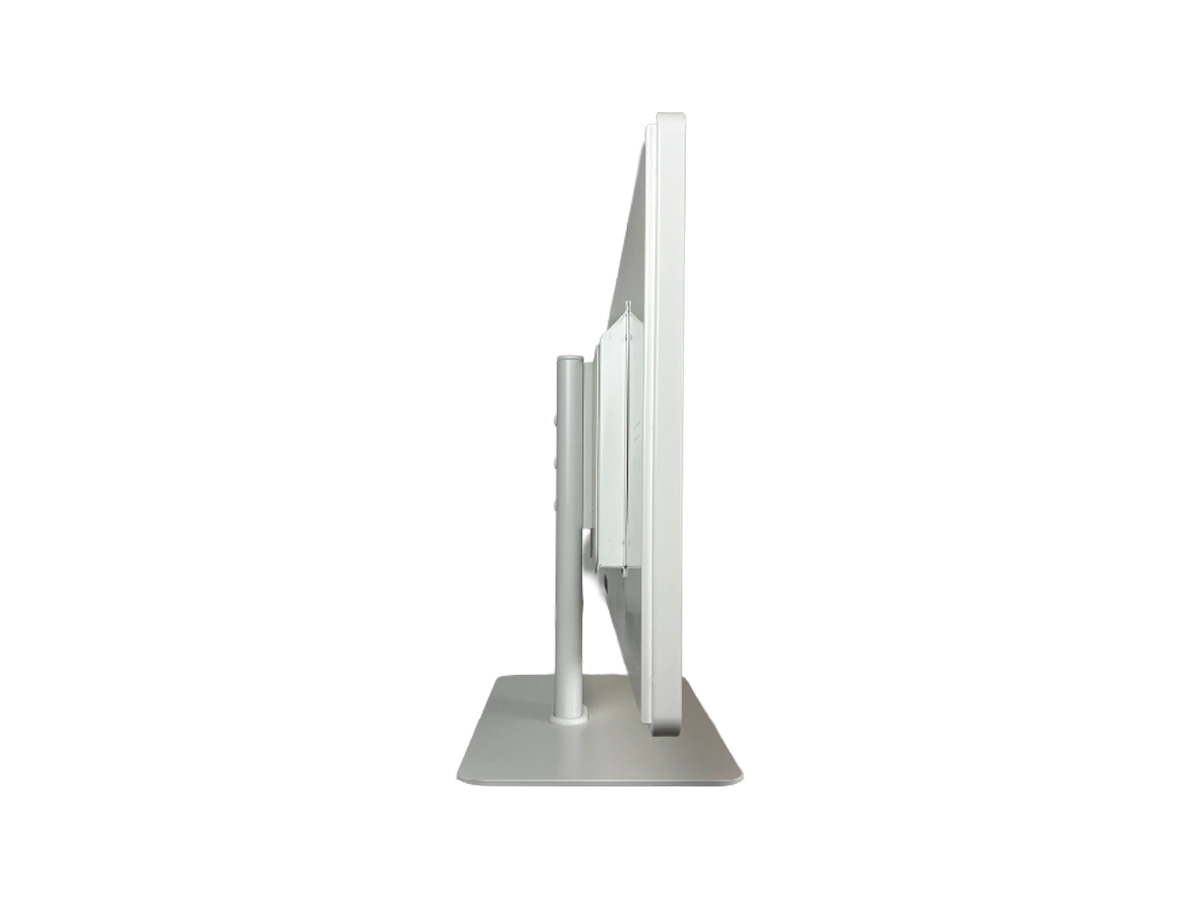

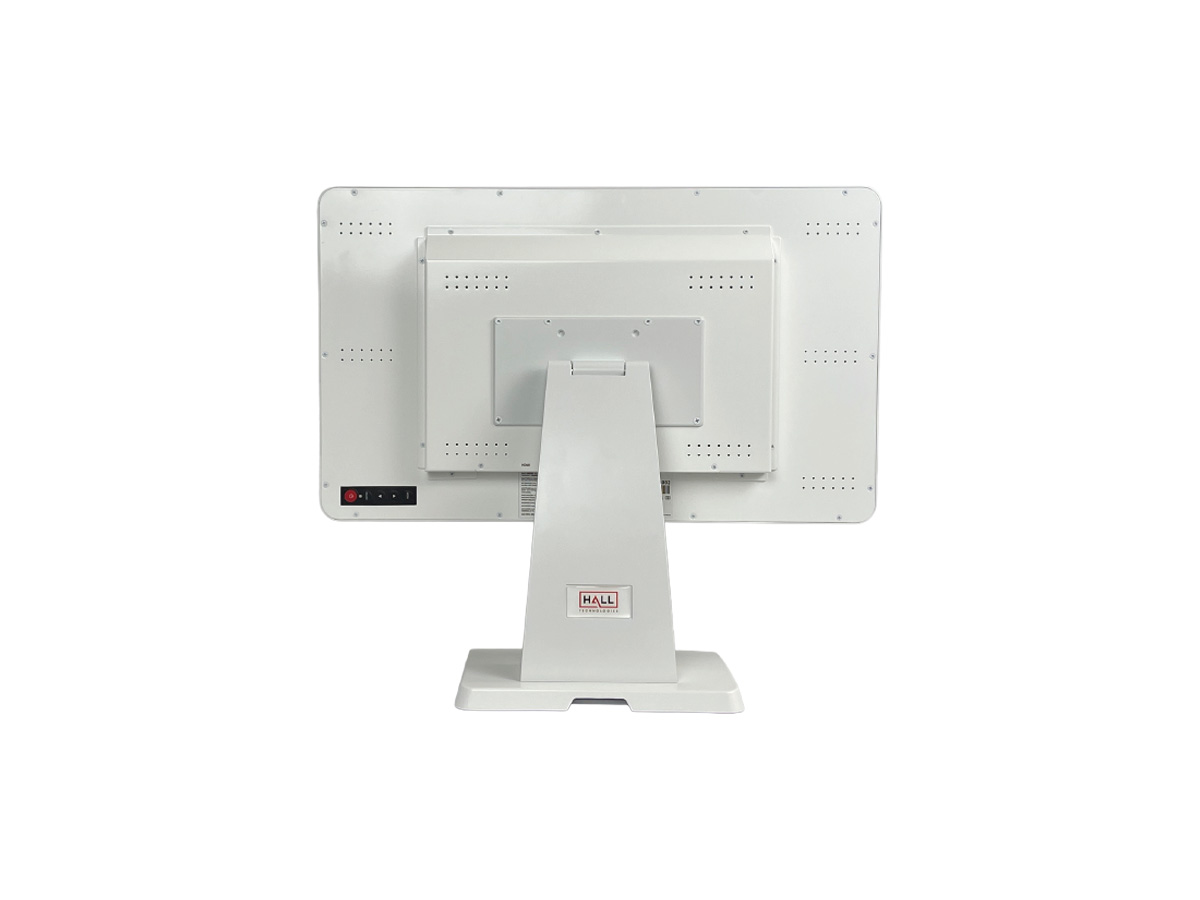

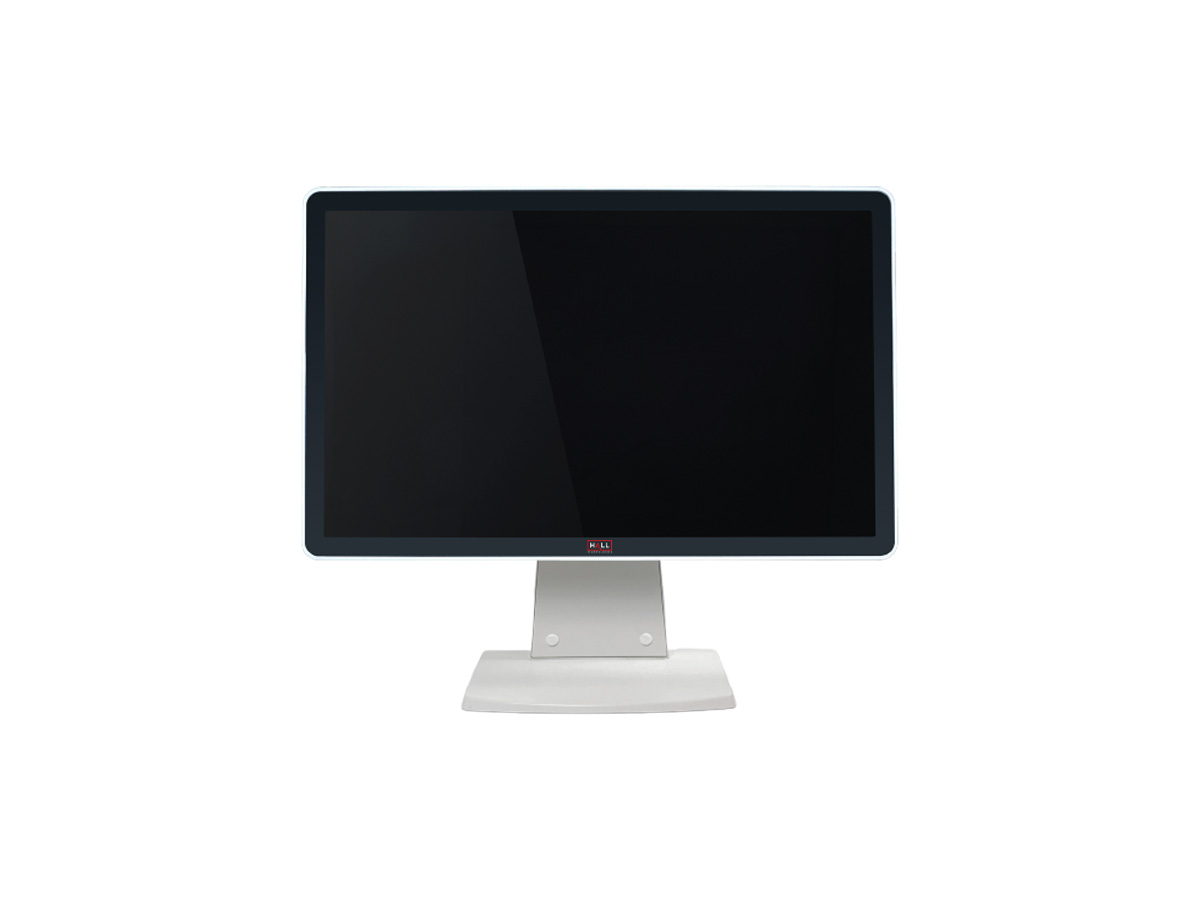

Installation and maintenance are simplified by VESA compatibility and a desktop mount option. The monitor operates across a broad temperature range and uses natural air cooling to limit system complexity. Overall the HT-HVM43 combines certified safety, proven LCD performance, and standard connectivity for dependable clinical display functions.
