Description
The AJA IO-XPAND-4 is a Thunderbolt 5 PCIe expansion chassis that connects a full-height, half-length PCIe card to Mac Windows and Linux systems over Thunderbolt or USB4. It brings professional PCIe I/O to compact laptops and small-form-factor workstations.

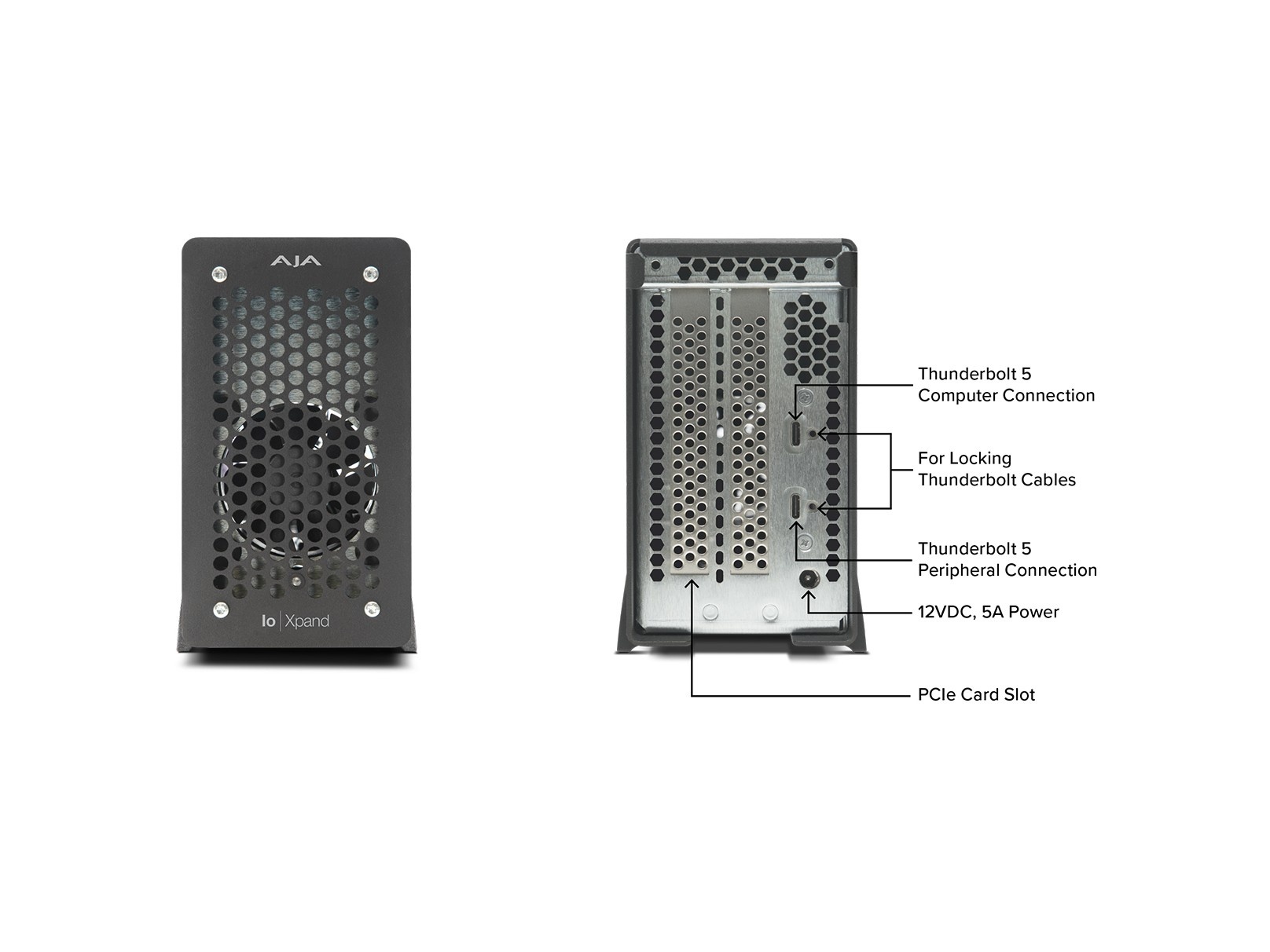

IO-XPAND-4 offers an 8-lane mechanical x4 electrical PCIe 4.0 slot and up to 6000 MB/s bi-directional Thunderbolt 5 bandwidth to the installed card. It supports single- or double-width cards and cards with daughter boards while providing a 6-pin auxiliary power option for cards that need supplemental power.

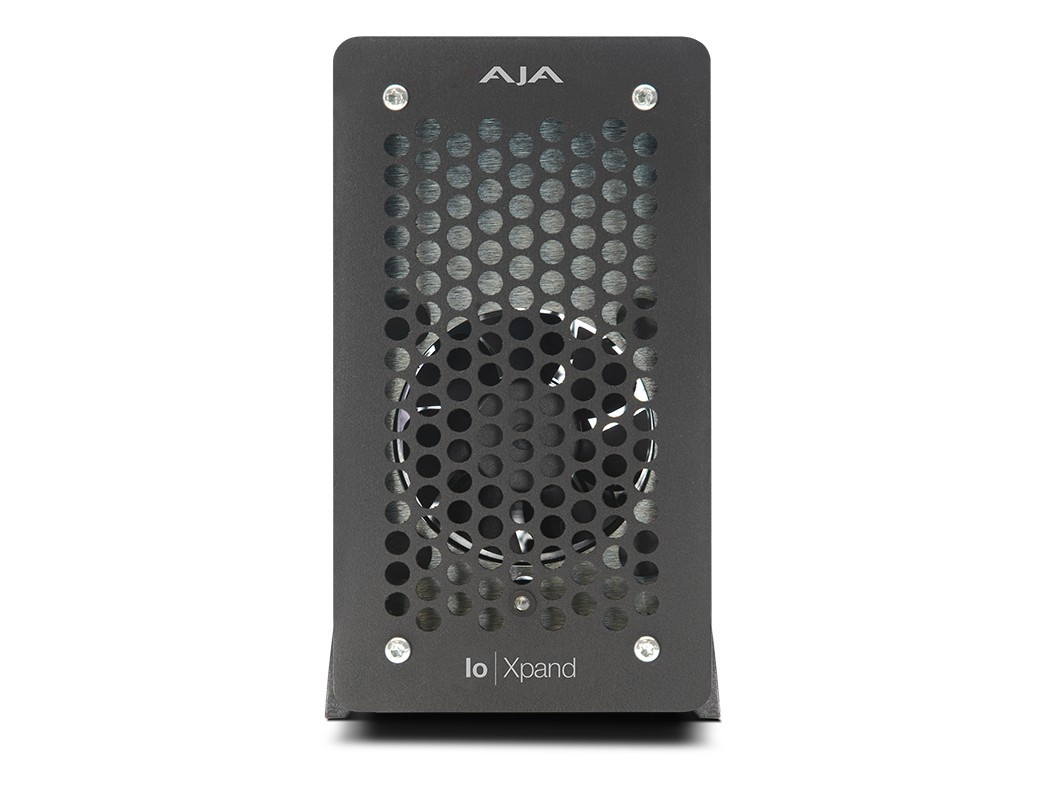

The lightweight aluminum enclosure provides quiet temperature-controlled cooling and includes a Thunderbolt 5 cable and securing bracket; this bundle includes an AJA KONA 1 PCIe I/O card for immediate HD I/O capability.
Key Features:- Thunderbolt 5 Bandwidth: Up to 6000 MB/s bi-directional delivers high-throughput transfer for video I/O and storage acceleration
- PCIe 4.0 Slot: One 8-lane mechanical (4-lane electrical) slot supports modern PCIe cards for advanced I/O and processing
- Card Compatibility: Supports full-height 1/2-length cards and double-width cards including KONA and Corvid series for broadcast workflows
- Auxiliary Power: 6-pin Mini-Fit internal connector provides supplemental power for demanding PCIe cards
- Thunderbolt / USB4 Compatibility: Works with Thunderbolt 5 4 3 and USB4 hosts for wide platform support
- Quiet Cooling: Temperature-controlled fan keeps acoustic impact low under load

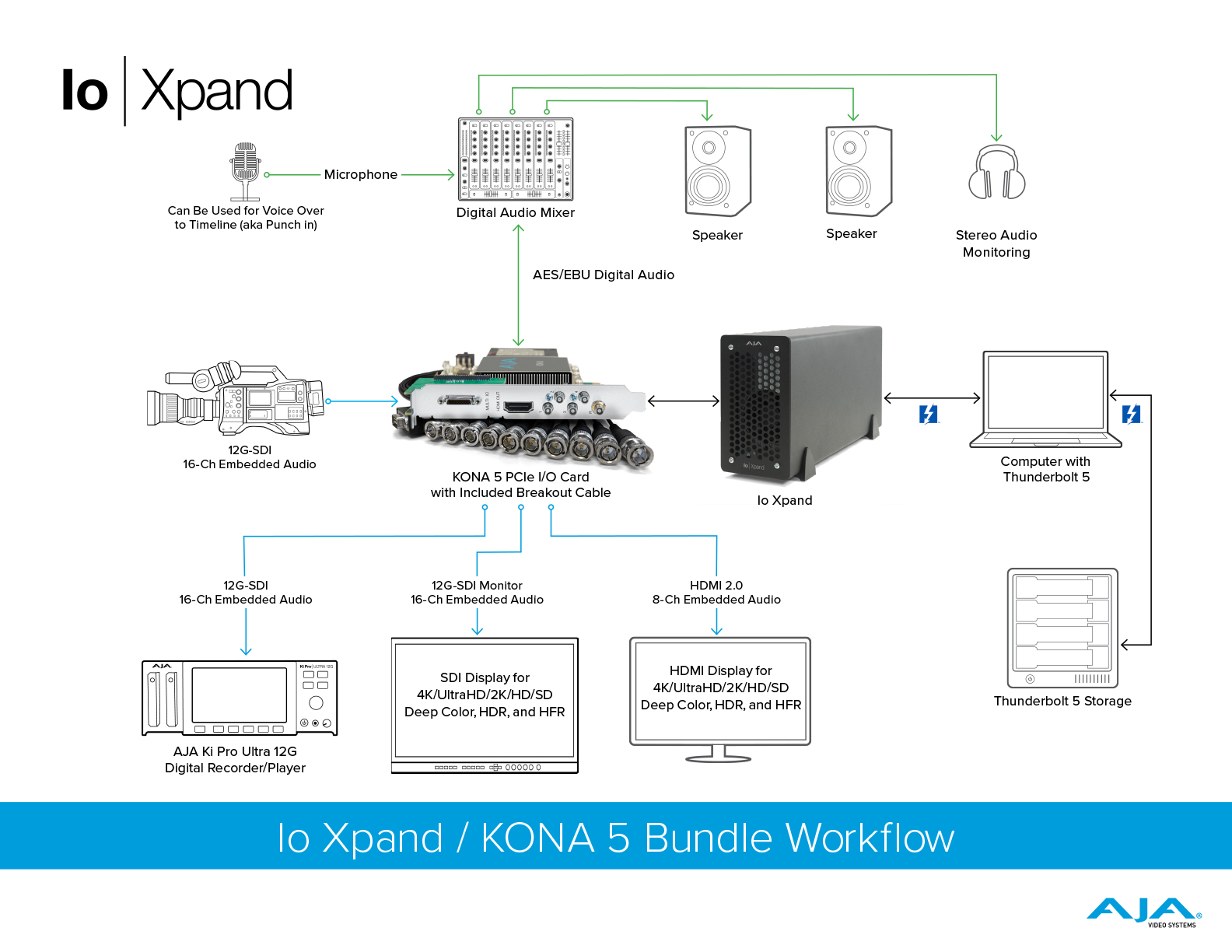

- Post Production: Add PCIe I/O such as capture playback or monitoring to mobile editing suites
- Broadcast Ingest: Use KONA or Corvid cards for HD SDI capture and live ingest on laptops
- Remote Production: Provide professional I/O and network interfaces to small-form-factor systems on location
