Description
The AJA Io Xpand (IO-XPAND) is a Thunderbolt 5 PCIe expansion chassis that enables a full-height, half-length PCIe card to connect to Mac Windows or Linux systems via Thunderbolt or USB4 ports.
It provides an 8-lane mechanical x4 electrical PCIe 4.0 slot supporting single- or double-width cards and PCIe cards with daughter cards plus a 6-pin auxiliary power connector for cards that require supplemental power. The chassis delivers up to 6000 MB/s bi-directional PCIe throughput to the installed card.

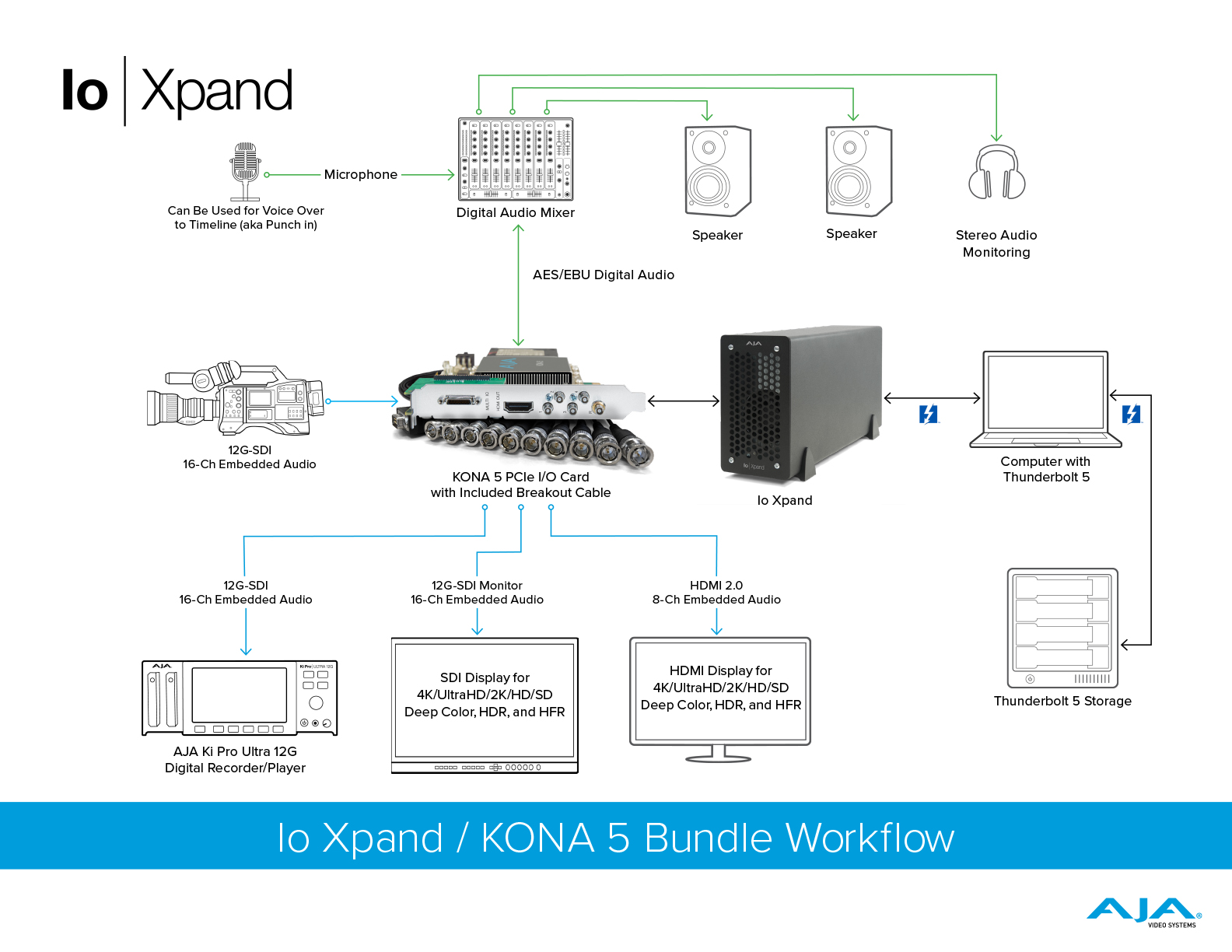

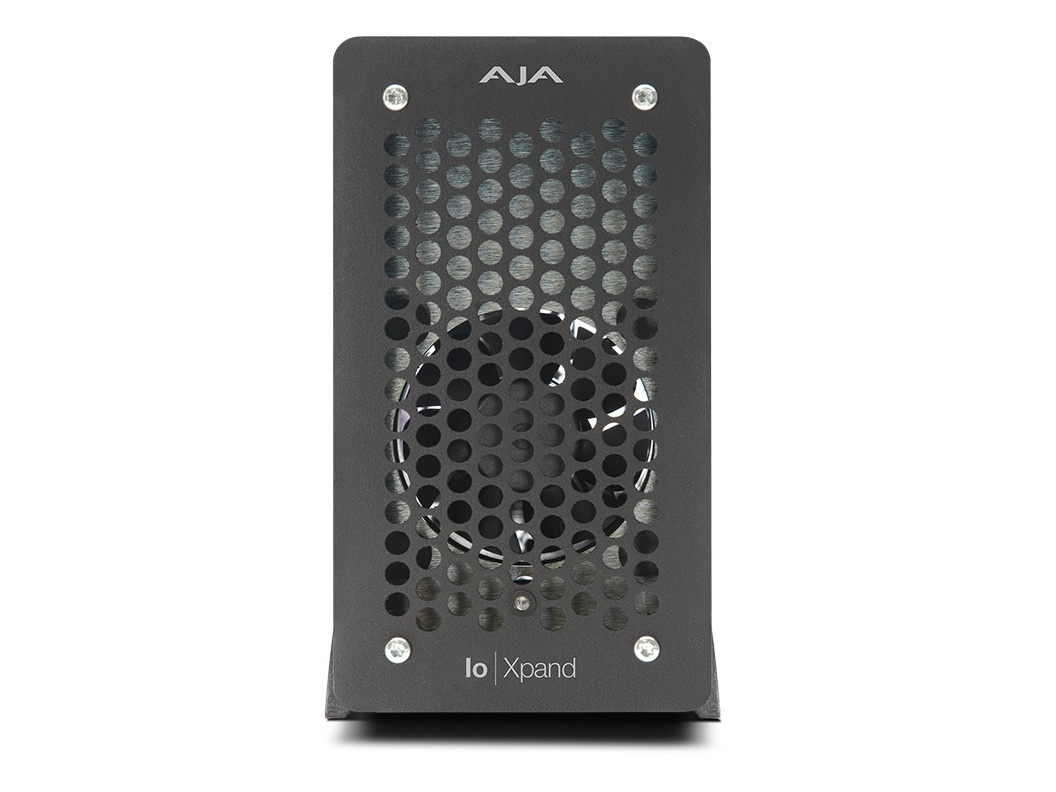

The lightweight aluminum enclosure offers temperature-controlled quiet operation and includes a Thunderbolt 5 cable and securing bracket. Io Xpand supports Thunderbolt 5/4/3 and USB4 and is available in optional bundles with AJA KONA PCIe I/O cards for video and audio workflows.
Key Features:- Thunderbolt 5 Bandwidth: Up to 6000 MB/s bi-directional PCIe throughput to accelerate I/O and media transfer
- PCIe Slot: x8 mechanical x4 electrical PCIe 4.0 slot for modern single or double-width cards
- Card Compatibility: Supports full-height 1/2 length cards and cards with daughter boards including KONA and Corvid models

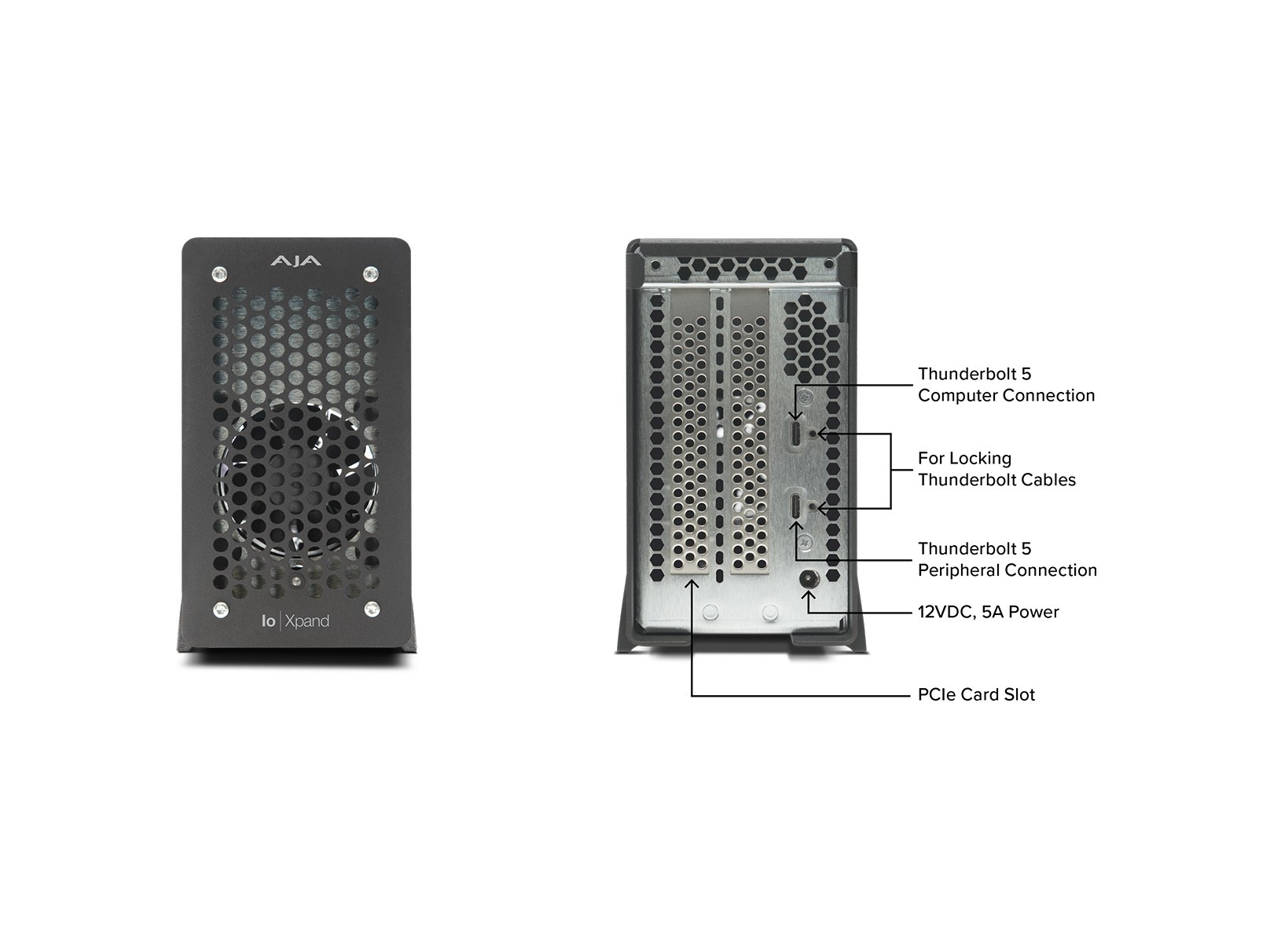

- Auxiliary Power: 6-pin Mini-Fit internal connector and cable for cards requiring supplemental power
- Cross-Platform Support: Compatible with Windows macOS and Linux systems via Thunderbolt or USB4
- Quiet Operation: Temperature-controlled fan design for nearly silent operation under load
- Included Accessories: Thunderbolt 5 cable and securing bracket for secure connections
- Live Broadcast Ingest: Add KONA or Corvid capture cards to laptops or compact systems for live feeds
- Post-Production: Expand I/O for color grading edit suites using PCIe-based I/O or acceleration cards
- Audio Post/Recording: Integrate PCIe audio I/O or DSP cards into desktop or laptop workstations
