Description

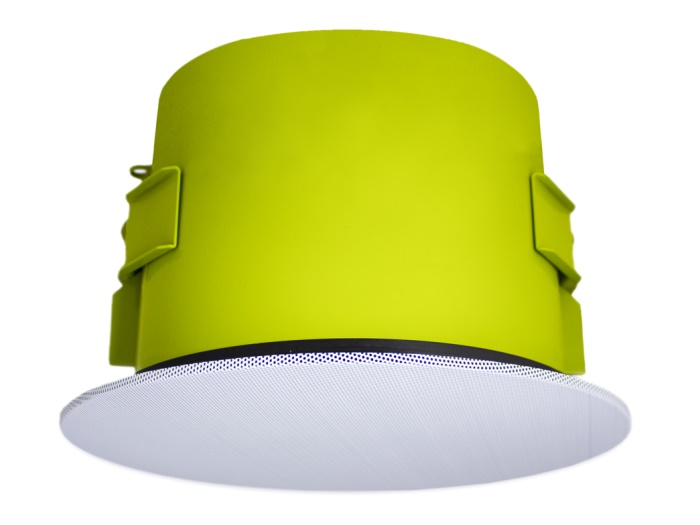

Download Manual The IPD-CM82-BGM-II is an 8” coaxial in-ceiling speaker for IP-addressable audio networks on the Dante and AES67 platforms. It incorporates an 8” polypropylene driver with butyl rubber surround and a 1” silk dome tweeter in a sealed drawn steel backcan with a tuned port. The speaker delivers frequency response of 55 Hz – 22 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTube’s proprietary BroadBeam Ring™ technology. Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration and zoning of the speaker is done via software. Should any problem occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software. Mounting hardware for the IPD-CM82-BGM is included and features SoundTube’s SpeedWing™ constant-tension fixed-wing mounting system, along with a 21-gauge steel tile bridge which ensures rapid and secure installation in any drywall or drop-tile application. The tile bridge is color-coded to match the speaker. An optional pre-construction bracket is also available
Features:
- IP-addressable, self-powered (PoE) speaker. Dante™ and AES67 interconnectivity with any Dante and AES67 enabled audio systems.

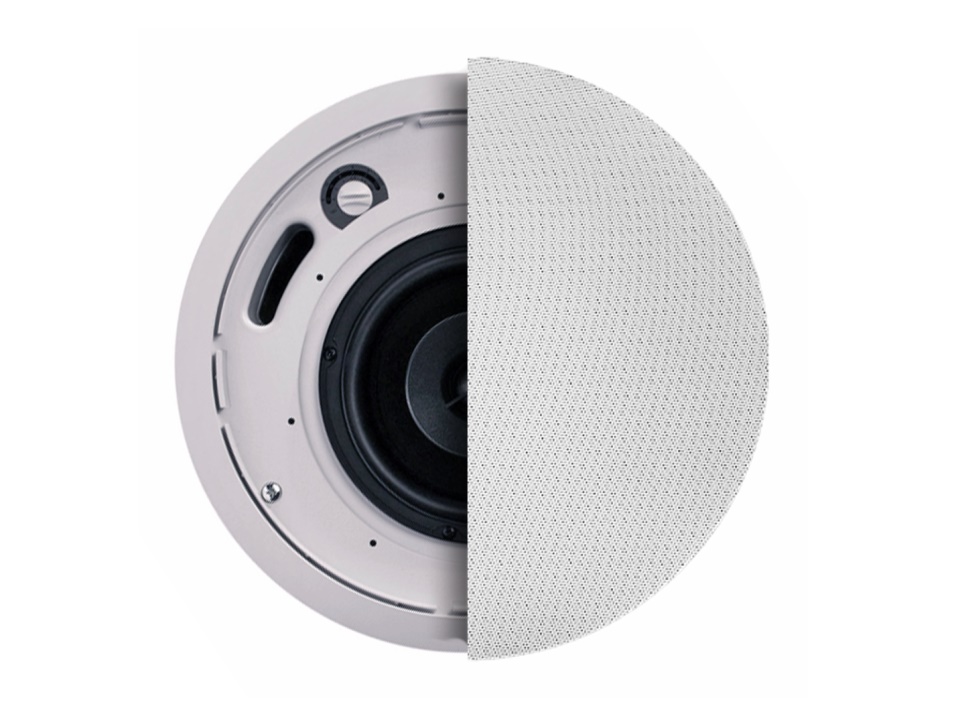

- One 8” (203 mm) polypropylene woofer with rubber surround and one 1” (25.4 mm) silk dome tweeter.
- BroadBeam Ring™ technology for mid-range clarity and ultra wide off-axis performance

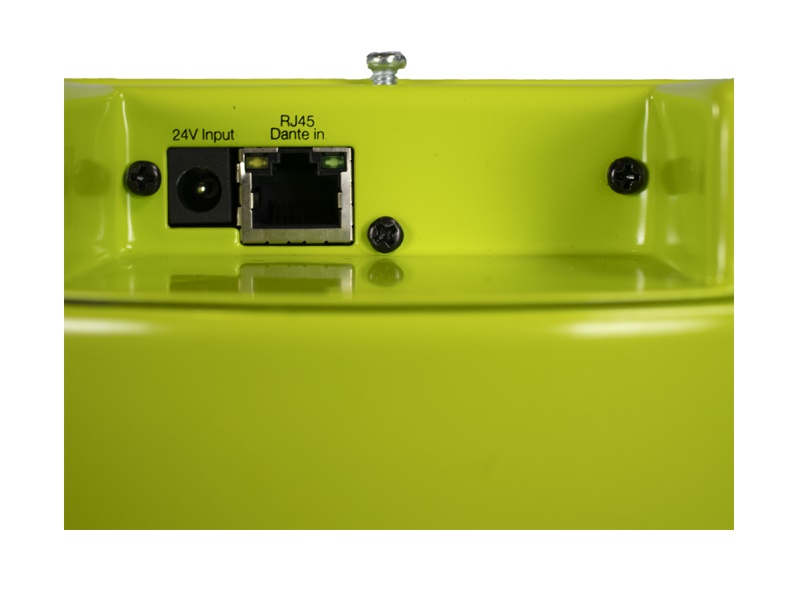

- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Tuned port on baffle for added musicality and bass response down to 55 Hz (±10 dB).
- Incorporates a painted steel grille for lasting durability.
- SpeedWing™ clamping system is adaptable to material thicknesses ranging from 0.035” (0.9 mm) to 2.5” (63.5 mm)
- UL 60065 and 2043 listed.
- High-quality white painted finish. Custom colors available.
- Included accessories: color-coded (green) tile bridge, UL listed 0.5” conduit clamp, paint shield.
- Optional accessories: color-coded (green) preconstruction bracket (AC-CMEZ6/8-PCB).
