Description

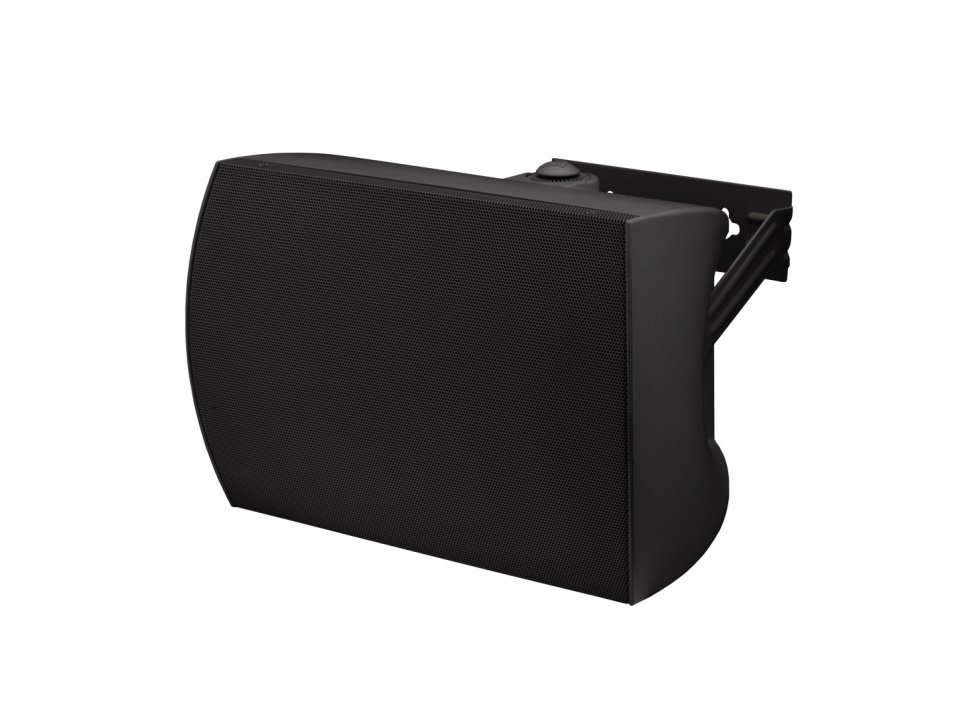

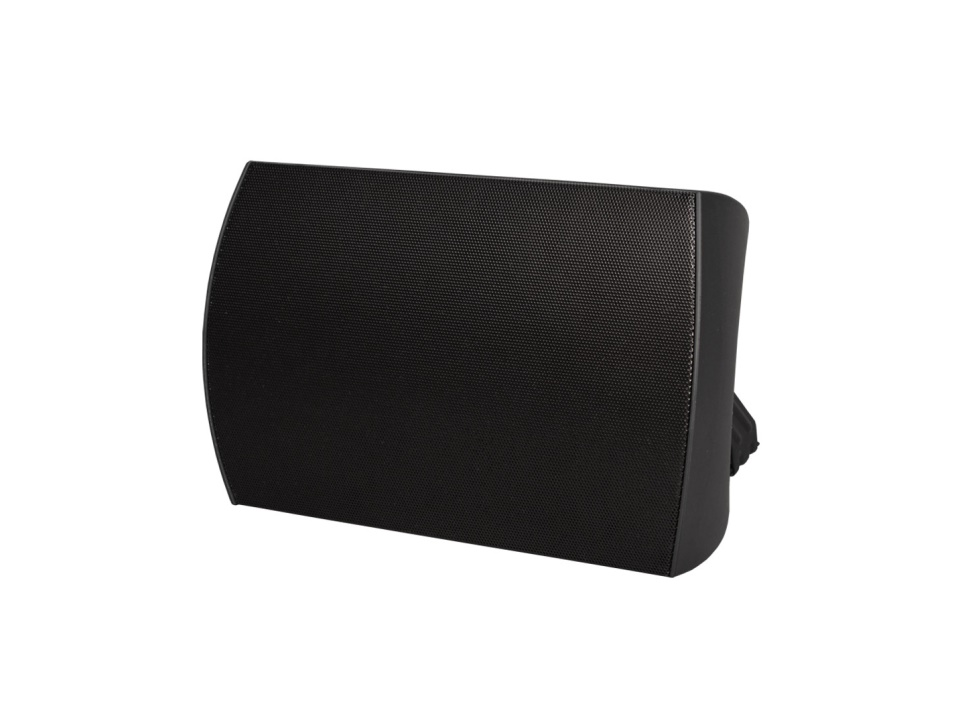

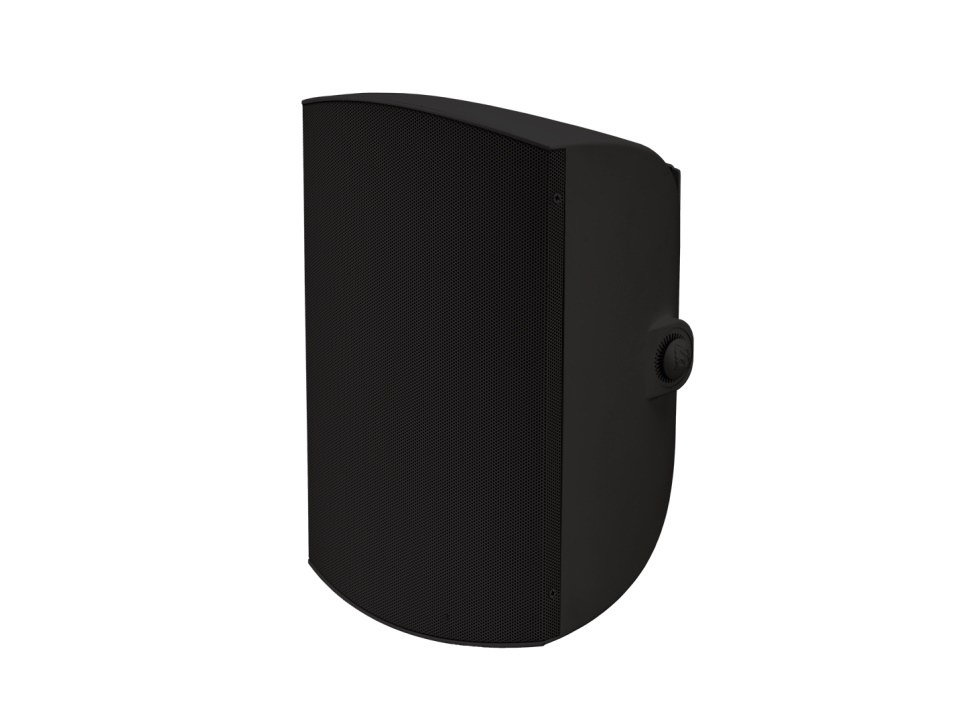

Download Manual The IPD-SM52-EZ-WX is a 5”, two-way surfacemount speakers for IP-addressable audio networks on the Dante platform. It incorporates a 5.25” polypropylene woofer and 1” soft dome tweeter in an injection-molded enclosure. The speaker delivers a frequency response of 55 Hz – 22 kHz (±10 dB) with consistent, broad high-frequency dispersion supplied through SoundTube’s proprietary BroadBeam Ring™ technology.
Power, audio, and control are delivered to the speaker via a CAT5 or CAT6 cable; connection on the other end is made to the STNet Switch, which provides 40 W PoE (Power over Ethernet) to each speaker. Configuration of the speaker is done via software. Should any problems occur with the speaker during operation, it will be reported immediately via SoundTube monitoring software.
Features:
- STNet IP-addressable, self-powered (PoE) speaker.
- Dante™ I/O for interconnectivity with Danteenabled audio systems.
- BroadBeam Ring™ delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
- One 5.25” (133 mm) polypropylene woofer and one 1” (25.4 mm) soft dome tweeter.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.
- Aluminum grille with powder-coat finish.
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications.
- High-quality black or white paint finish.
- Included accessories: safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing.
