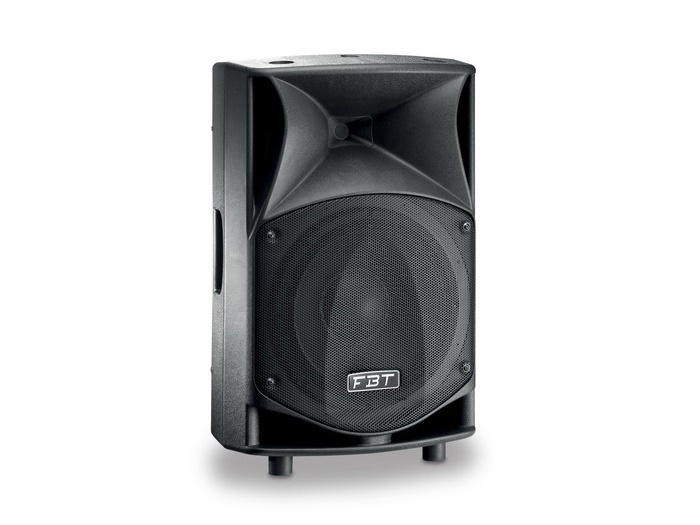

Download Manual The FBT JMaxX 114A two way active reinforcement speaker system shall incorporate 1 x 14″ LF woofer with 2.5″ voice coil and 1″ exit throat HF compression driver with 1.4″ voice coil coupled to a 90°H x 60°V constant directivity horn. Thanks to the asymmetrical shape also allows use as a stage floor monitor at 12°, 40°, 55°. The FBT JMaxX 114A shall meet the following performance criteria: frequency response of 45Hz to 20kHz, maximum SPL of 132 dB, 700W RMS + 200W RMS Class D power amplifiers.
The FBT JMaxX 114A provides a DSP with 4 factory equalization presets. With its eye-catching gas-injected forms designed to virtually eliminate undesired enclosure resonance and reinforce strong low frequency performance, The FBT JMaxX providing a myriad of possibilities for bands, DJ and solo artists. Afront face steel grille protects the woofer fro external damage. The control panel provides XLR/Jack input, XLR link, level, preset switch, HP filter button, line/mic button, two status led (PRT-LIMITER / ON). The two M10 fly points built into the cabinet, along with the optional mounting bracket, allow the The FBT JMaxX 114A speaker to be surface mounted on walls or ceilings and standard 1.38″ speaker stand socket allow the The FBT JMaxX 114Ato be mounted on speaker stand.
Features:
- Processed 2-way active loudspeaker
- 1″ exit throat HF compression driver
- 14″ LF woofer / 2.5″ voice coil
- Sturdy gas-injected polypropylene molded enclosure
- 2 x M10 suspension points, 1.38″ top-hat speaker
- stand socket, wall bracket mount flange plate
- DSP with 4 EQ presets
- Stage monitor angling facility with 12°, 40°, 55° taper
- Completely manufactured in Italy
