Description

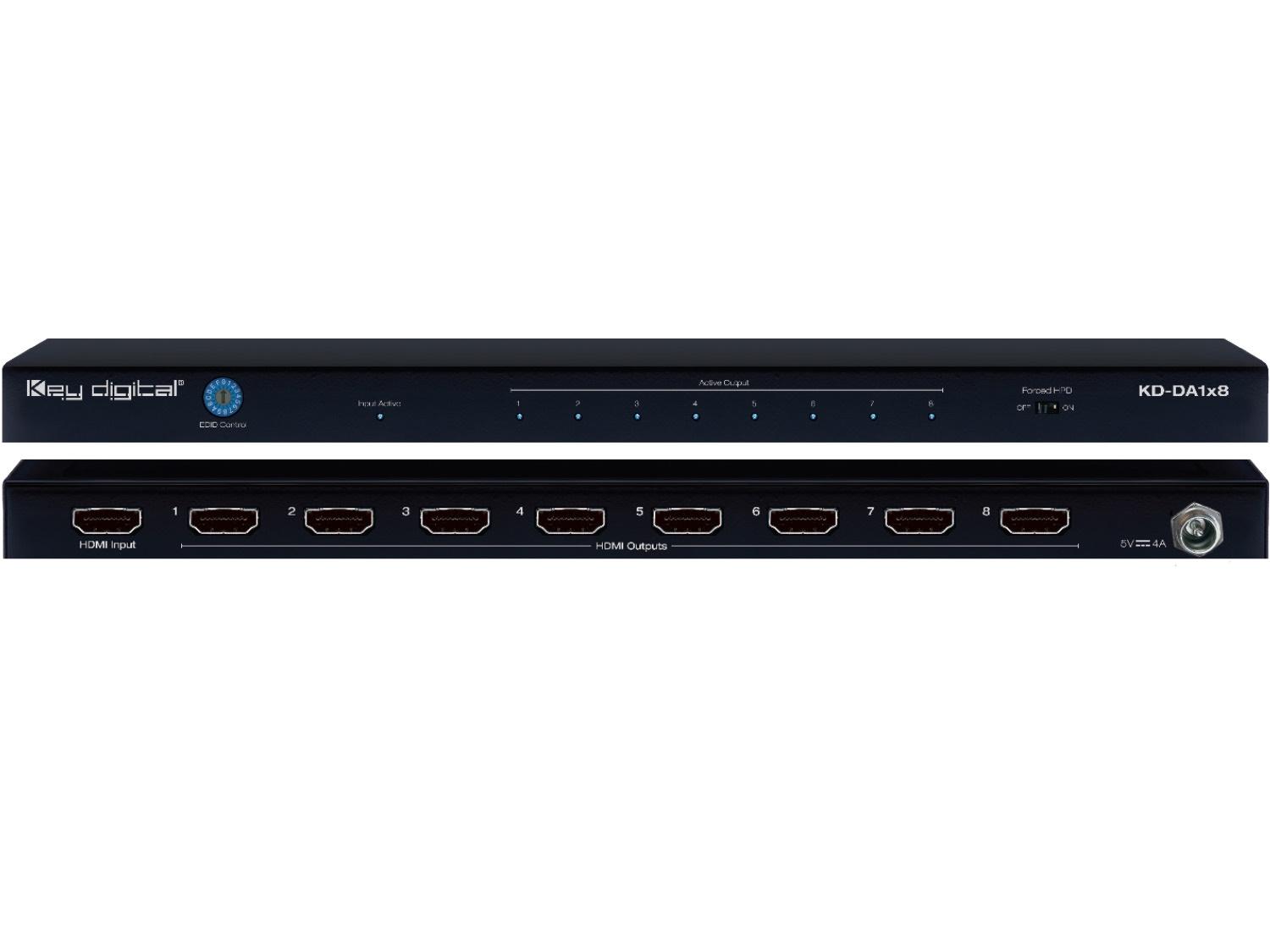

Download Manual 1 Input to 8 Outputs HDMI Distribution Amplifier, supports HDR10, HDCP2.2, Ultra HD/4K
Features:
- Digital Distribution: 1 HDMI Source to 8 HDMI Displays
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- HDCP2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
- Ultra HD/4K Resolution: 4096×2160 or 3840×2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Resolution Support: SD, HD, and VESA up to UHD/4K
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
- Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
