Description

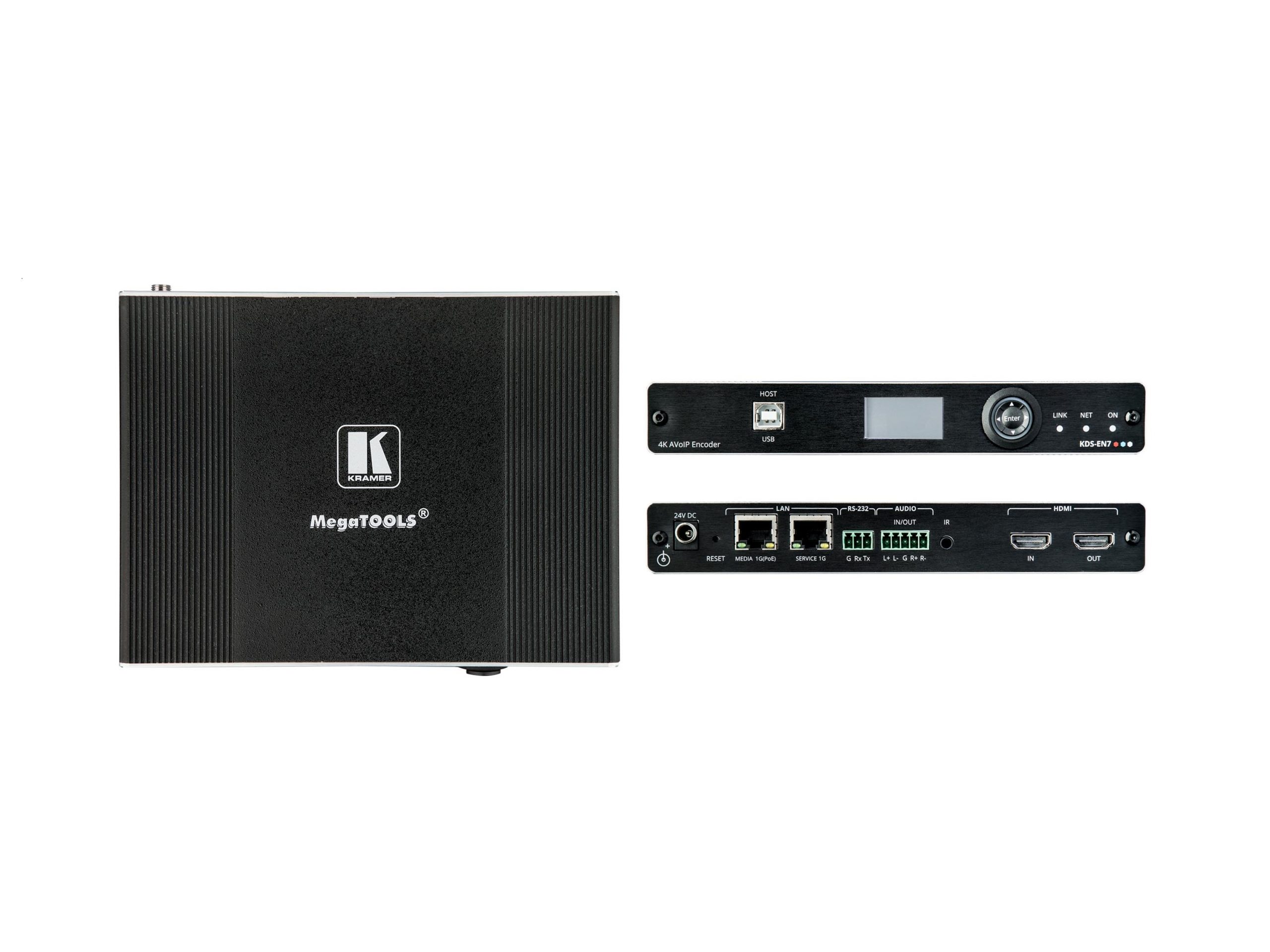

KDS-EN7 encoder is an advanced transmitter for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable. It encodes and streams over an IP network from HDMI input, and transmits the USB, IR, RS232, or CEC signal over IP network.
Features:
Outstanding end-user experience
- Rich set of inputs and interfaces
- Easy-to-use KM/KVM – Searchable OSD Menu for KM and fully configurable KVM roaming
- Large scale video wall – up to 16×16
- Instantaneous switching time – 1 second
Ideal for large-scale deployments
- Highly scalable – 999 channels build in support
- State of the art management device
- Rich set of management capabilities – Standard P3K Open API , LCD screen for configuration
Robust security
- Enterprise IT-grade security – 802.1x and HTTPS/TLS
- Security certification – OWASP Top 10 certificate
- Separate ETH ports for optimal security and experience
- New HW architecture that enables robust FW update
Simple planning and rollout:
- Cost-effective from day one
- Full product range for any site, any application
- Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.
PoE Support
- Using PoE switch – up to 13W consumption
Alternative sources/destinations
- HDMI Loop-Through on Encoder and HDMI Input on Decoder
Analog Audio
- Embedding and De-embedding
Control gateway
- Through P3K control/communicate with IR, RS232, or CEC to the connected devices
