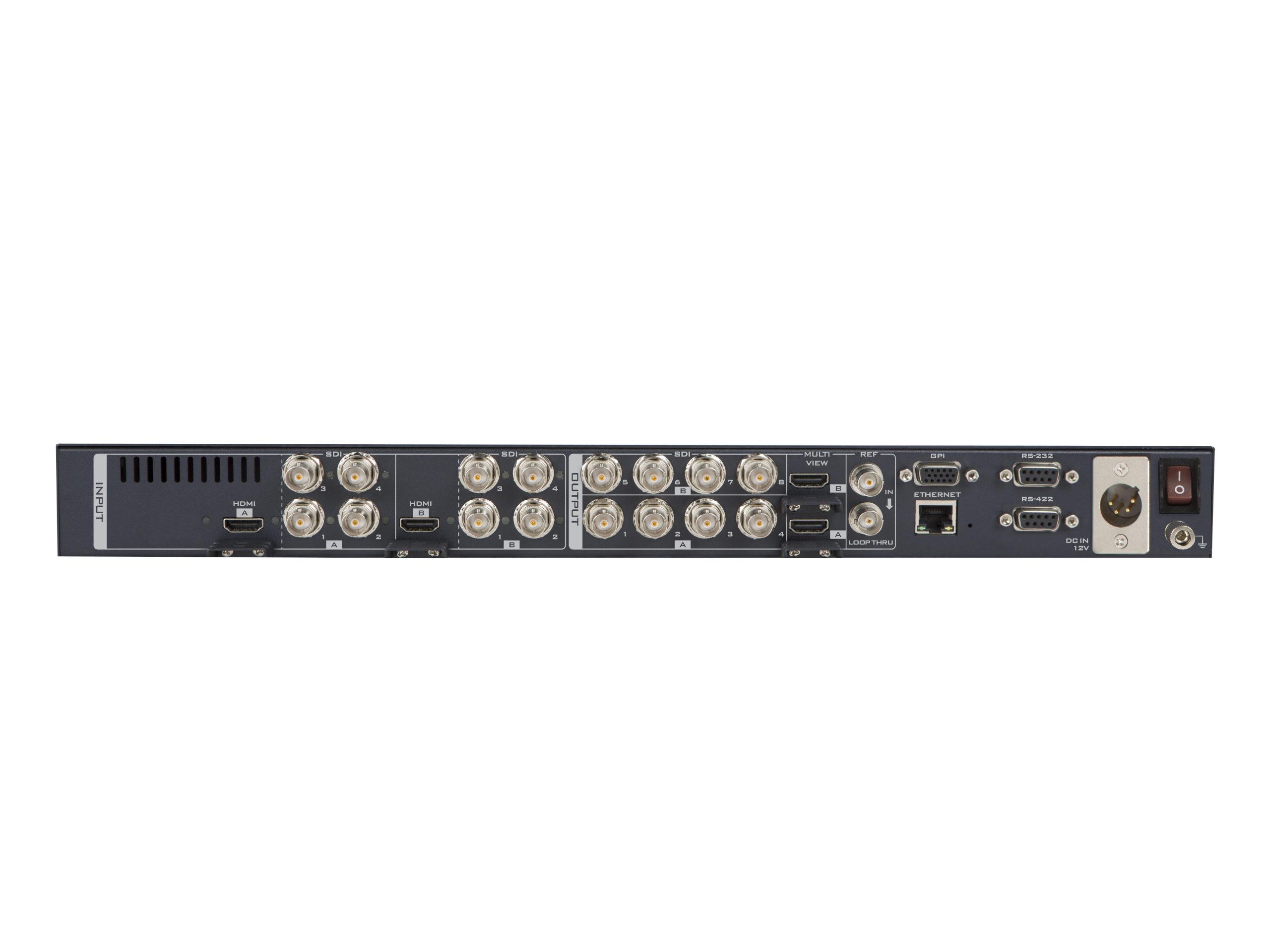

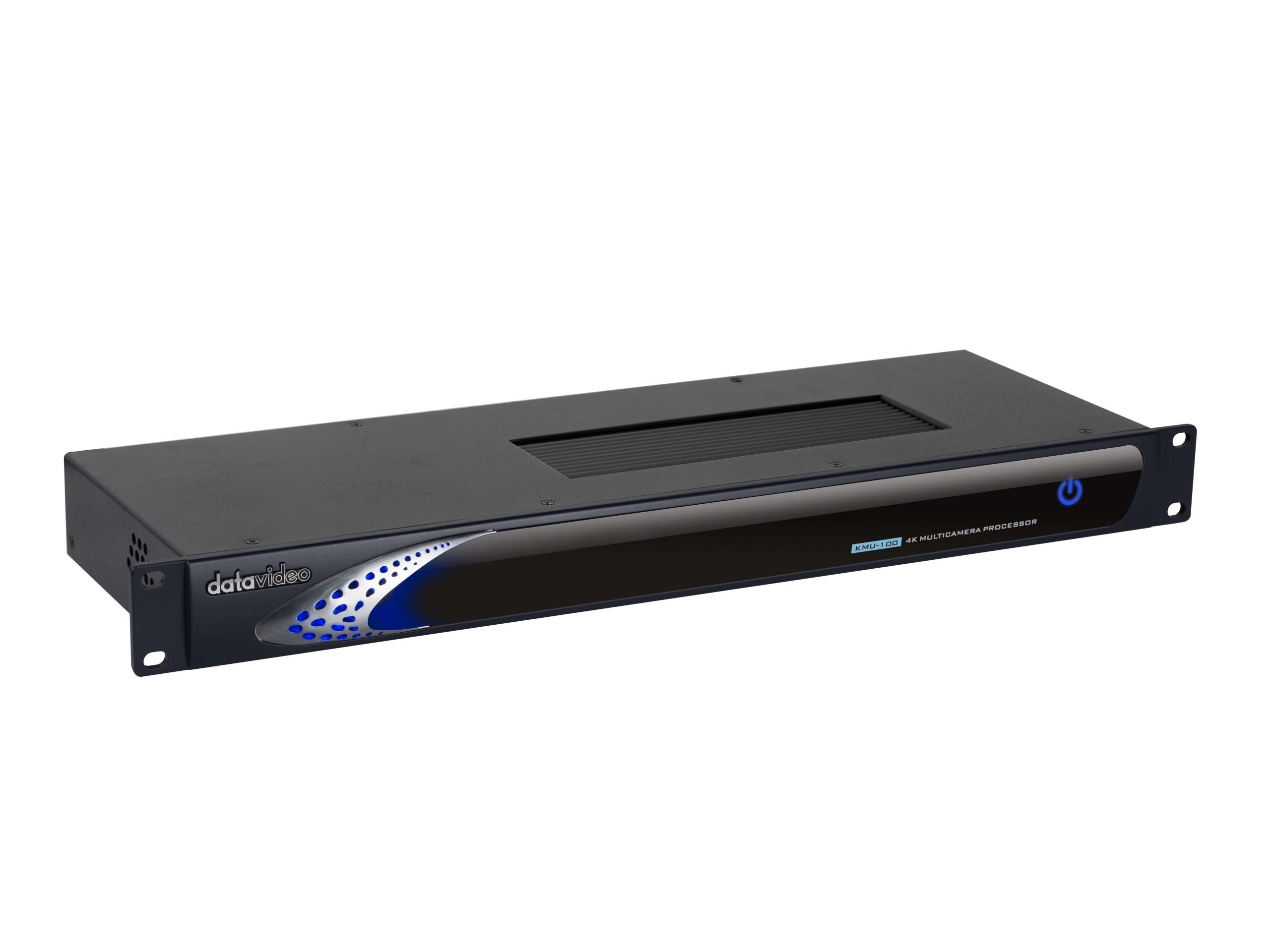

| Connections |
| SDI Video Input |
2 x (1) -10 bit HD, 3G levels A and B, 12G UHD switchable |
| 6 x (2,3,4) - 10 bit HD, 3G levels A and B switchable; Usable as Quad
SDI; 4x3G SDI input for UHD |
| HDMI Video Input |
2x HDMI type A connector with support for 2160p60 |
| SDI Video Output |
8 x - 10 bit SD, HD, 3G levels A and B switchable |
| HDMI Multiviewer Video Output |
2x HDMI type A connector with support for 1080p50/59.94/60 |
| SDI Audio Input |
16 channels in HD, 3G HD, and UHD |
| SDI Audio Output |
16 channels in HD, 3G HD, and UHD |
| Multi Rate Support |
SDI connections are switchable between standard definition, high
definition and UltraHD |
| Sync Input (Genlock) |
Blackburst or TriSync |
| Computer Interface |
Ethernet RJ45 for control, configuration and updates RS-232 x 1 input for
controlling configuration |
| Software |
| Software Control |
A dedicated software control utility application for changing settings
via Windows 7, Windows 8, and Windows 10 is included free of charge. |
| Power Requirements |
| Power Supply |
Included external 12V / 5A power supply |
| Environmental Specifications |
| Operating Temperature |
5° to 50 ° C (41° to 122° F) |
| Storage Temperature |
-20° to 45°C (-4° to 113°F) |
| Relative Humidity |
0% to 90% non-condensing |
| Processing - Two independent channels |
| Outputs Definition |
Each channel has a definition of four rectangles indicating the way the
input signal is divided into 4 different outputs. The content bordered by each
frame window will be sent to a corresponding output. |
| Windows Animation |
Animation is possible for every frame window. User selects the size and
position of Start and Stop rectangles. Motion modes available: Single - Single
movement from Start to Stop. Ping-Pong - Swing cyclical movement, i.e. Start-
Stop, Stop-Start, Start-Stop and so on (pendulum swing motion). Loop - Cyclical
movement, i.e. Start-Stop, Start-Stop and so on. |
| Multiview Output |
Preview of the outputs:
Preview - Four rectangles at their respective Start positions are visible
on the live input.
Motion preview - The Start, Current and Stop rectangles of the selected
Frame tab are visible on the live input.
Quad view - Preview of the content of four outputs. |
| Standards |
| SD Format |
Support |
| 1.5 Gb/s HD Format Support |
720p50 720p59.94 1080p25 1080p29.97 1080i50 1080i59.94 |
| 3 Gb/s HD Format Support |
1080pS0,1080p59.94 and 1080p60 levels A and B |
| Ultra HD Format Support |
2160p25, 2160p29.97, 2160pS0, 2160p59.94 |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE2082-1
|
| Audio Sampling |
Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD |
| Video Sampling |
4:2:2 |
| Color Precision |
10-bit |
| Color Space |
REC 601, REC 709 |
