Description
Download Manual KMU-100C Kit includes: KMU-100 and RMC-185

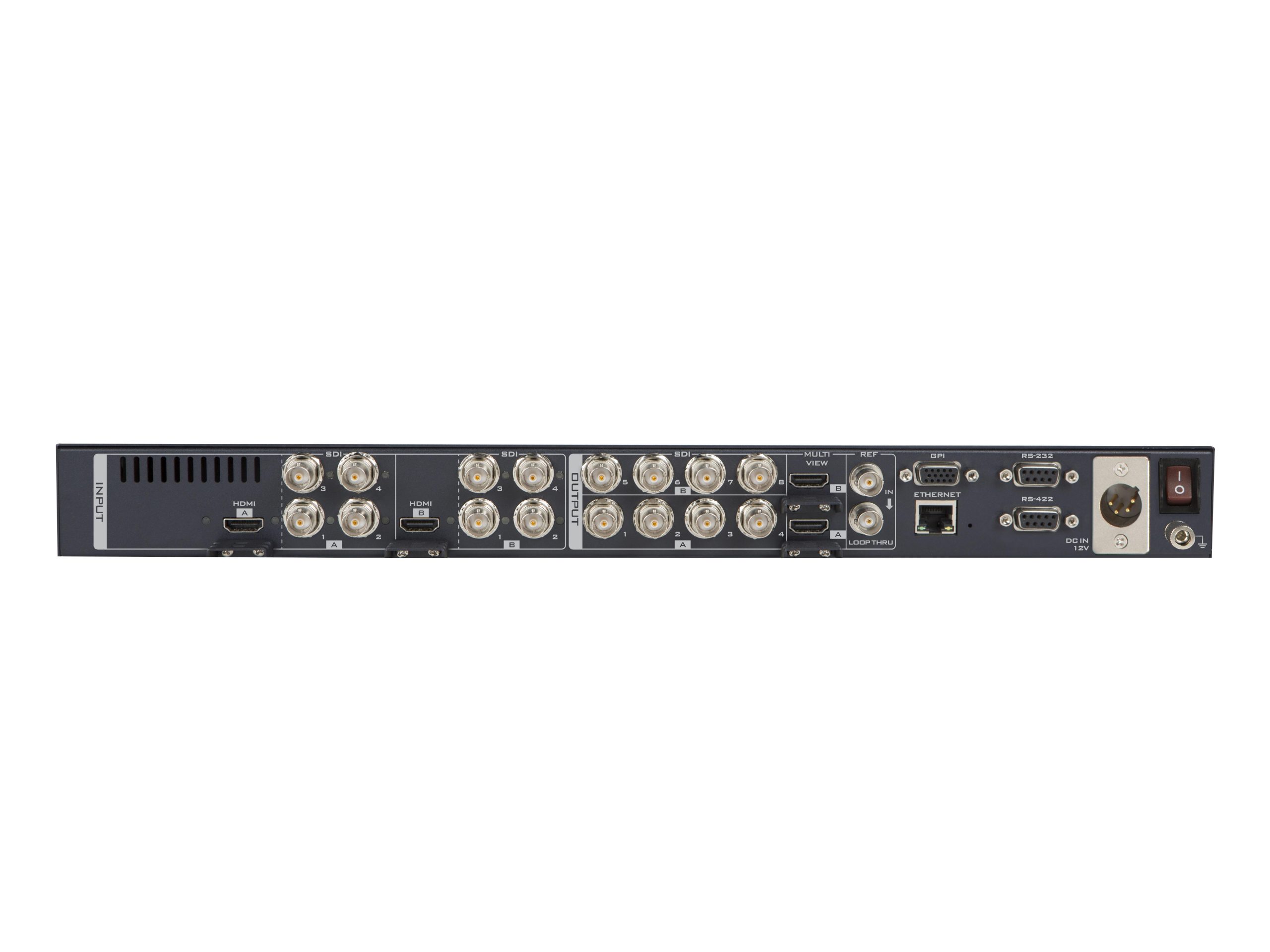

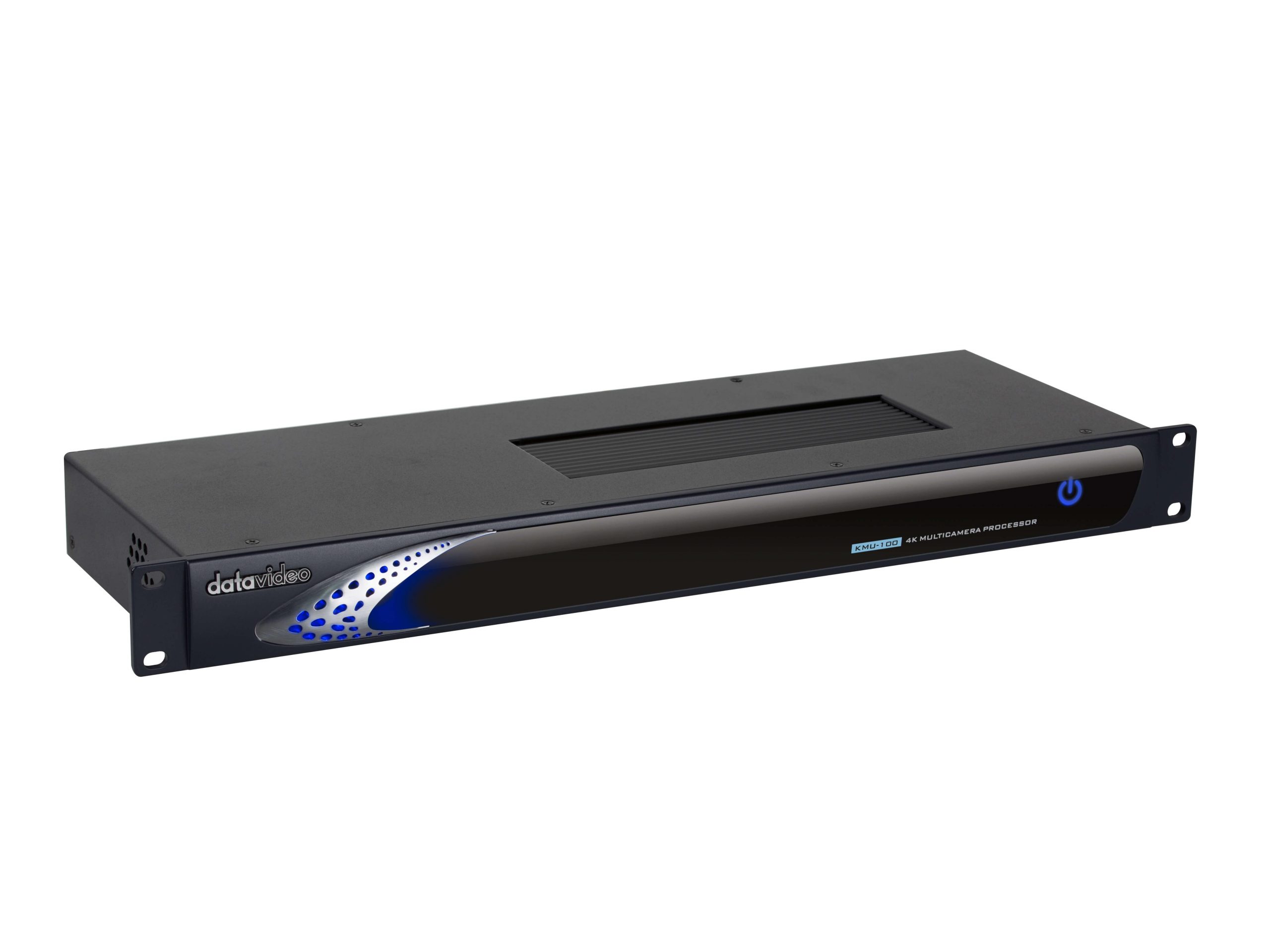

KMU-100
Datavideo’s all new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16×9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI. These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time.

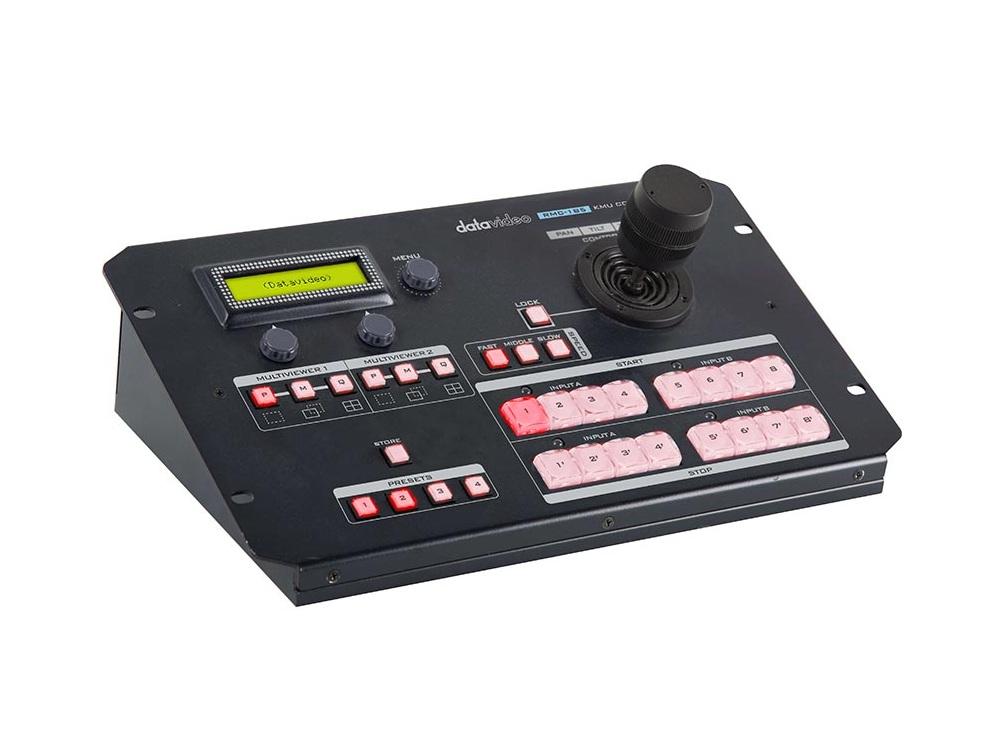

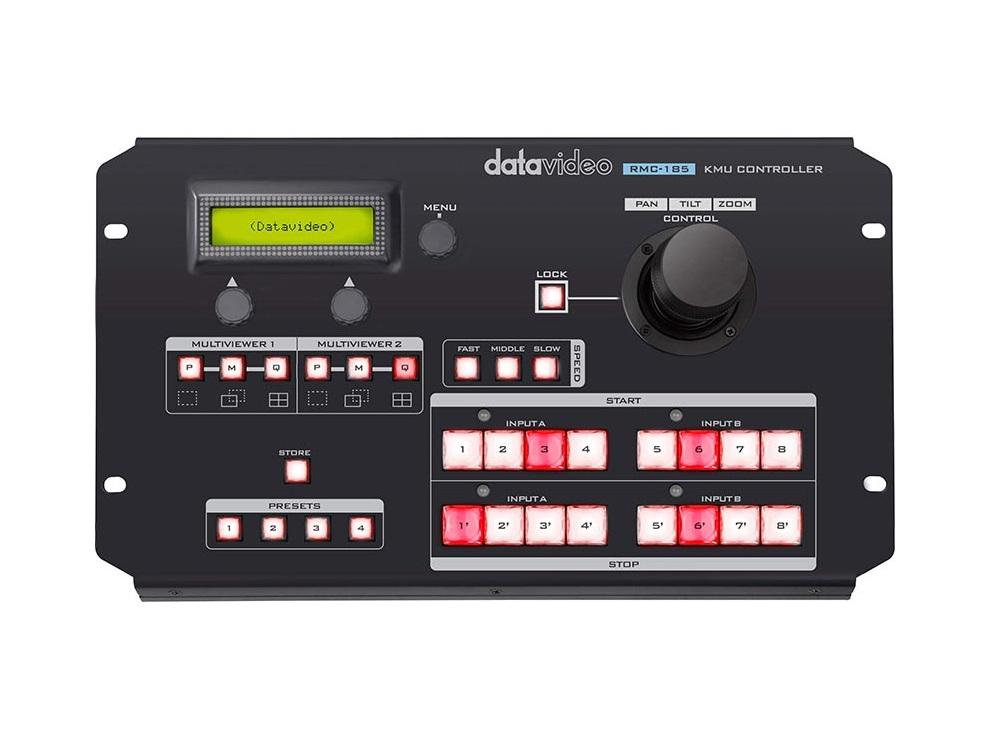

RMC-185
The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.
The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.
4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.
Features
- Dedicated control surface for KMU-100
- Provides easy and intuitive control of the KMU-100
- Easily pan, tilt and zoom to create the user defined windows on the 4K signal
- Switch between live and preview inputs
- LCD display showing setup menu options
- Three Multiviewer modes (Preview, A to B Motion and Quad)
- Robust, rugged metal housing
- Dimensions: 310 x 129.98 x 170mm
- Weight: 1.5 Kg
