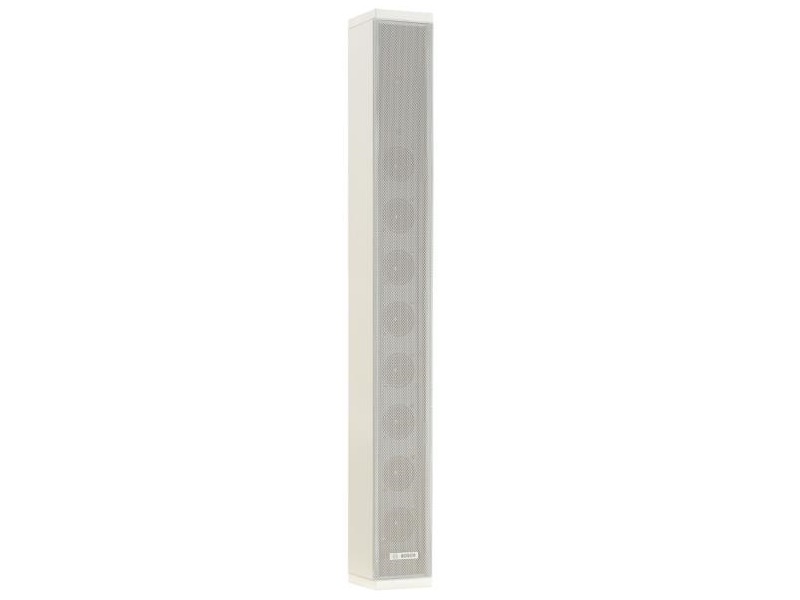

40 watt metal column loudspeaker
Features:
| Description | LA1-UM40E-1 |
| Rated power (PHC) | 40 W |
| Power tapping | 40 / 20 / 10 / 5 W |
| Sound pressure level at rated power / 1 W (1 kHz, 1 m) | 111 / 95 dB (SPL) |
| Sound pressure level at rated power / 1 W (1 kHz, 4 m) | 94 / 78 dB (SPL) |
| Effective frequency range (-10 dB) | 250 Hz to 16 kHz |
| Horizontal opening angleat 1 kHz / 4 kHz (-6 dB) | 240°/ 92° |
| Vertical opening angleat 1 kHz / 4 kHz (-6 dB) | 40°/ 12° |
| Rated input voltage LA1‑UM40E‑1 | 17.89 V , 70 V , 100 V |
| Rated impedance LA1‑UM40E‑1 | 40 W , 8 Ohm , 125 Ohm , 250 Ohm |
| 20 W | N/A , 250 Ohm , 500 Ohm |
| 10 W | N/A , 500 Ohm , 1000 Ohm |
| 5 W | N/A , 1000 Ohm , 2000 Ohm |
| LA1-UM40E-1 | |
| Dimensions (L x W x D) | 778 x 84 x 96 mm (30.6 x3.3 x 3.8 in) |
| Weight | 4.4 kg (9.7 lb) |
| Color | White (RAL 9010) |
| Materialenclosure front grille top and bottom | Aluminium Aluminium ABS |
| Connection | 1 m (39.37 in)3-wire cable |
| Connector(phase, common, earth) | 3‑pole screw block |
| Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Storage and transport temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
| Weight | 11.90 lbs |
|---|
