Description

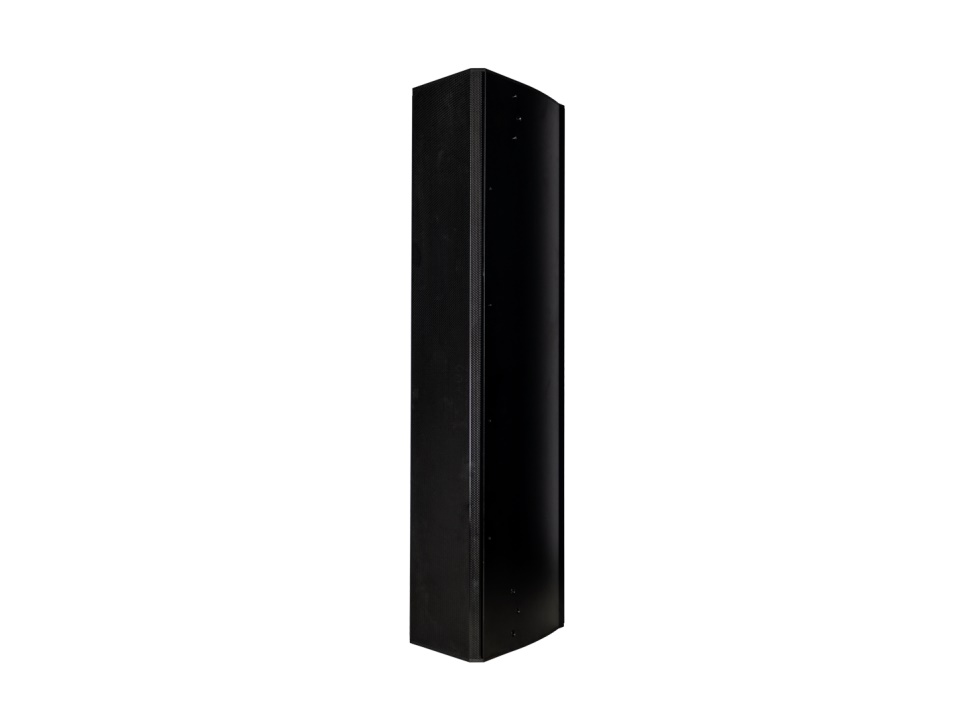

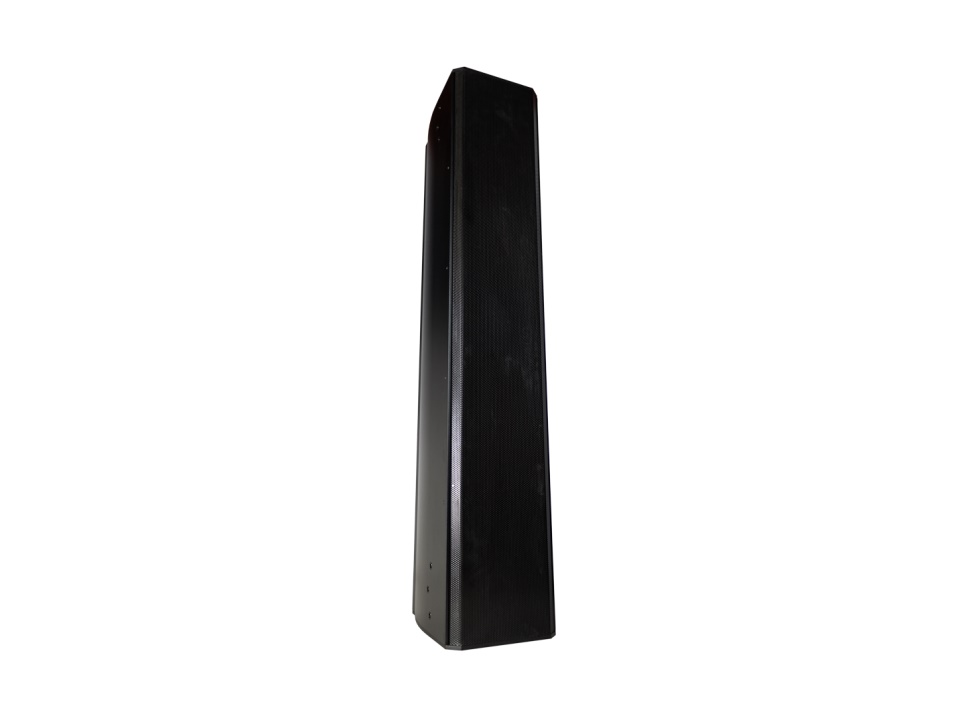

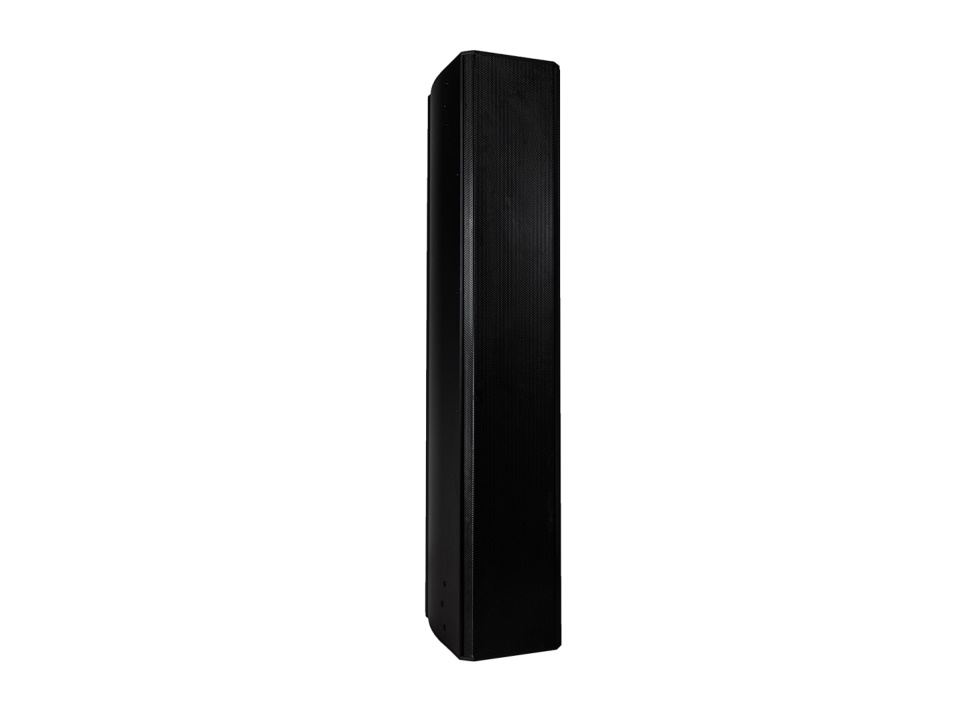

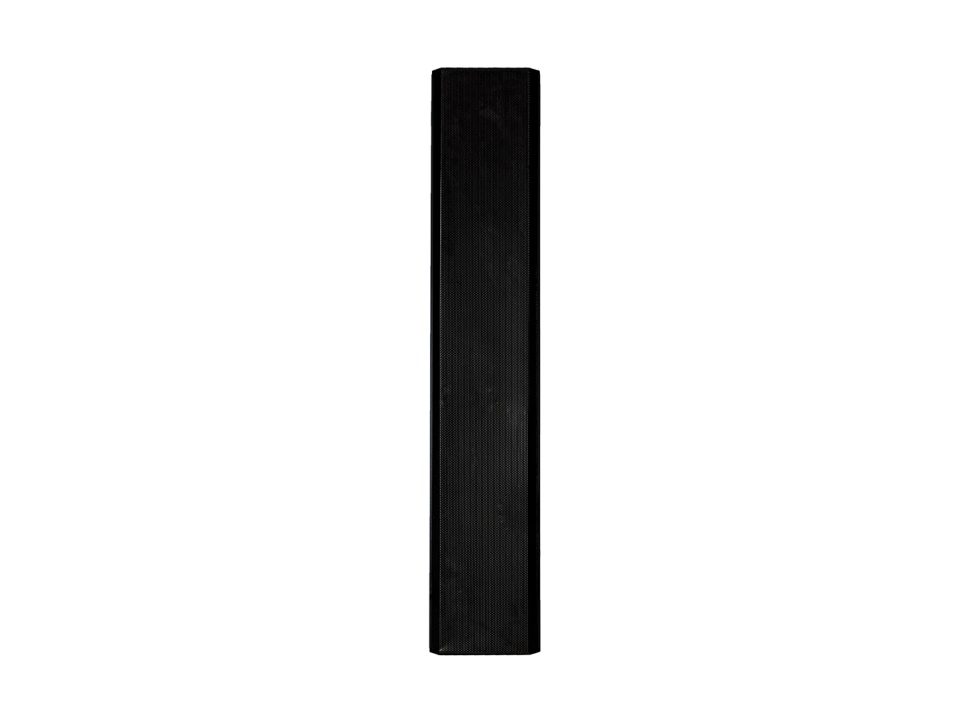

Download Manual SoundTube 3-way Line Array Speaker in Black (used only in conjunction with the LA880i 3-way line array)
NOT a subwoofer, the SoundTube LA808i-II is designed to increase the directivity of low frequencies in SoundTube’s Line Array system. It can be used only in conjunction with the LA880i-II 3-way line array. The use of the LA808i-II is recommended in spaces that have a large reverberation time. When a single unit is added to the LA880i-II, directivity of low frequencies is increased by up to an octave lower than with the LA880i-II alone.
The product’s dimensions are identical to those of the LA880i-II. The LA808i-II must be placed either directly above or directly below the LA880i-II in order for the system to work properly. If desired, two LA808i-II units can be added: one above the LA880i-II and one below.
Features:
- Passive, fixed length, low-frequency directivity element for SoundTube line array.
- Designed for use only with LA880i-II line array.
- Eight 4.5” (114 mm) woofers
- Extends low-frequency directivity of line array systems by up to an octave lower than with the LA880i-II alone.
- Paintable enclosure is constructed of MDF and aluminum with metal threaded mounting points.
- Powder-coated, paintable steel grille.
- Available in black or white paint finish..
- Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown). (Allen Products mounting accessories sold separately).
- Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining.
- Included accessories: safety cable mounting plate and mounting bolts, Euroblock connector, safety cable.
- NOTE: Mounting brackets not included.
