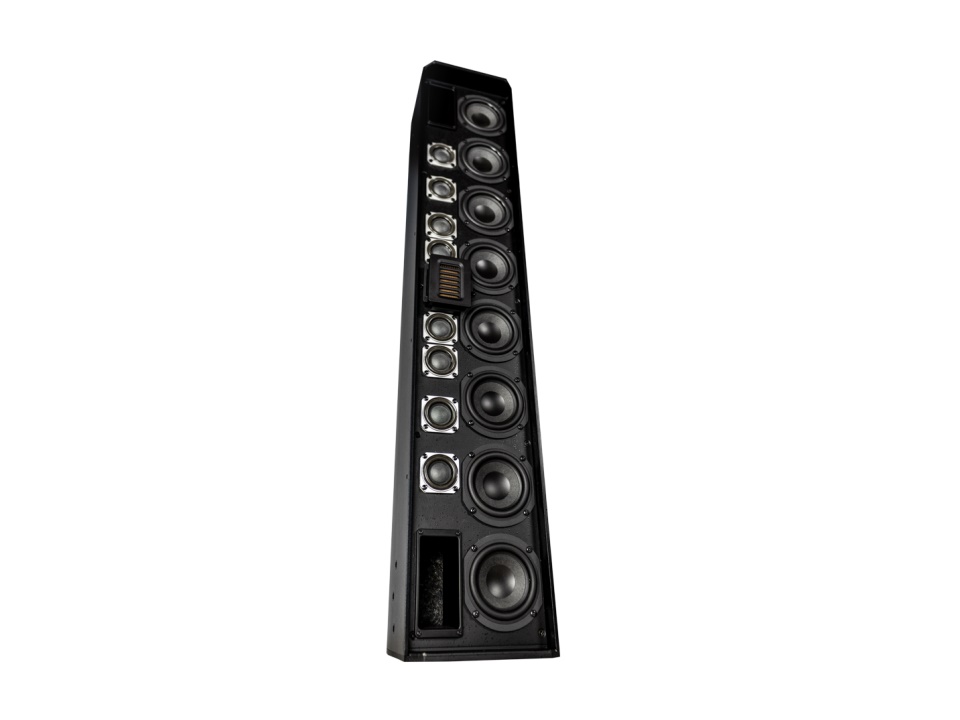

Download Manual The SoundTube LA880i-II is not a typical line array column loudspeaker. It is an advanced LAPS (Line Array-Point Source) 3-way design that provides a very short near-field extent and robust far-field performance. Frequency tapering of low and mid frequency pass bands allows the LA880i-II to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out-performs may other single box line arrays. Featuring eight 4.5-inch woofers, eight 2-inch midrange drivers, and one 2.5-inch planar magnetics (ribbon) high frequency response, the LA880i-II achieves superb coverage in an enclosure measuring only 7.56” (192.1 mm) x 41.0” (1041.4 mm) x 10.75” (273.1 mm).
Features:
- Passive, fixed length, column line array with 3-way design.
- Eight 4.5-inch (115 mm) woofers; eight 2.0-inch (55 mm)neodymium-motor midrange drivers; one 2.5 inch (66 mm) planar magnetics (ribbon) high-frequency driver.
- Line Array – Point Source (LAPS) technology provides short near-field extent and robust farfield performance.
- Paintable enclosure is constructed of MDF and aluminum with metal threaded mounting points.

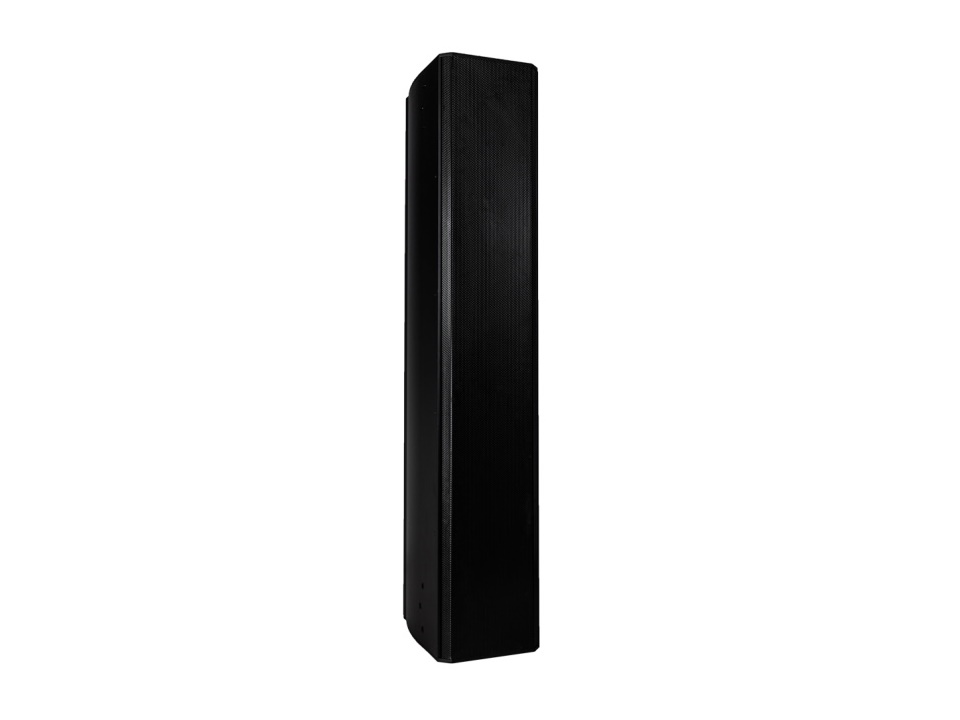

- Powder coated, paintable steel grille.
- Available in black or white finish.
- Flexible mounting options include surface-mount, pole-mount, ceiling-mount or suspended (flown). (Allen Products mounting accessories sold separately.)

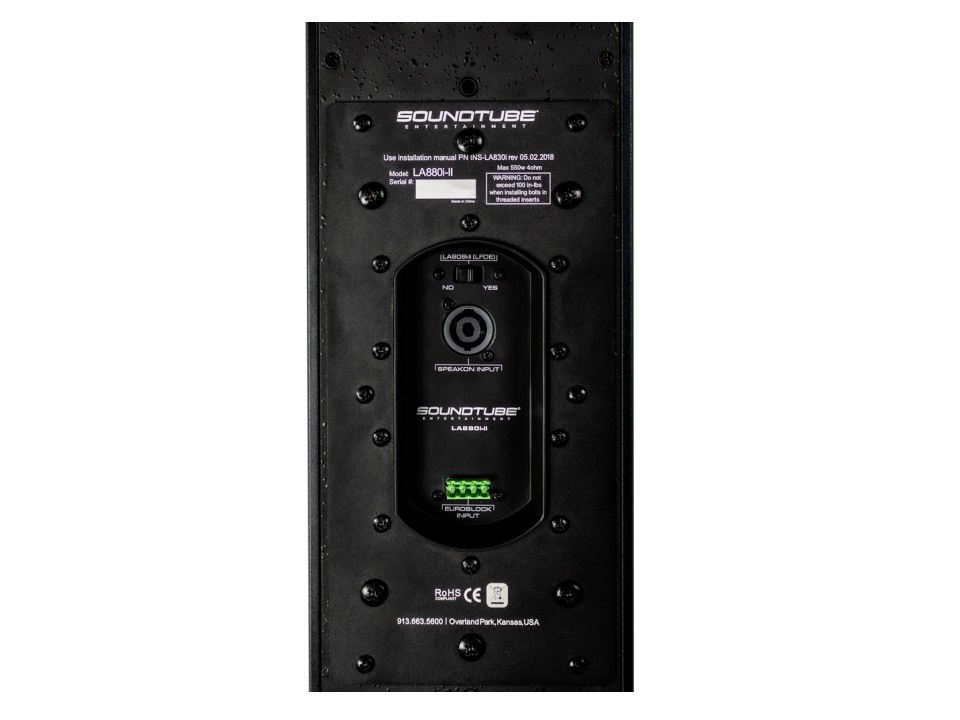

- Euroblock and SpeakOn connectors allow for fast connections and easy daisy chaining.
- Additional low frequency directivity control with LA808i-II LFDE.
- Included accessories: safety cable mounting plate and mounting bolts, Euroblock connector, safety cable.
- NOTE: Mounting brackets not included.
