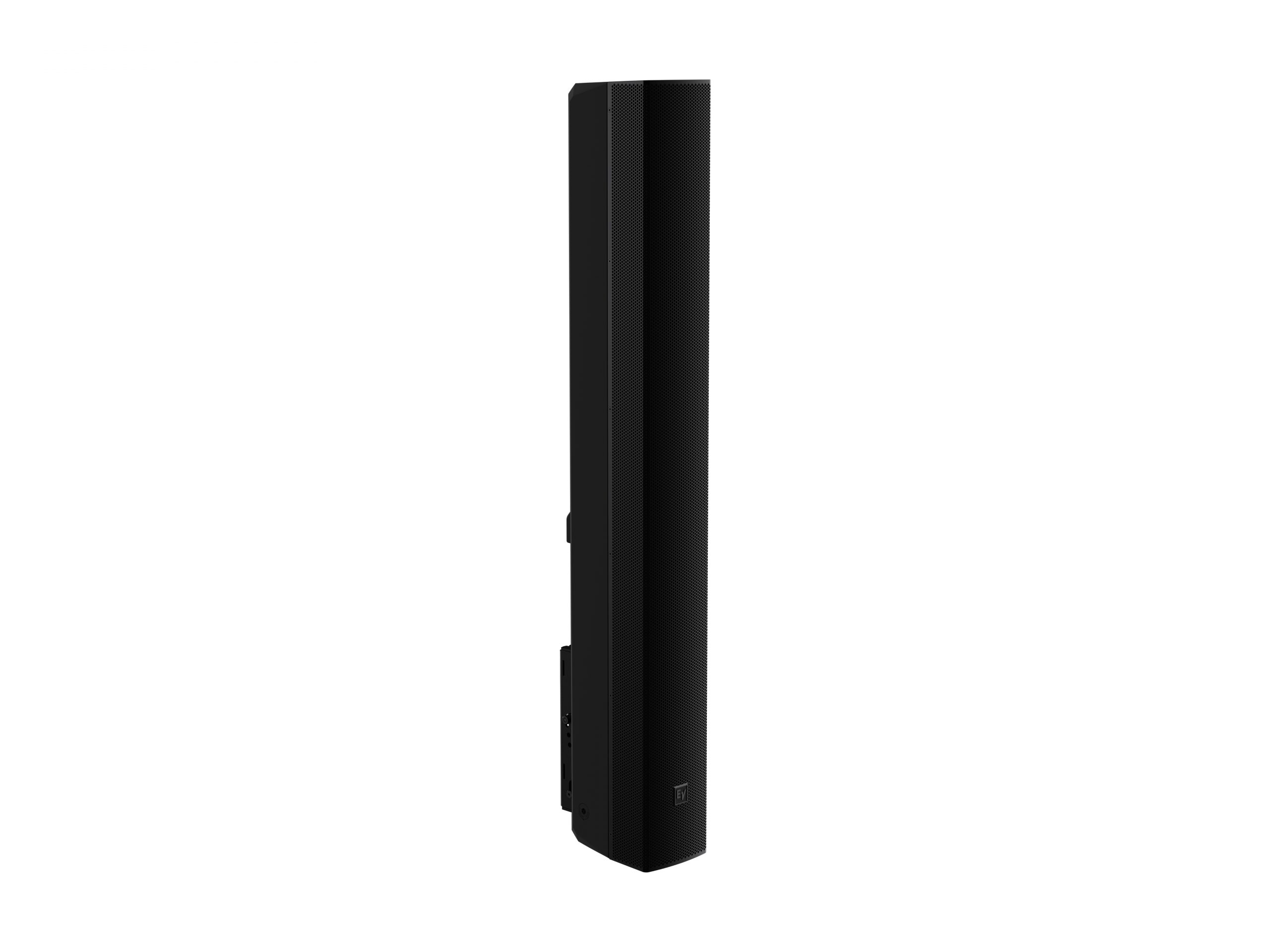

Download Manual The LRC-1100-B is a 1 meter passive column speaker engineered for installed audio applications – it provides speech and music reproduction in indoor and outdoor environments. This EN54-24 certified model delivers controlled horizontal dispersion and selectable vertical coverage to fit a variety of venue layouts. It is designed to blend into architectural spaces while meeting certified life-safety requirements where needed.

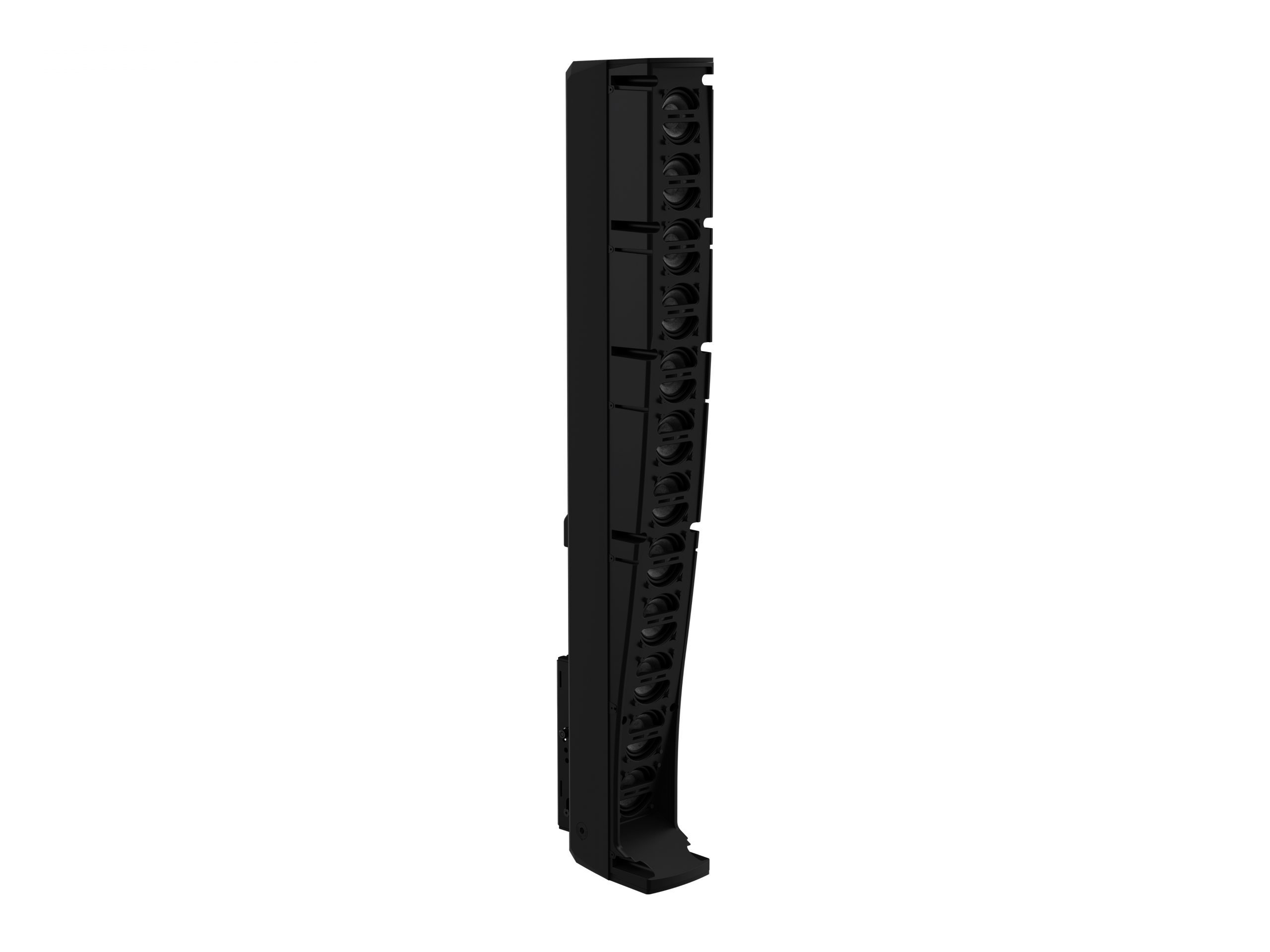

Key features include twelve 2.5 in active drivers, three passive radiators, and EV PaSS dispersion control to manage coverage and directivity. The system offers a wide 130deg horizontal pattern and switchable vertical patterns of 20deg or 40deg, plus a 5deg acoustic down-tilt to aim coverage. Power handling supports 200 W continuous and 400 W program power for robust SPL capability.
The LRC-1100-B supports 8 ohm low-impedance operation and 70/100 V distributed lines via an internal transformer with taps to 120 W, 60 W, 30 W, 15 W and 8 W options. Automatic Saturation Compensation (ASC) protects low-frequency response and system electronics when the transformer is used. Recommended electronic high-pass filtering is >=70 Hz Butterworth, 24 dB/octave to preserve performance and protect speakers.
Connector and mounting features include a 4-pin Euroblock input with pass-through, 12 AWG maximum wire capacity, two M8 suspension points, and a preinstalled SwifTilt multi-angle tilt and pan bracket. The mounting bracket allows zero tilt, down-tilt, up-tilt, pan and combined pan/tilt aiming for flexible deployment. Maximum horizontal pan range is +/-80deg and selectable vertical down-tilt stops range from 0deg to 25deg.
The enclosure is outdoor rated for full exposure and weather resistance and is supplied in signal black RAL 9004. The LRC-1100-B is compatible with system design tools and control platforms – supported by EASE/EASE Focus3 and SONICUE system software, and recommended for use with Dynacord DSP presets and amplifiers. These integrations help ensure predictable tonal balance and system protection across installations.
Installation is simplified by the preinstalled transformer, included SwifTilt bracket, and a gland nut weather cover for outdoor terminations. The product is built to installation-grade standards for reliability and repeatable alignment in distributed audio systems. For spec-driven system design, the LRC-1100-B offers certified performance, selectable coverage, and proven protection features that reduce commissioning time and operational risk.
