Download Manual The LRC-2100 is a passive 1 meter column speaker engineered for installed sound applications. It combines a slender industrial design with weather-resistant construction for indoor or outdoor deployments. The enclosure is available in white to blend with architectural finishes and is rated IP55 for protection against dust and water.
Acoustic design centers on twelve 2.5 inch mid-high drivers using proprietary PaSS dispersion control and two 6.5 inch band-pass woofers to deliver coherent pattern control and full-range output. Vertical coverage is switchable between 25° and 45° and the system provides a controlled acoustic down-tilt of 7.5° to focus energy on listening areas. The column form factor and included multi-angle SwifTilt tilt and pan bracket allow precise aiming and alignment.
Performance is specified from 45 Hz to 16 kHz (-10 dB) with maximum SPL ratings of 128 dB narrow and 126 dB wide. Nominal impedance is 8 ohm with a minimum of 6.4 ohm at 280 Hz and continuous power handling of 300 W (program 600 W). Axial sensitivity is 91.5 dB SPL 1W/1m narrow and 90 dB SPL 1W/1m wide which supports efficient coverage when driven by standard PA amplifiers.
Connectivity is via a 4-pin Euroblock input with pass-through capable of accepting up to 10 AWG conductors, simplifying daisy-chain installations. The speaker benefits from a recommended 50 Hz Butterworth 24 dB/oct high-pass filter and integrates with Dynacord DSP matrix processors and amplifiers for dedicated presets and system protection. EASE/EASE Focus3 and SONICUE support are provided for modelling and system tuning.
Typical applications include background and foreground music systems, speech reinforcement in houses of worship, retail spaces, transportation hubs, and hospitality venues where discreet aesthetics and controlled coverage are required. The LRC column can serve as a main speaker or supplemental support speaker depending on system design. Its controlled vertical pattern and selectable tilt angles reduce rear wall reflections and improve speech intelligibility in reverberant spaces.

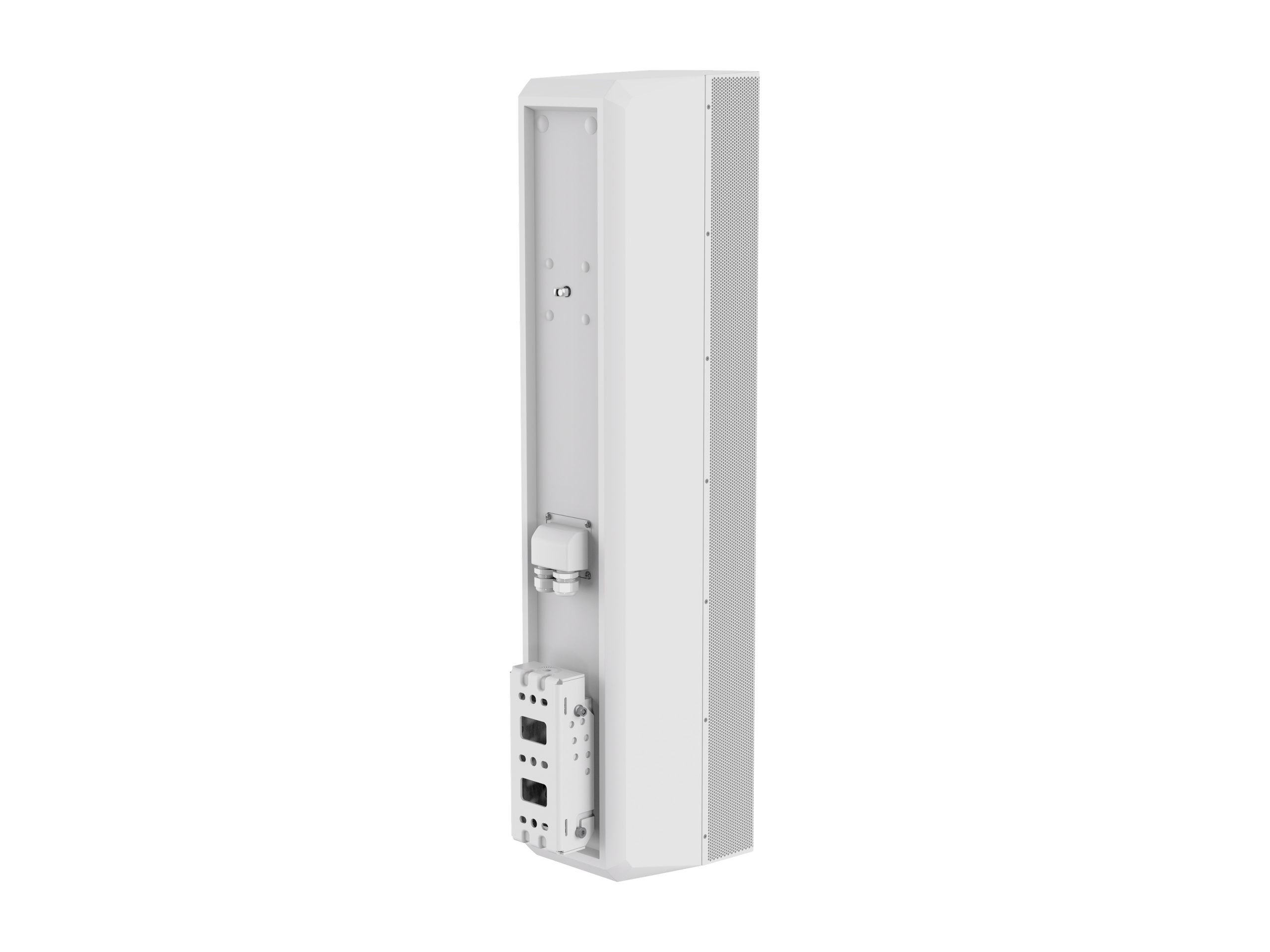

Installation is simplified by the included SwifTilt multi-angle tilt and pan bracket and six M8 suspension points for flown or wall-mounted configurations. The enclosure ships with a gland nut weather cover and dual-ended Allen key M8x20 mm eyebolt pre-installed to aid secure mounting. Durable finishes and IP55 protection help ensure long service life in exposed installations.
