Description
The M-Vision 30000 WU is a single-chip DLP laser-phosphor projector delivering 30,000 ISO lumens at WUXGA 1920 x 1200 resolution. It is designed to maintain high image brightness and colour saturation in environments with significant ambient light. The sealed optical path and filterless liquid-cooled design reduce maintenance and protect long-term performance.
Key imaging technologies include ColorBoost+Red Laser for expanded colour gamut and highly saturated reds, 10,000:1 dynamic contrast for deep blacks, and dual-pipe processing options for 3D workflows. The projector supports HDR and 10-bit colour processing for richer gradients and accurate skin tones. A sealed IP6X light engine ensures stable colour and brightness over time.
Performance highlights include a 0.96″ DarkChip 3 DMD, 30,000 ISO (26,700 ANSI) lumens output, typical laser life of 20,000 hours, and Constant Brightness mode for long-term output stability. The system supports 4K input up to 4096 x 2160 and automatic input detection. Built-in geometry and warp tools deliver precise alignment for complex surfaces.

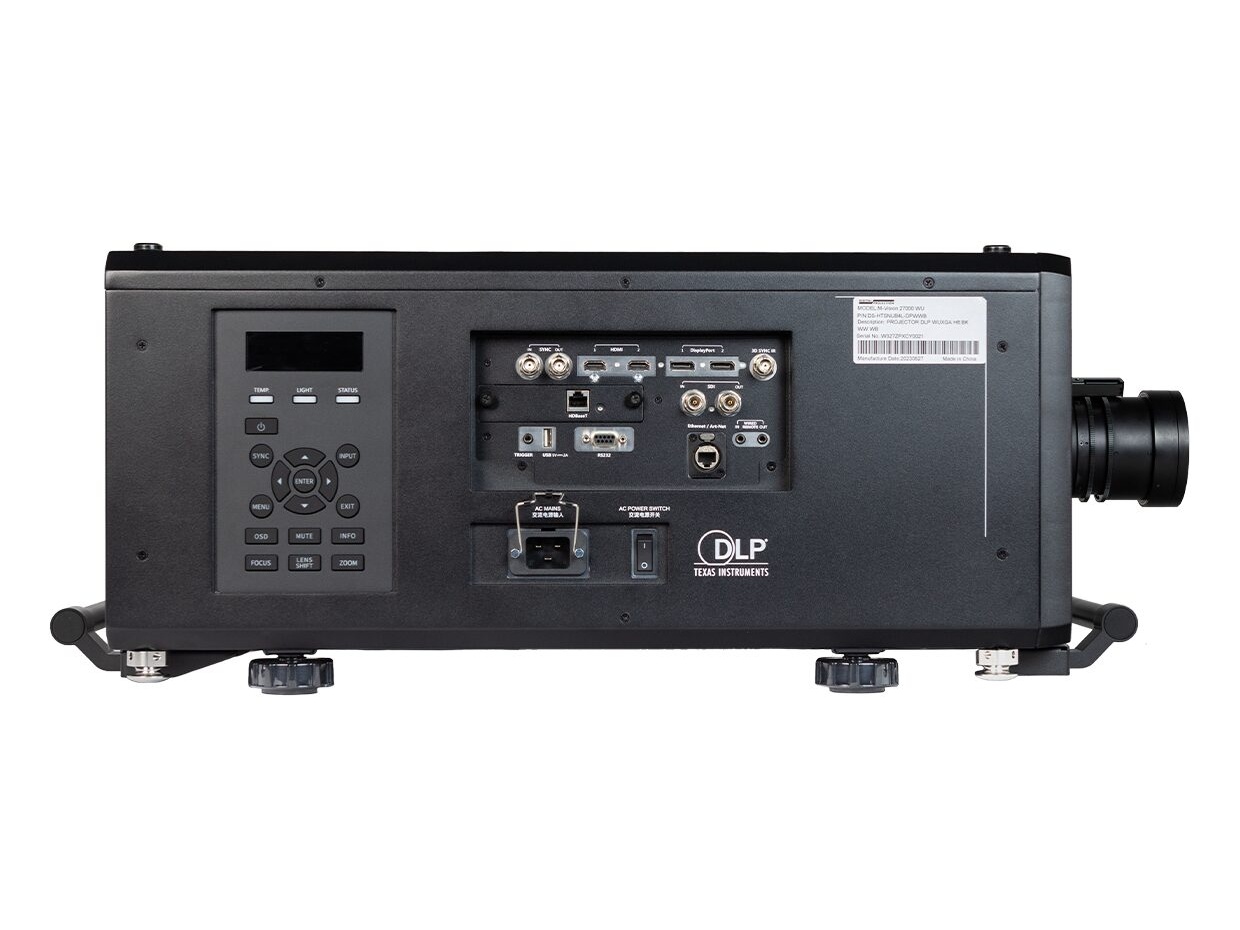

Connectivity covers DisplayPort 1.2, HDMI 2.0, HDBaseT with Ethernet/RS232/IR, and single-link 12G-SDI I/O with loopthrough. Control interfaces include Ethernet/Art-Net, RS-232, 3D sync BNC, USB power out and wired remote I/O. Input redundancy and auto-switching protect mission-critical deployments.

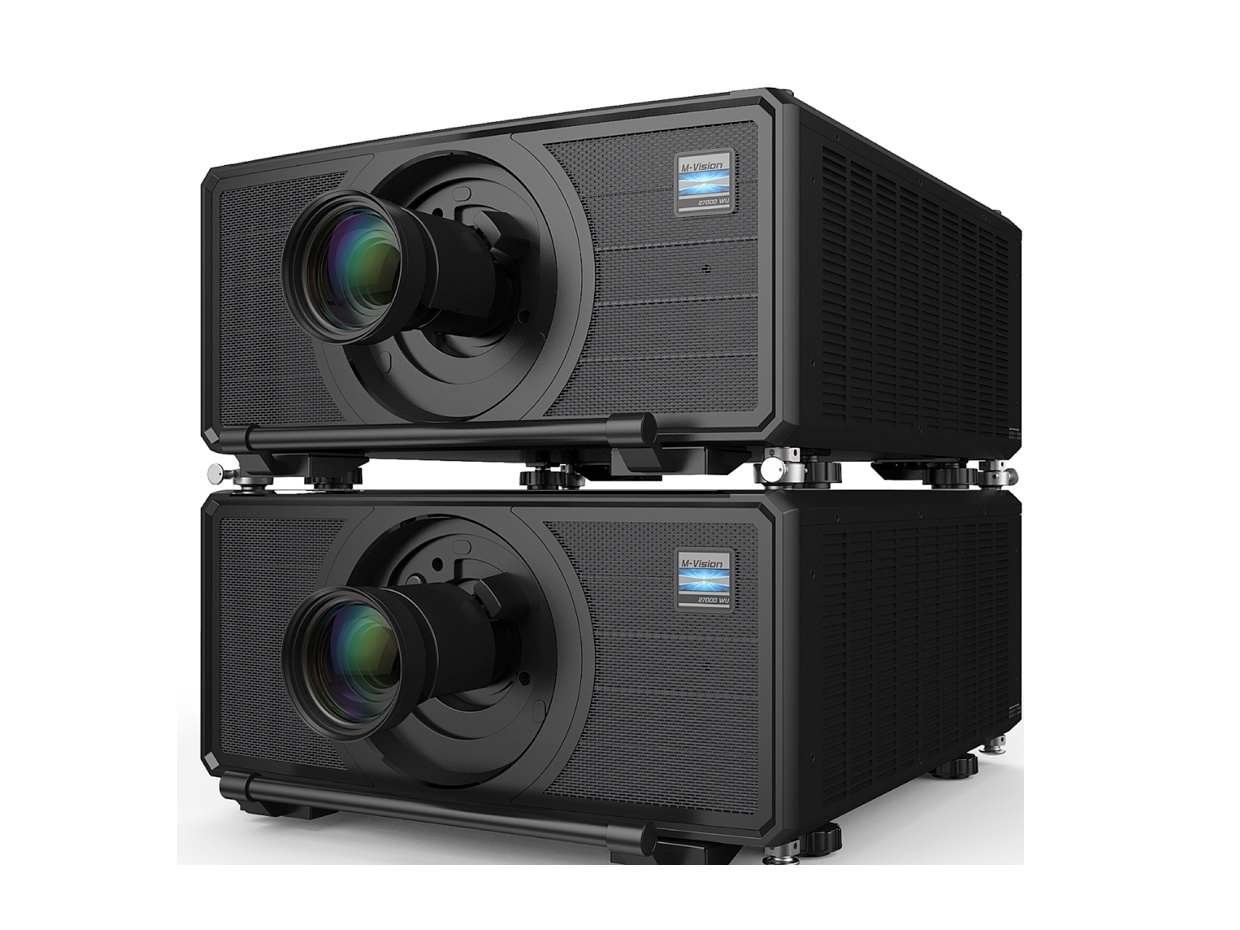

Typical applications include rental/staging and live event shows where ambient light is high, large-venue installations such as auditoriums and houses of worship, and fixed installations in museums or themed attractions requiring long-term colour stability. The projector is suitable for single-chip environments that need 3-chip style colour fidelity. SmartStack and source redundancy add operational resilience for live productions.
Installation is simplified by an extensive lens range including a 0.38:1 UST option, motorised zoom/focus/shift and intelligent lens memory for up to 10 presets. On-board geometry correction, edge blending, and uploadable warp maps reduce setup time. Robust mechanical design, 24/7 rated operation and a comprehensive control feature set support demanding professional installations.
