Description

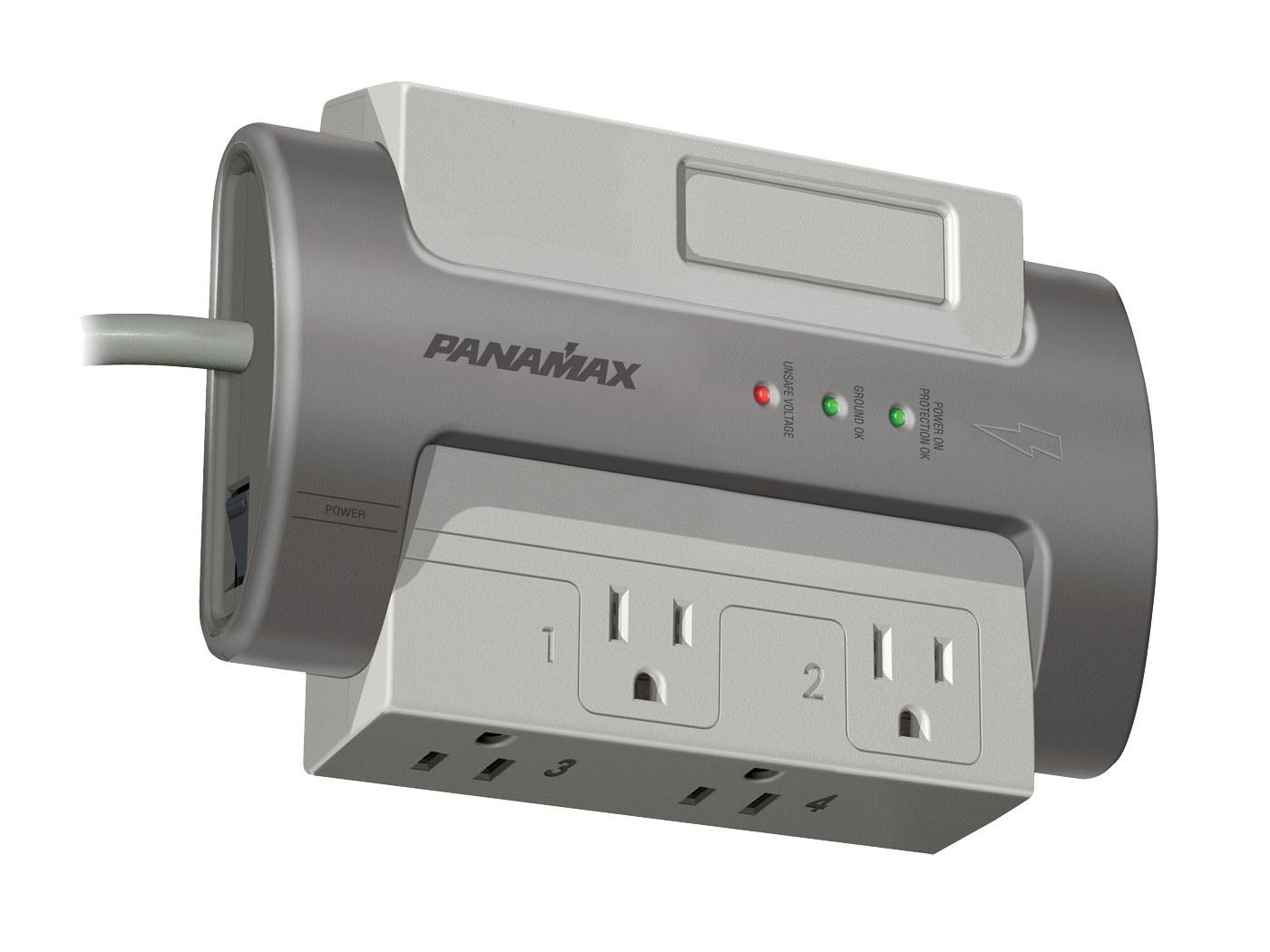

Download Manual Noise Filtration/Surge Protection For All Home/Office Equipment
Features
- Four AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accomodate System Expansion
Start typing to see results...
Product Questions? Ask Our Experts!
Free ground shipping on select $300+ orders in the contiguous US.
Mastercard, Visa, American Express, Discover, PayPal
We offer 30-Day money back guarantee of the purchase date.
Product Questions? Ask Our Experts!
Noise Filtration/Surge Protection For All Home/Office Equipment
Features
AC Power
| Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) | 500V |
| Thermal Fusing | Yes |
| Single Pulse Energy Dissipation | 1650 Joules |
| Response Time | < 1ns |
| Protection Modes | L-N, L-G, N-G |
| Protect or Disconnect™ Circuitry | Yes |
| Power Cord | 8 ft fixed |
| Plug Type | right angle, 45 degree offset |
| Peak Impulse Current | 52,000 Amps |
| Patented Power Management Circuit | Yes |
| Maximum Current Rating | 15 A (1800W) |
| Line Voltage | 120VAC, 50/60Hz |
| Initial Clamping Level | 200V Peak, 141V RMS |
| EMI/RFI Noise Filtration | 50 dB(100 KHz - 1MHz) |
| Auto-resetting Under-voltage shutoff | 90V ± 6V |
| Auto-resetting Over-voltage shutoff | 144V ± 8V |
General
| Lightning Protection | Yes |
| Weight | 2.00 lbs |
|---|
